Ignition System Inspection

1. Remove the fuel pump relay from main fuse block.

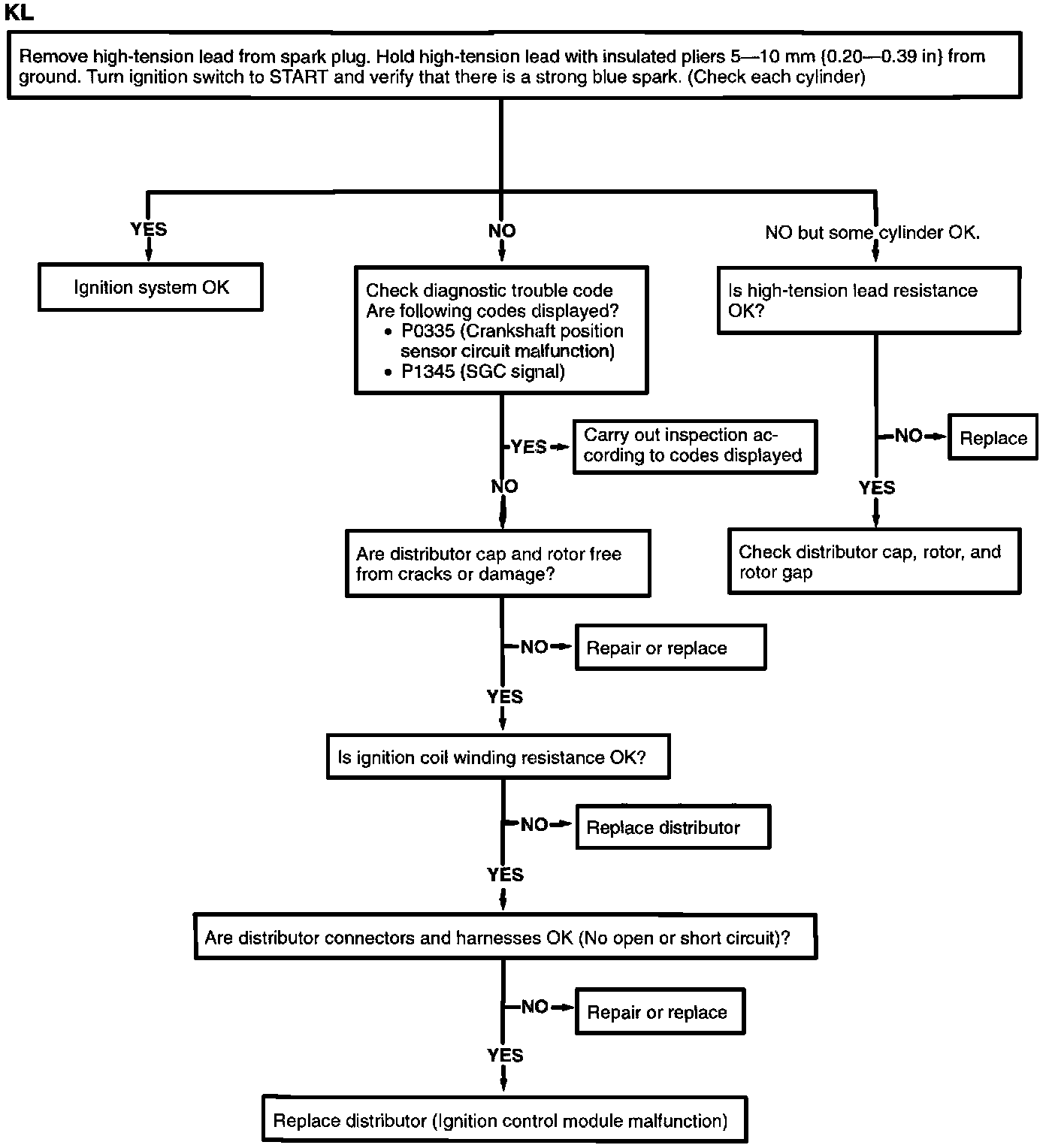

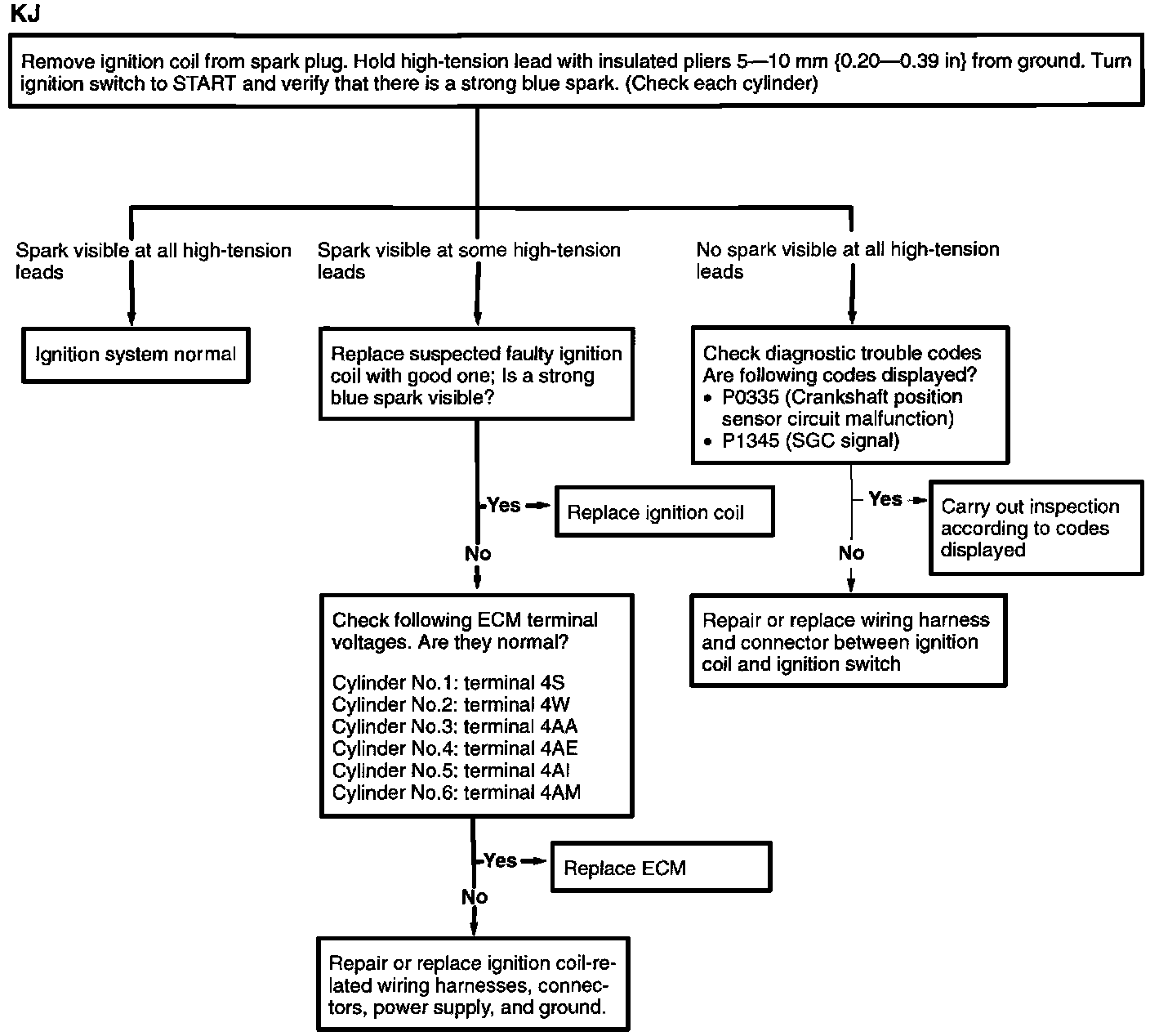

2. Check condition of connector and ignition coil (kJ). Check condition of connector, and high-tension leads (kL).
3. Inspect the ignition system as following procedure.

WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
