Control Units

CONTROL UNITS

Component Component Location

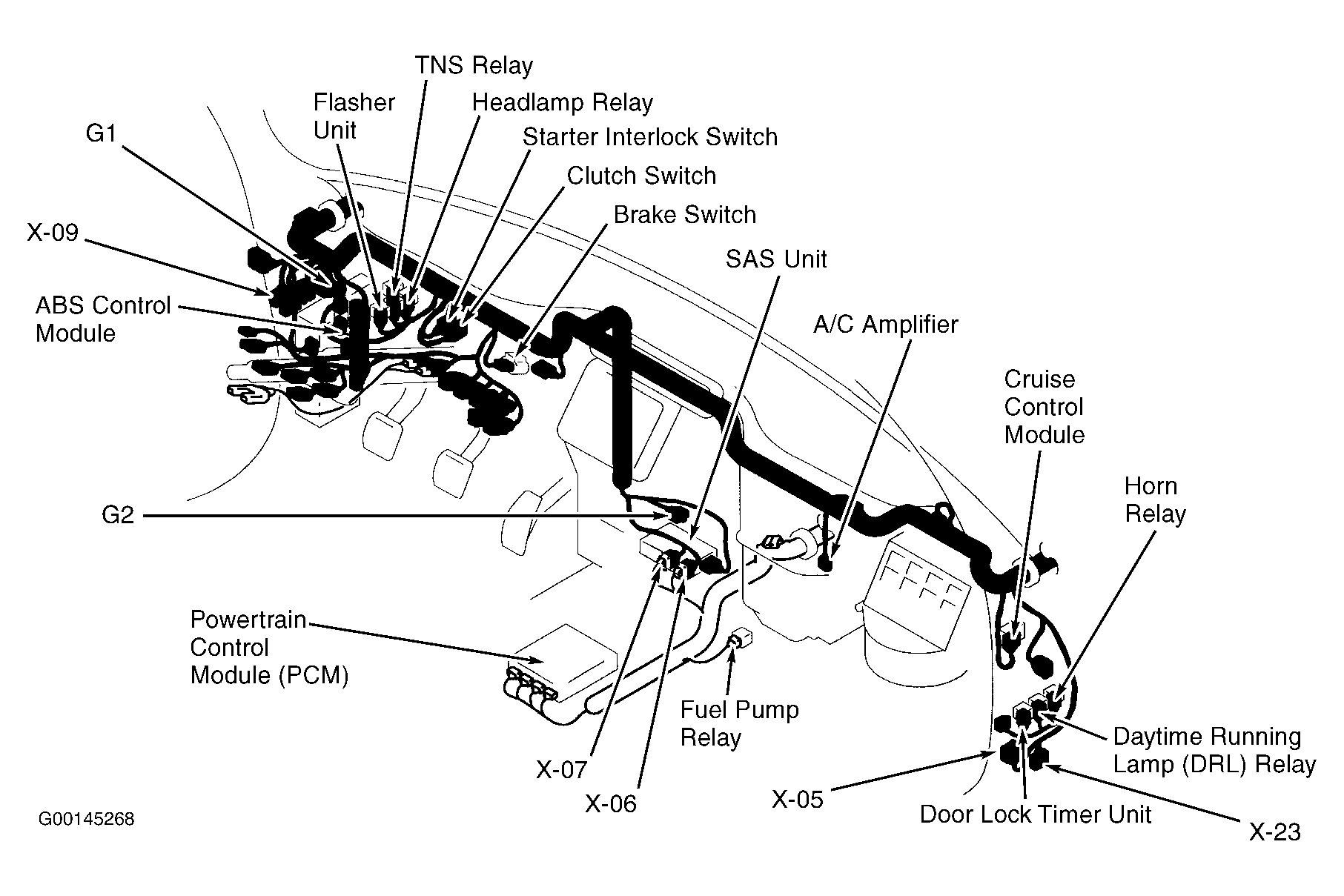

ABS Control Module Behind left side of dash. See Figure .
Cruise Control Module Behind right kick panel. See Figure .
Powertrain Control Module (PCM) Under center of dash. See Figure .
SAS Unit (Air Bag System) Behind center of dash. See Figure .
