PID Data Information

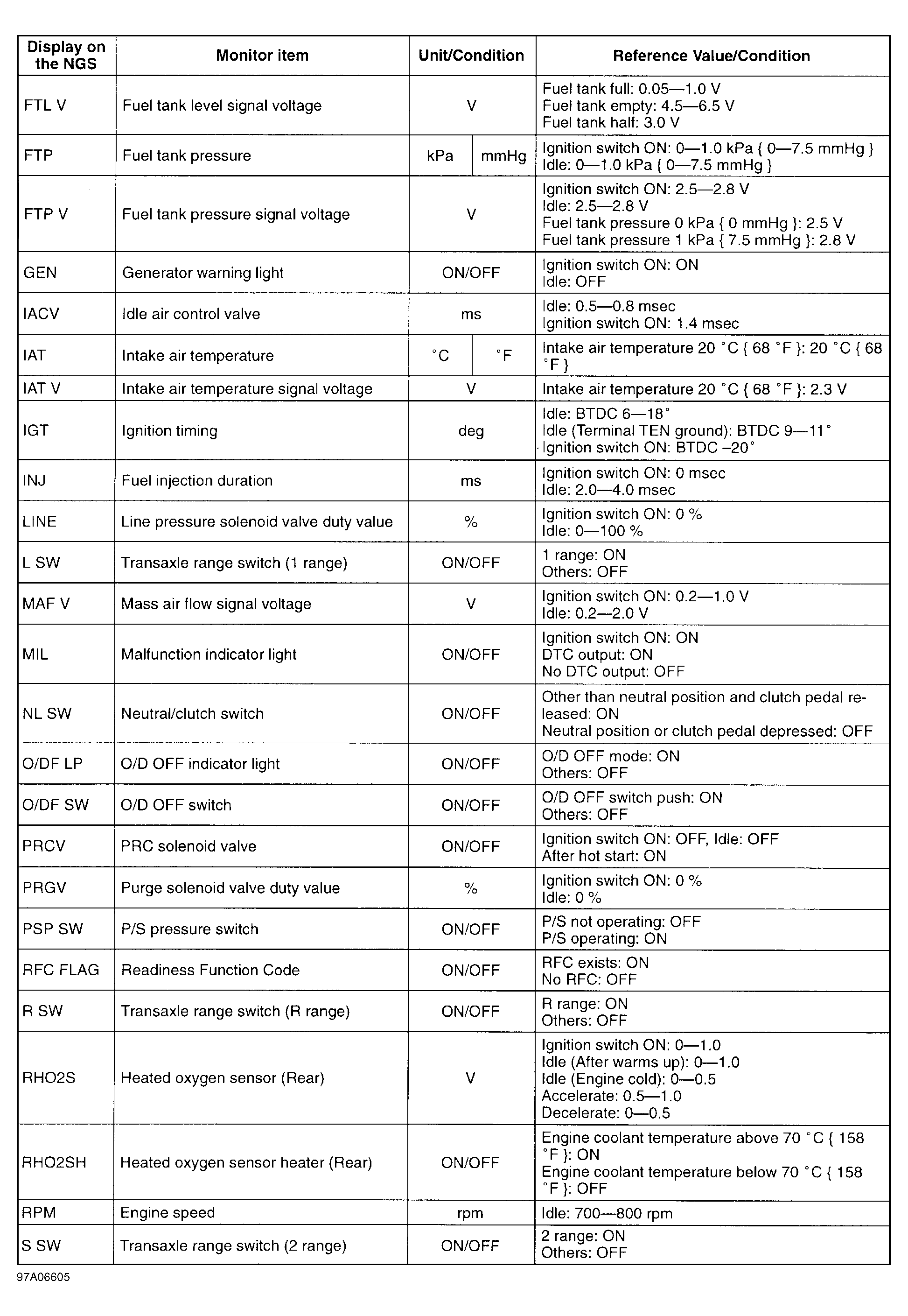

Fig 1: PID Data Information Table (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

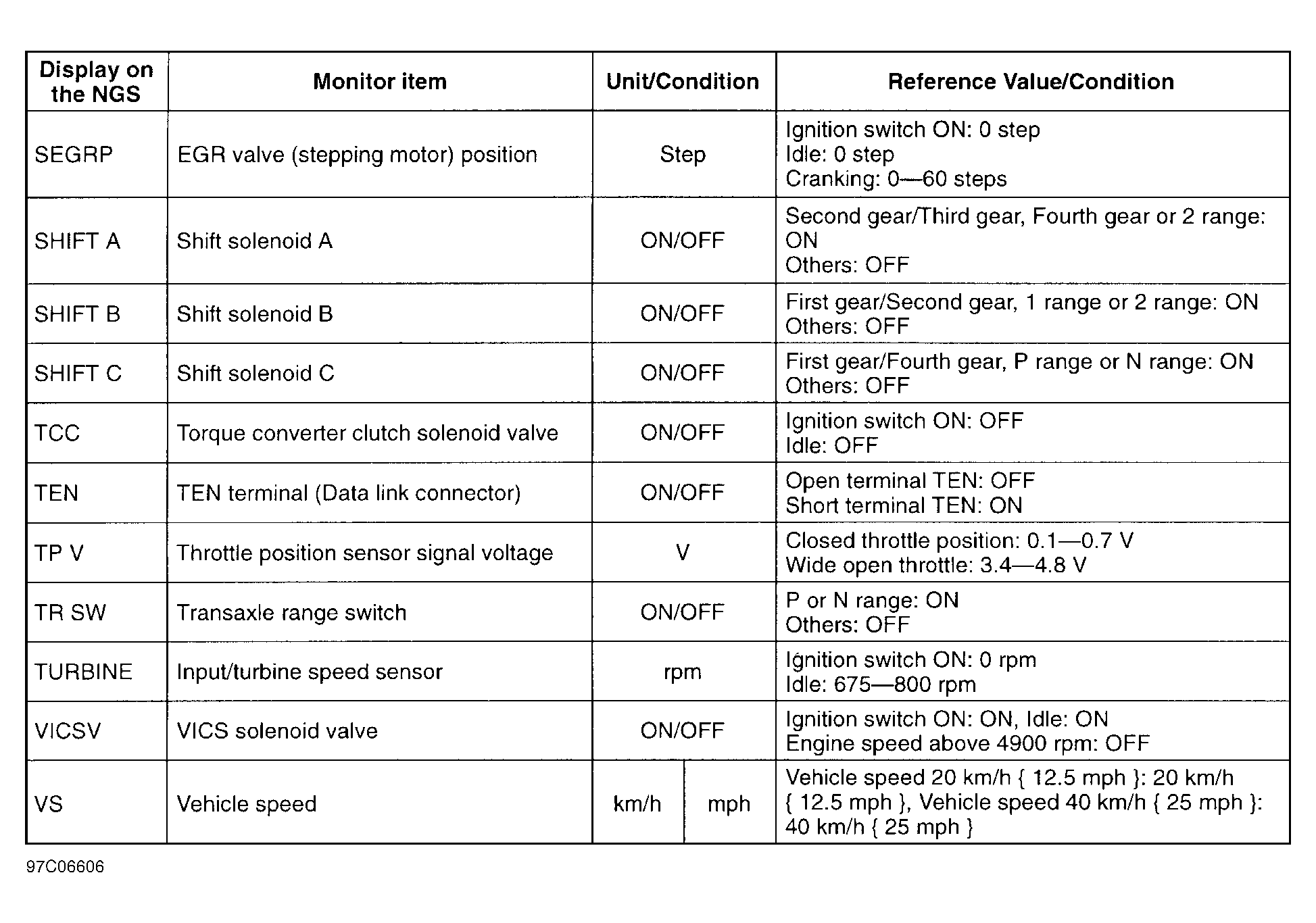

Fig 2: PID Data Information Table (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

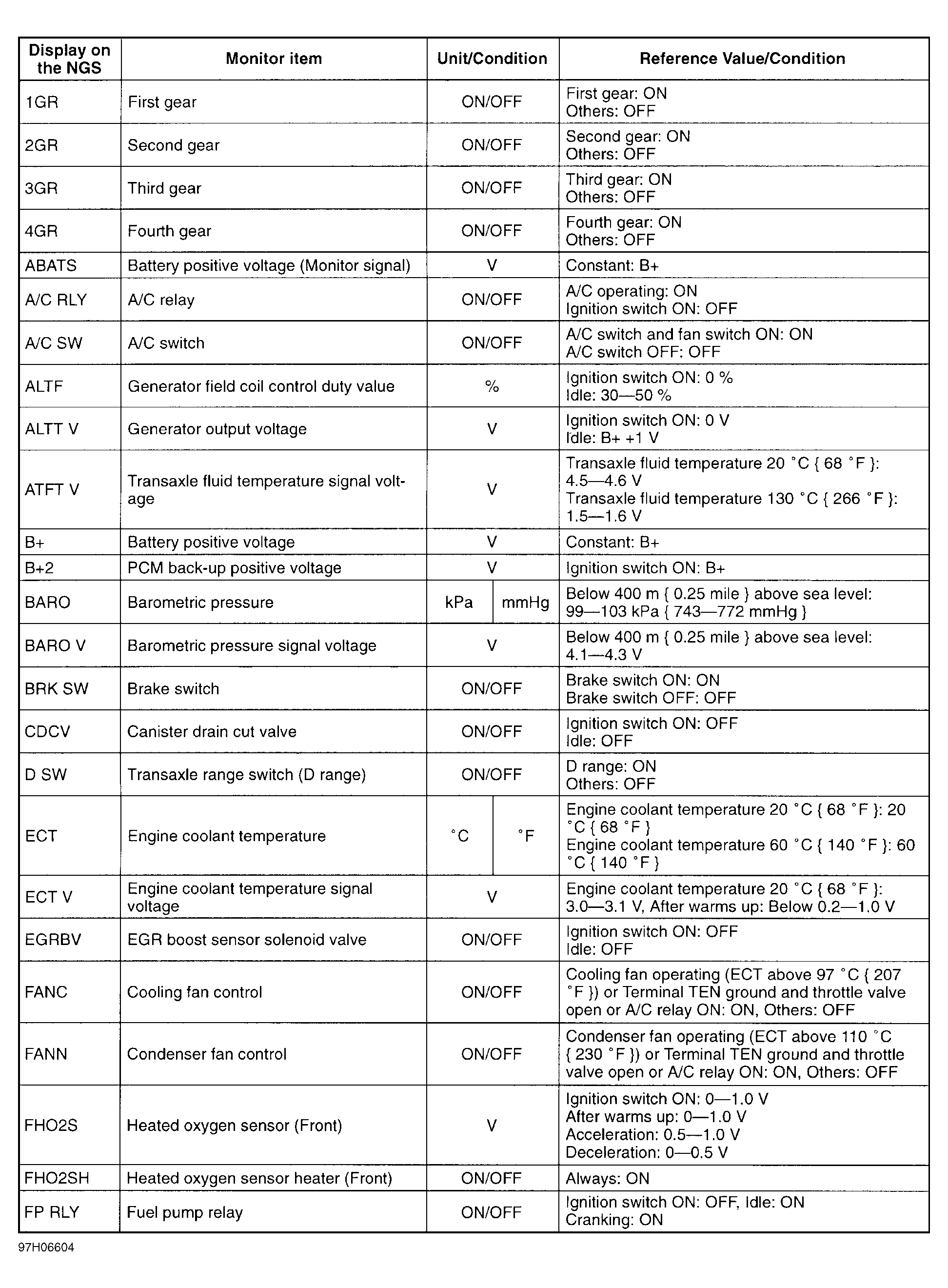

Fig 3: PID Data Information Table (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

CAUTION: Ensure ignition is off before disconnecting harness connector from any component or control module. If ECM replacement is instructed in following testing, always ensure ECM connectors and ground circuits are okay. If either are suspect, repair and repeat testing to confirm ECM malfunction.
