Dashboard Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Center panel module (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
2. Passenger-side air bag module (See DUAL-STAGE PASSENGER-SIDE AIR BAG MODULE .)
3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
4. A/C unit (See A/C UNIT REMOVAL/INSTALLATION .)
5. Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .)
Disassemble in the order indicated. See Fig 1.
Assemble in the reverse order of disassembly.

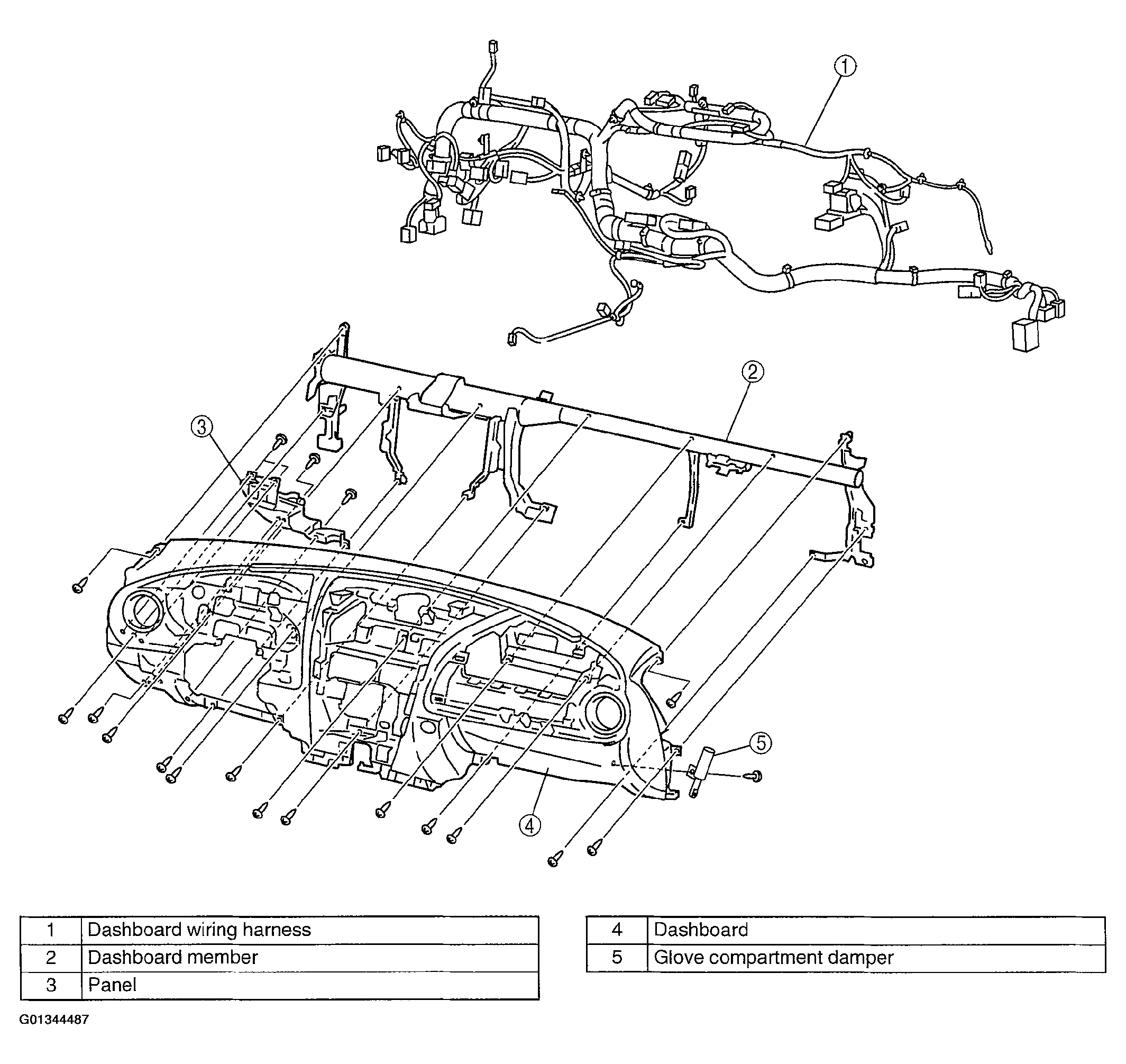

Fig 1: Assembling Dashboard
Courtesy of MAZDA MOTORS CORP.
