Ignition System Inspection

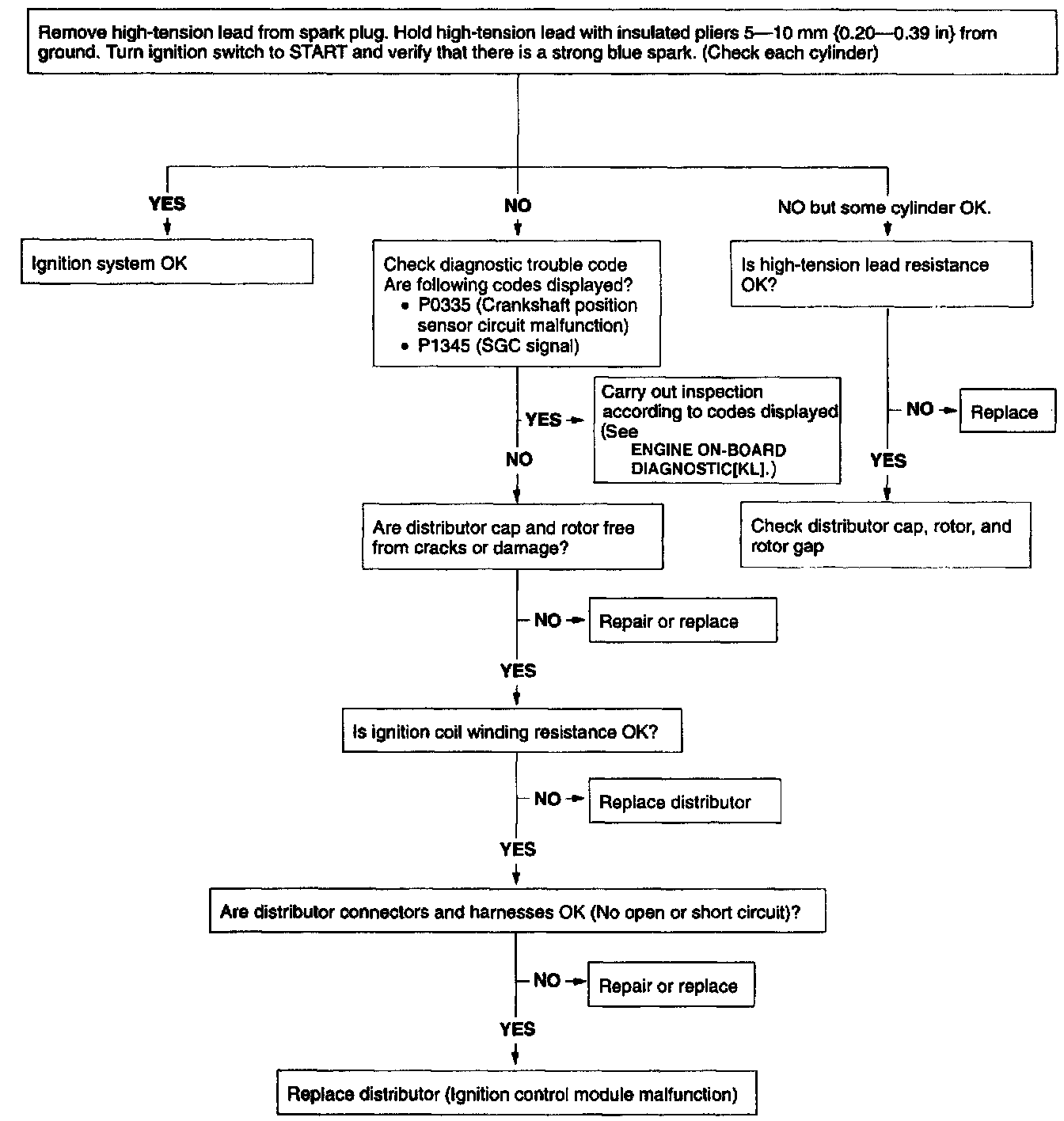

FLOW CHART

1. Remove the fuel pump relay from main fuse block.
2. Check condition of connector, and high-tension leads.
3. Inspect the ignition system as following procedure.




WARNING
- High voltage in the Ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
