Removal / Installation: Generator
WARNING:
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.
- Disconnect the negative battery cable.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

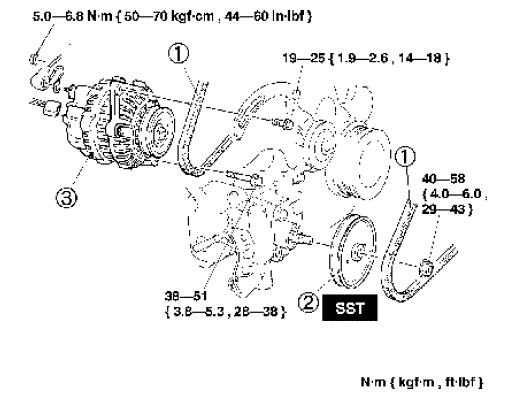

GENERATOR REMOVAL & INSTALLATION COMPONENTS
| 1 | Drive belt |
| 2 | P/S pump pulley Refer to POWER STEERING PUMP |
| 3 | Generator |
