Traction Control Module: Service and Repair

REMOVAL/INSTALLATION
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

ABS/TCS CONTROL MODULE INSPECTION

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

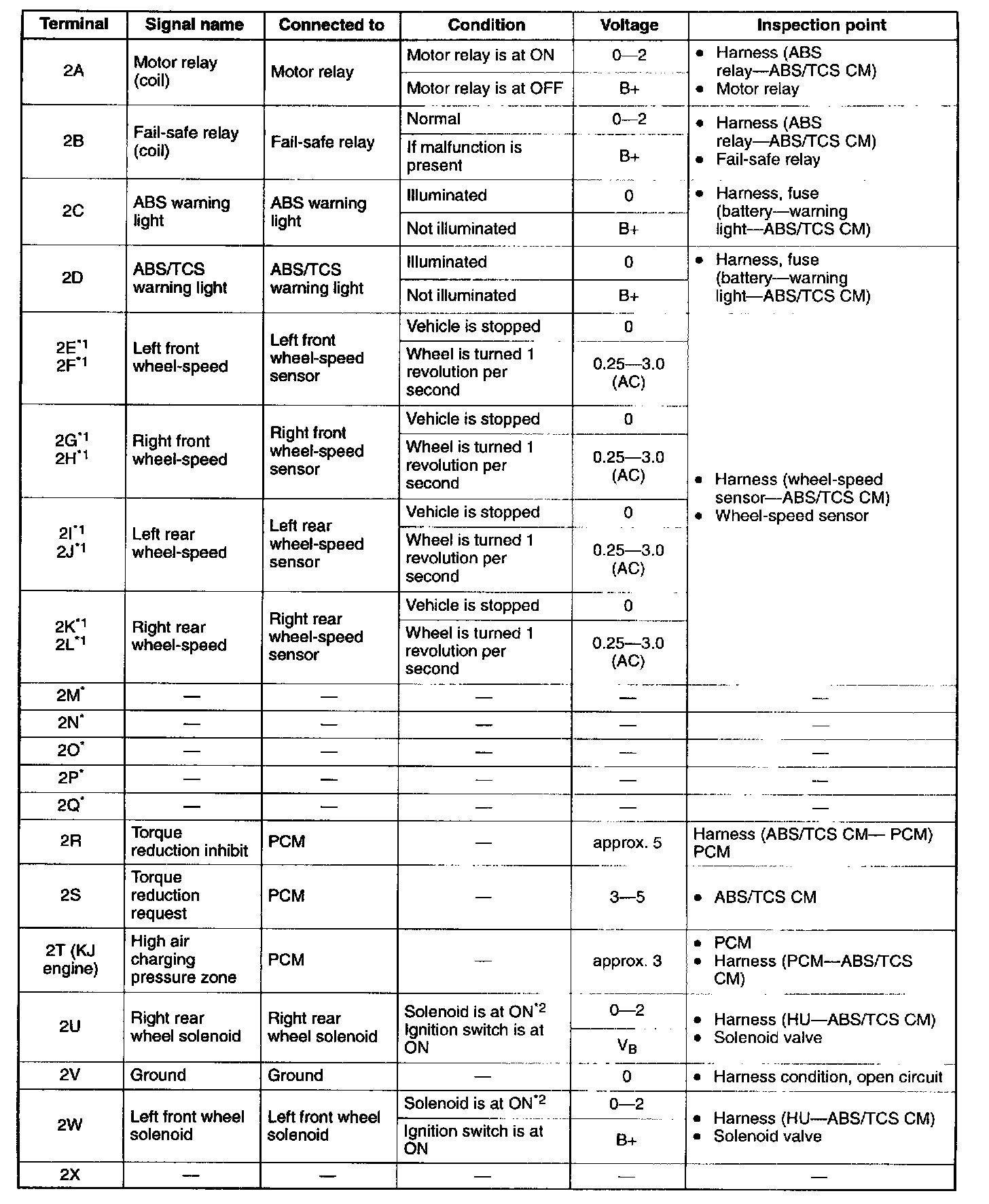

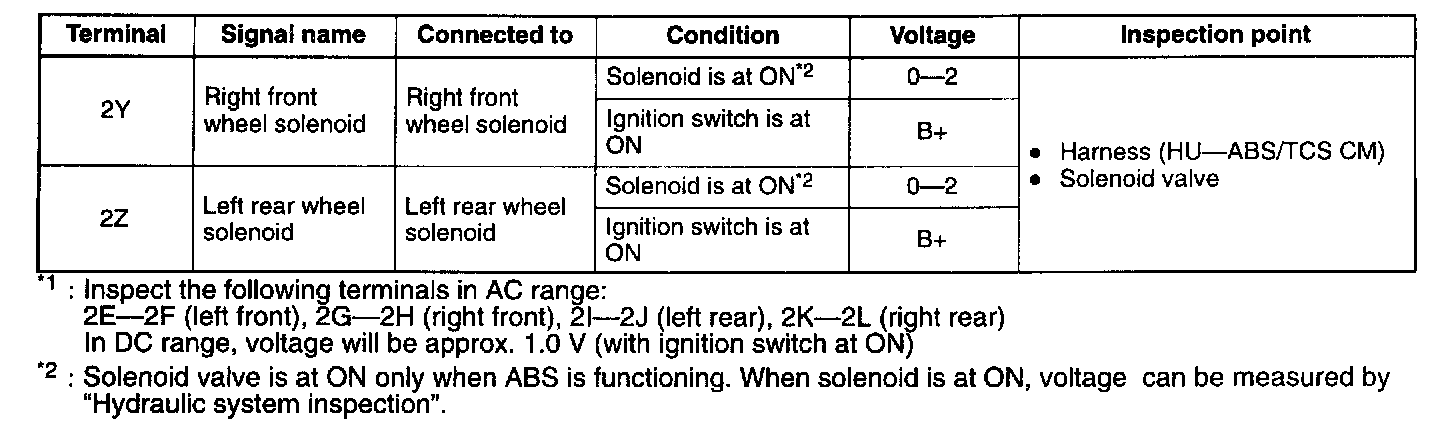

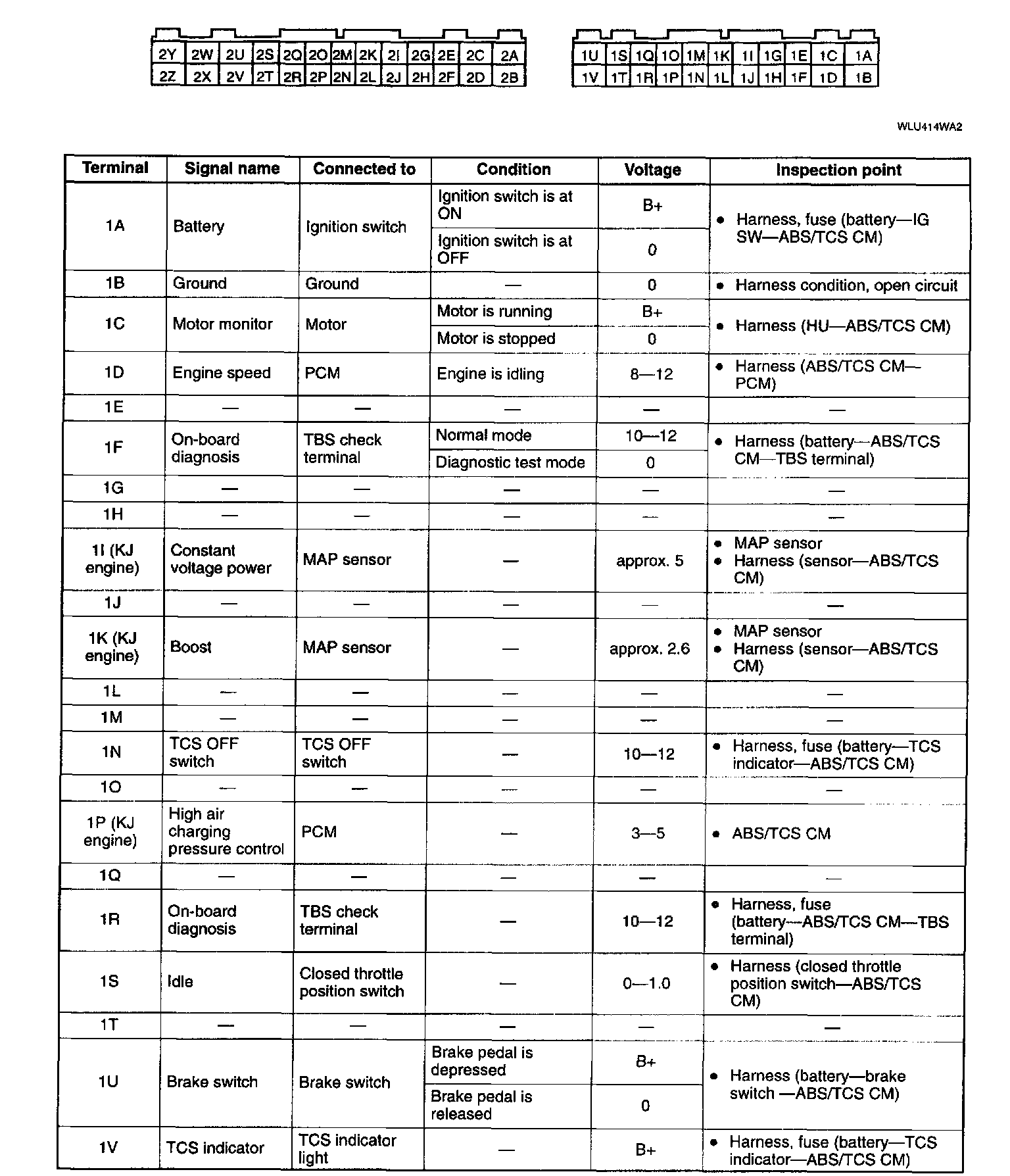

Terminal Voltage Chart (Reference Value)
(Ignition switch is at ON, and connector is connected unless indicated otherwise)
