Engine Control Module

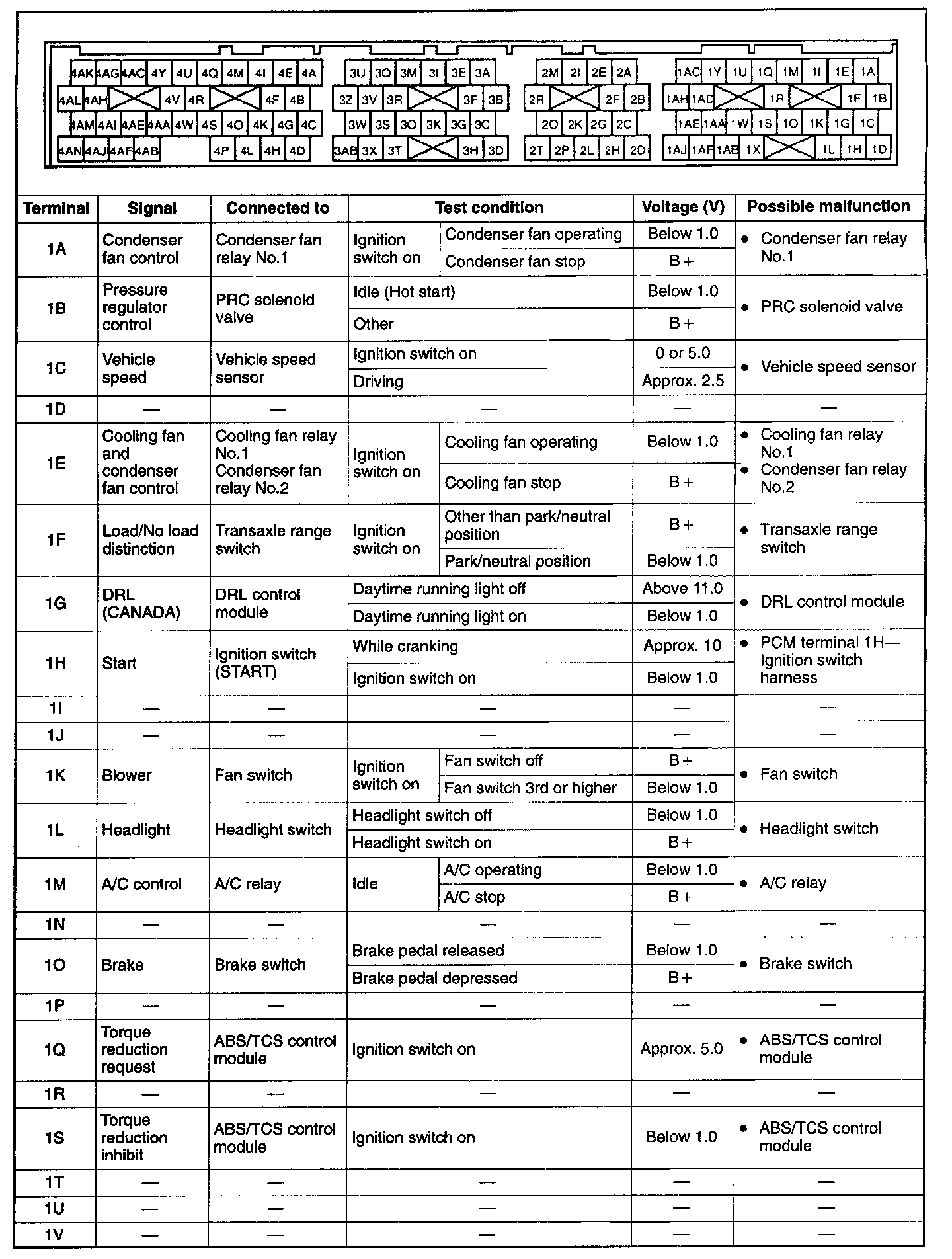

Terminal Voltage(Reference)

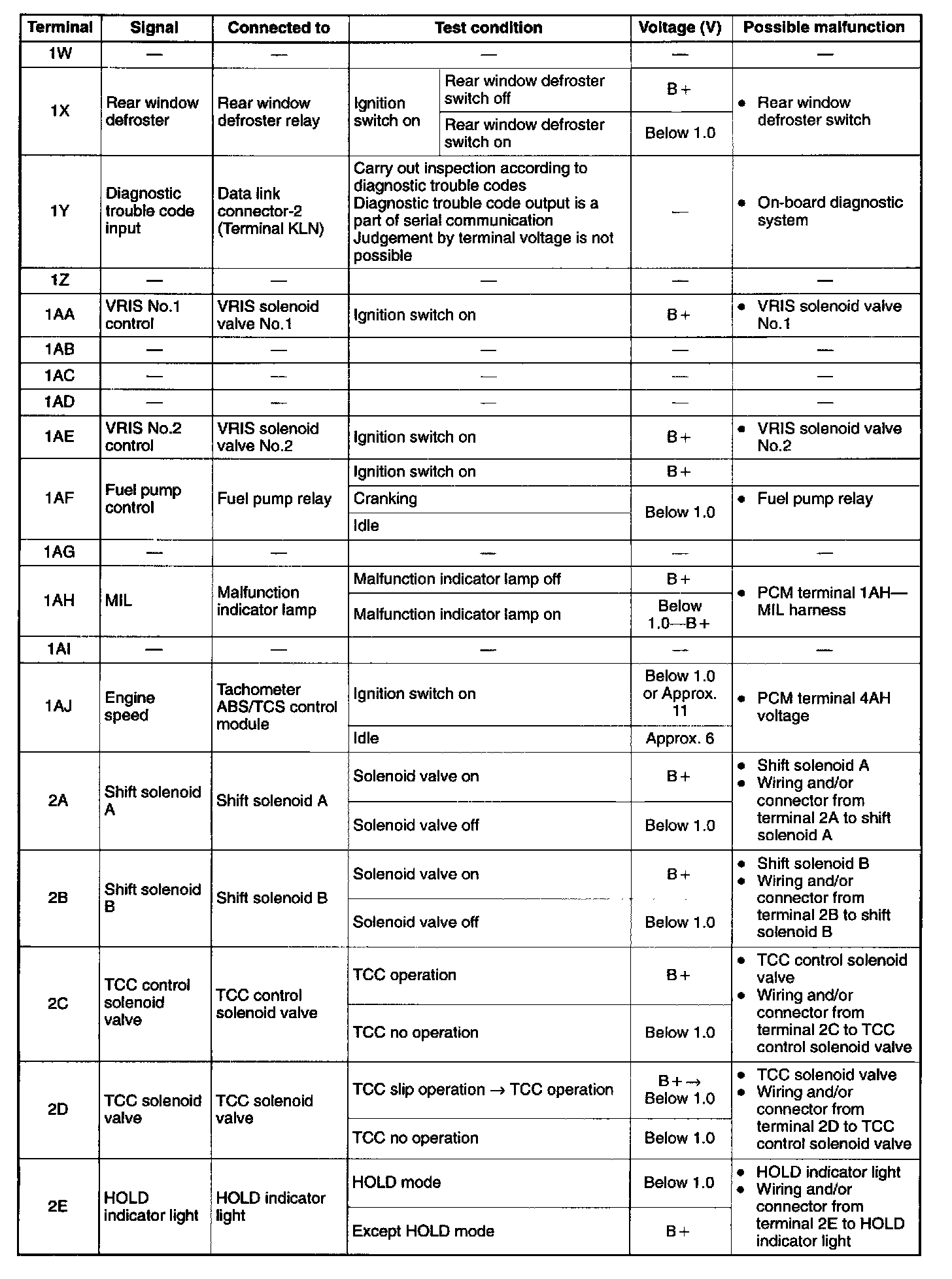

PART 1 OF 7:

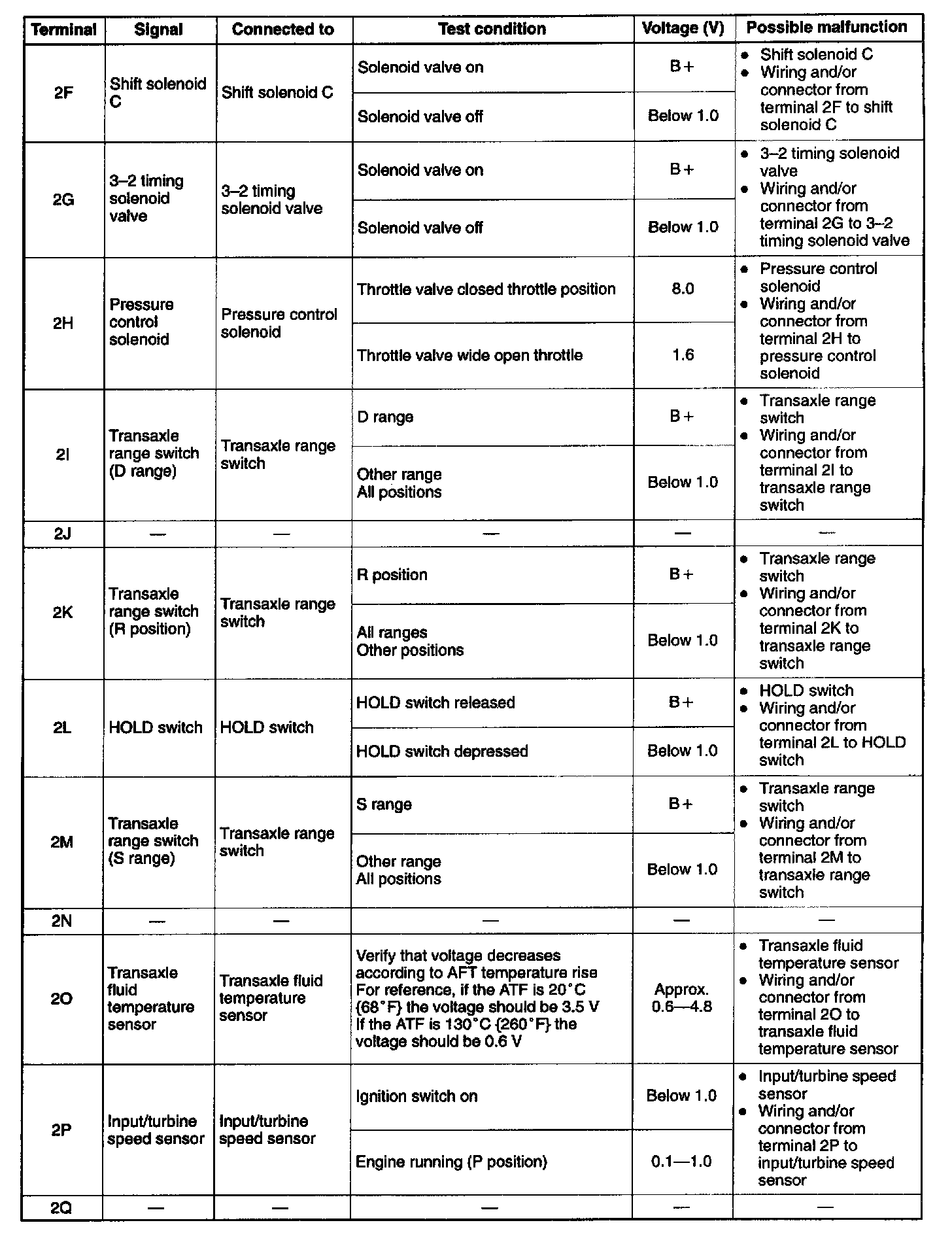

PART 2 OF 7:

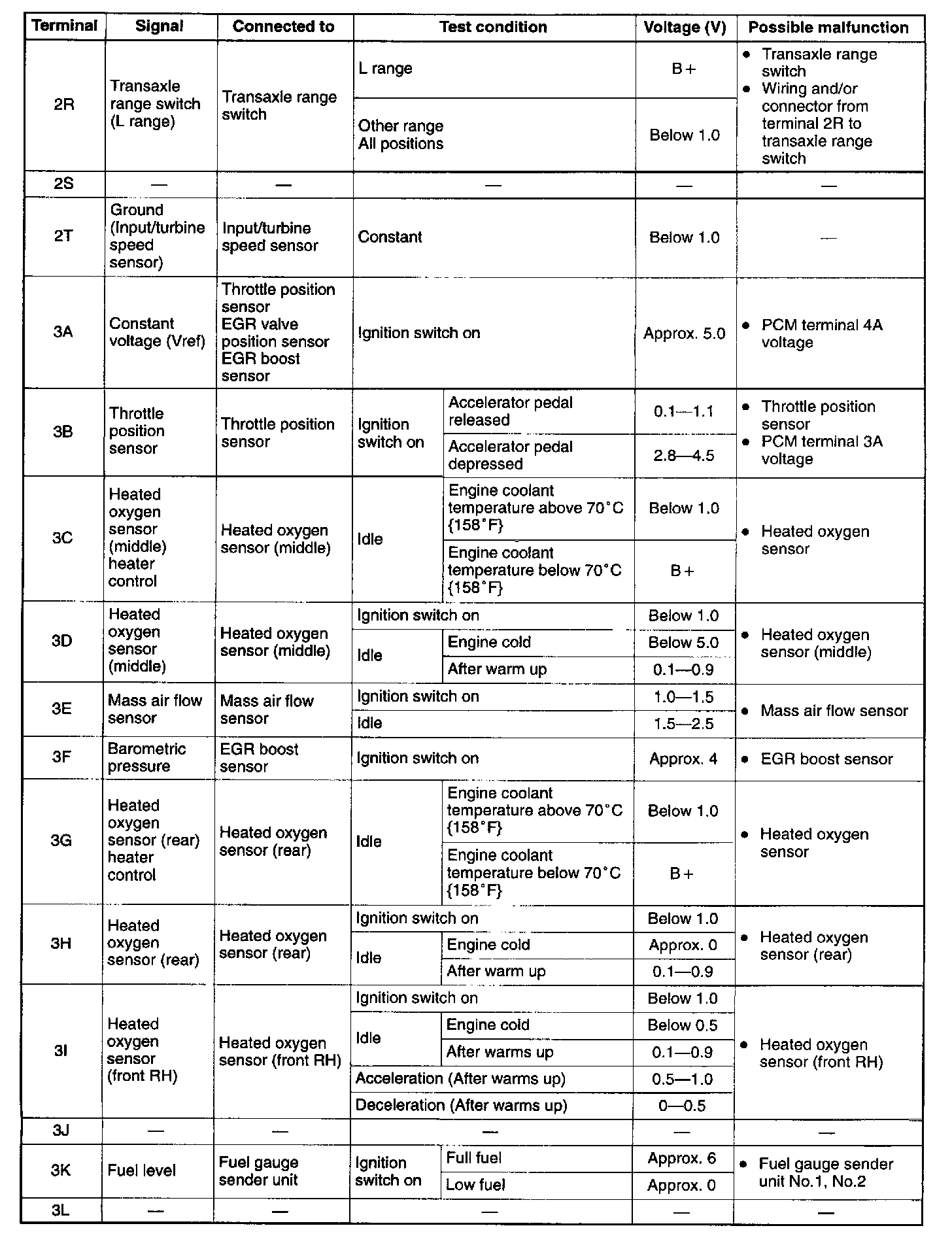

PART 3 OF 7:

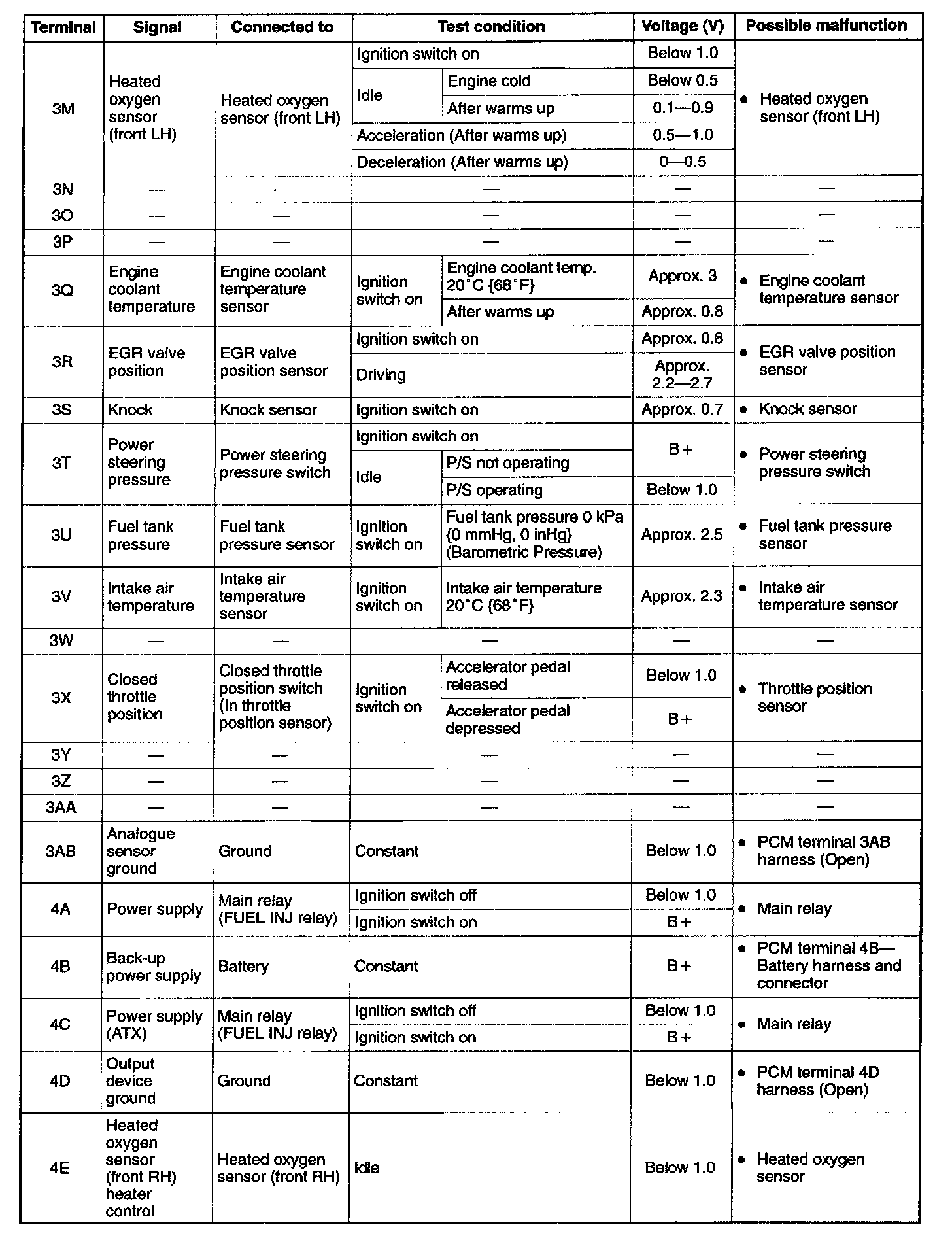

PART 4 OF 7:

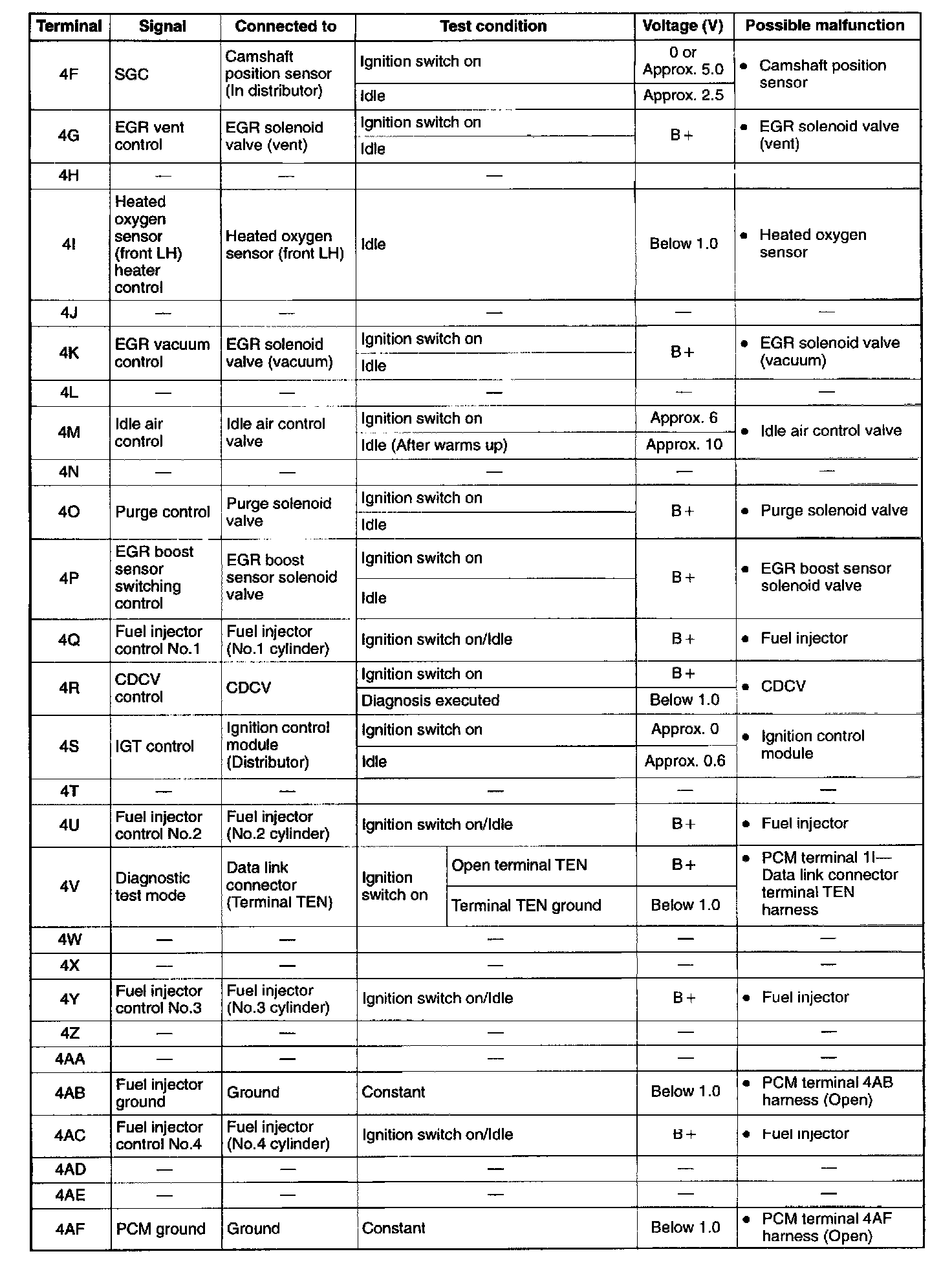

PART 5 OF 7:





PART 6 OF 7:

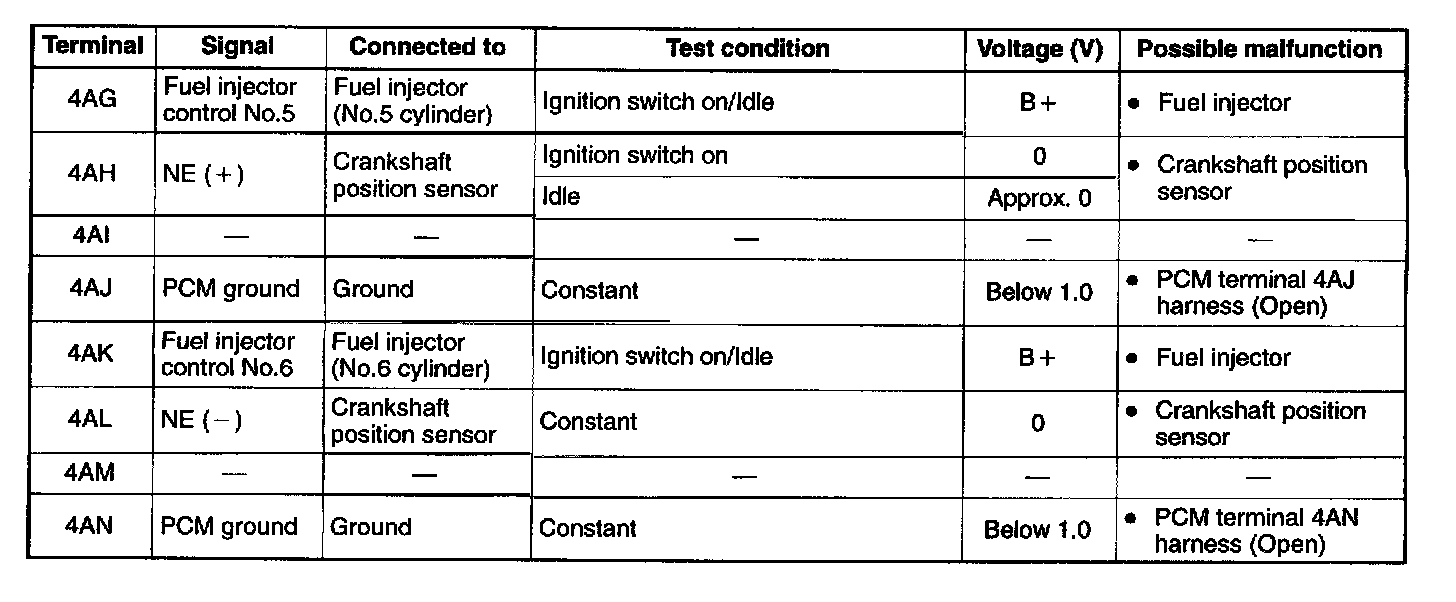

PART 7 OF 7:
