Ignition System Inspection

1. Remove the fuel pump relay from main fuse block.
2. Check condition of connector, and high-tension leads.

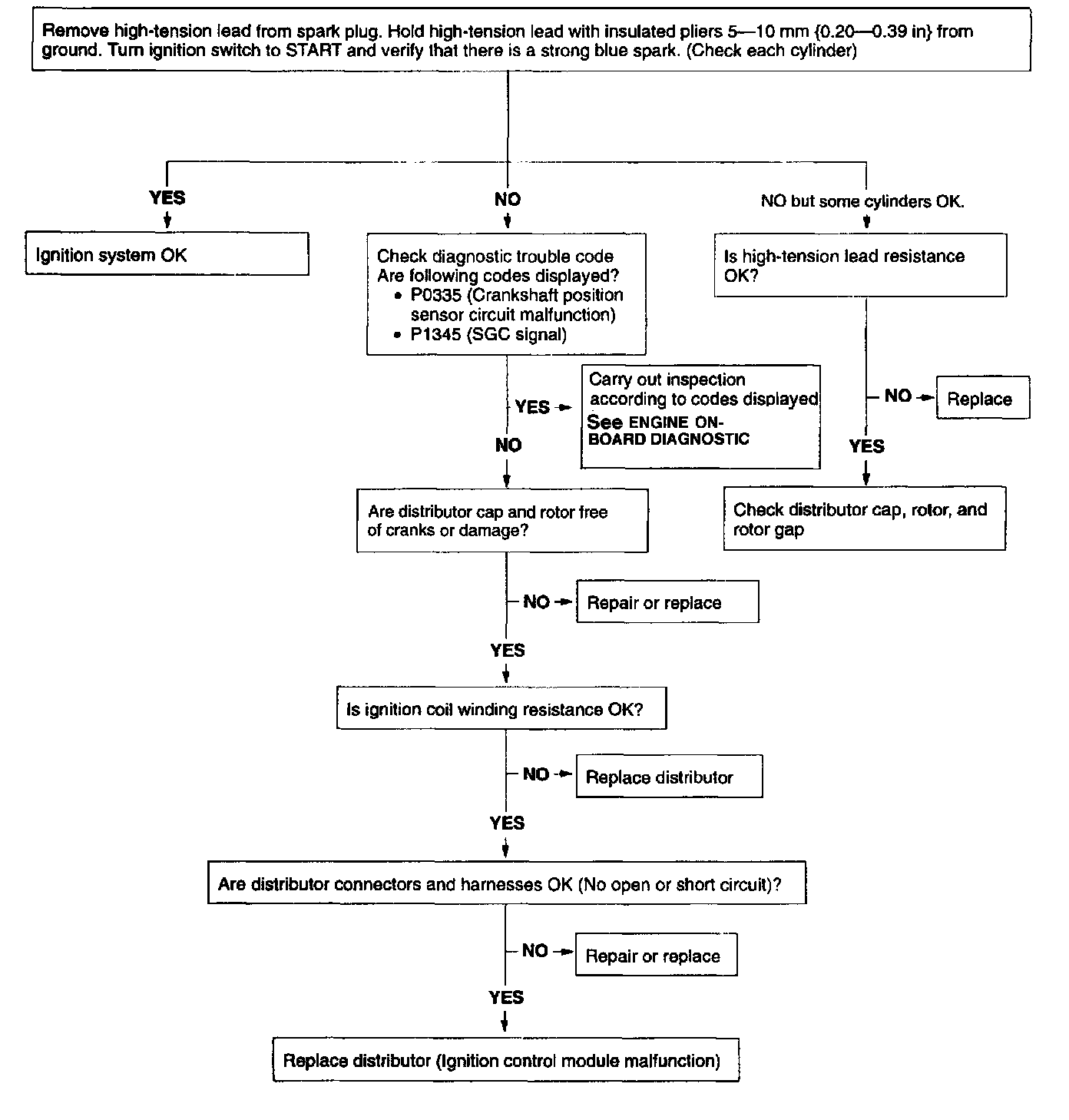

3. Inspect the ignition system according to the procedure.

WARNING: High voltage in the Ignition system can cause strong electrical shock. Avoid direct contact with the vehicle body during the following spark test.
