Emission Control Systems: Service and Repair

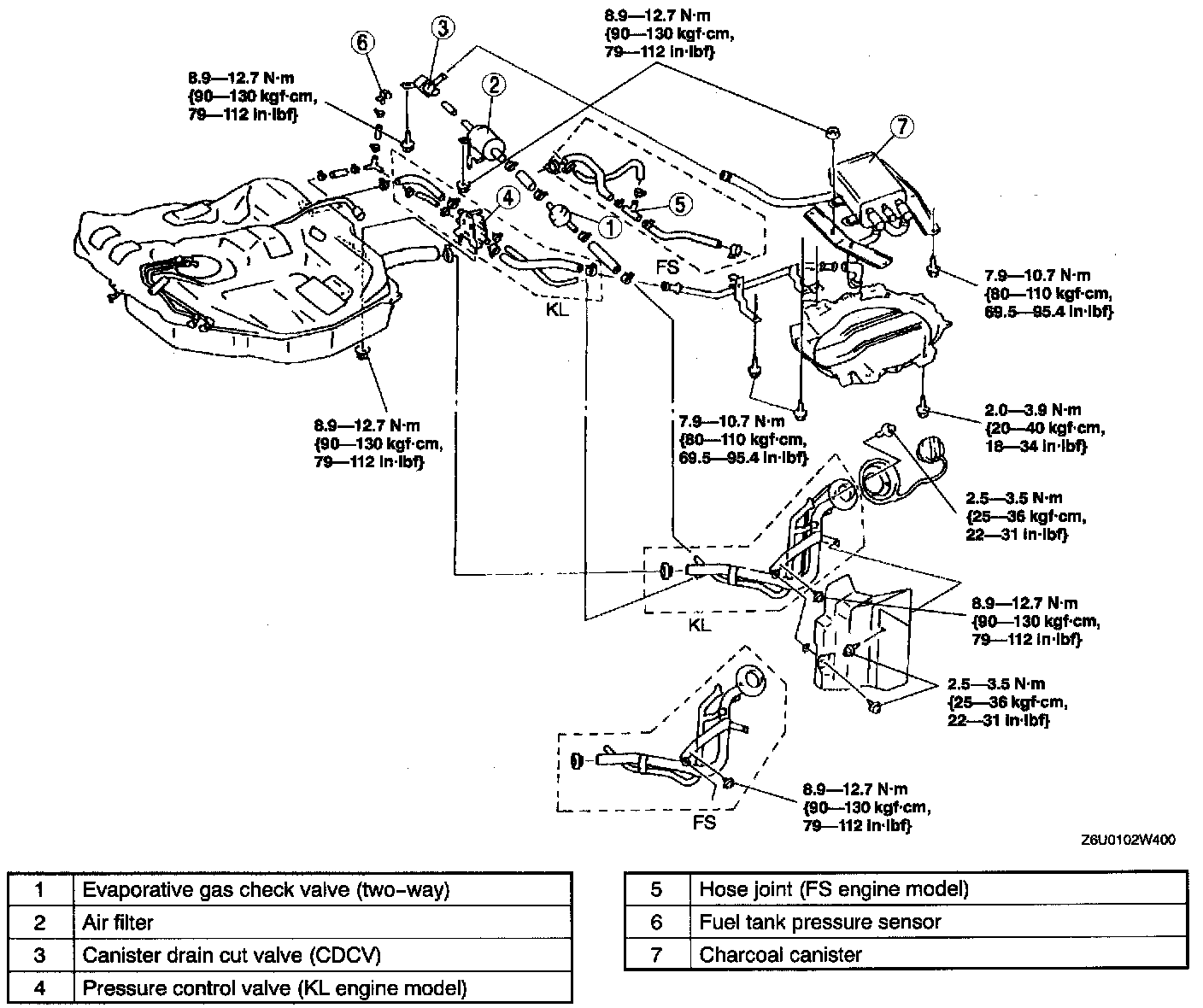

EMISSION SYSTEM (FUEL TANK SIDE) COMPONENT REMOVAL/INSTALLATION

1. Remove the fuel tank.




2. Remove the components indicated in the table.
3. Install in the reverse order of removal.
