Torque Specifications


TIGHTENING TORQUE

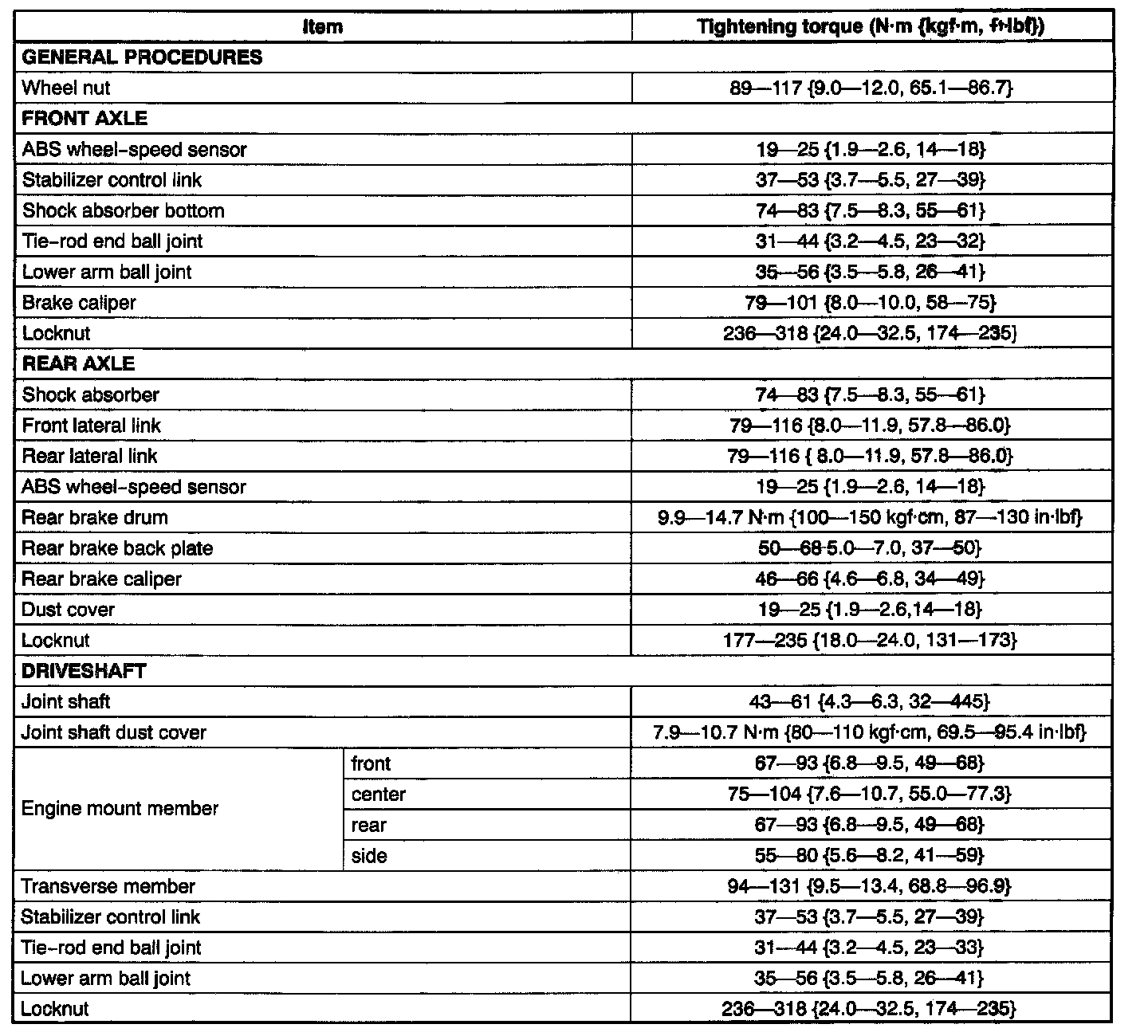

Driveline/Axle

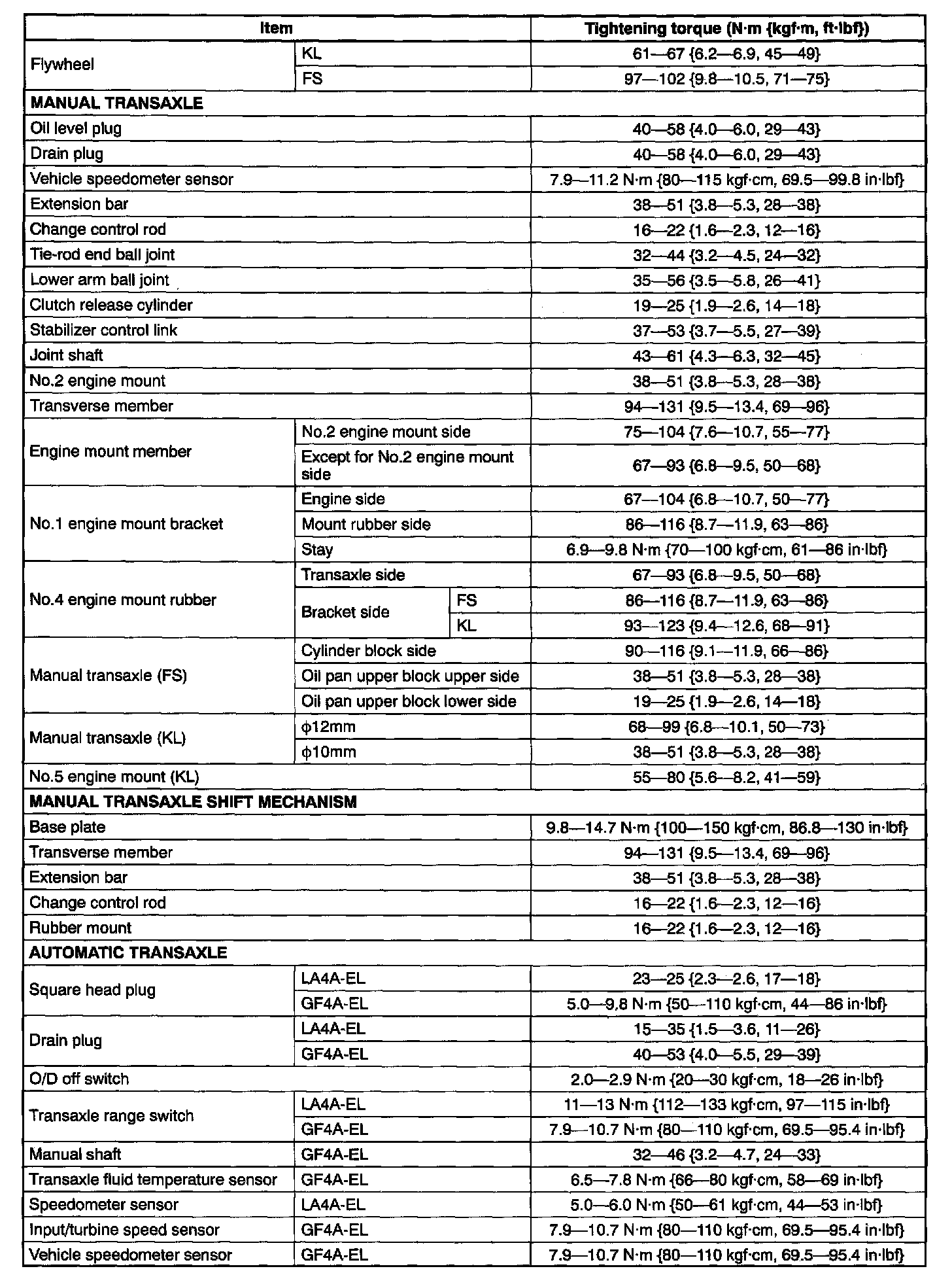

Clutch, Manual and Automatic Transaxle (Part 1 of 2)

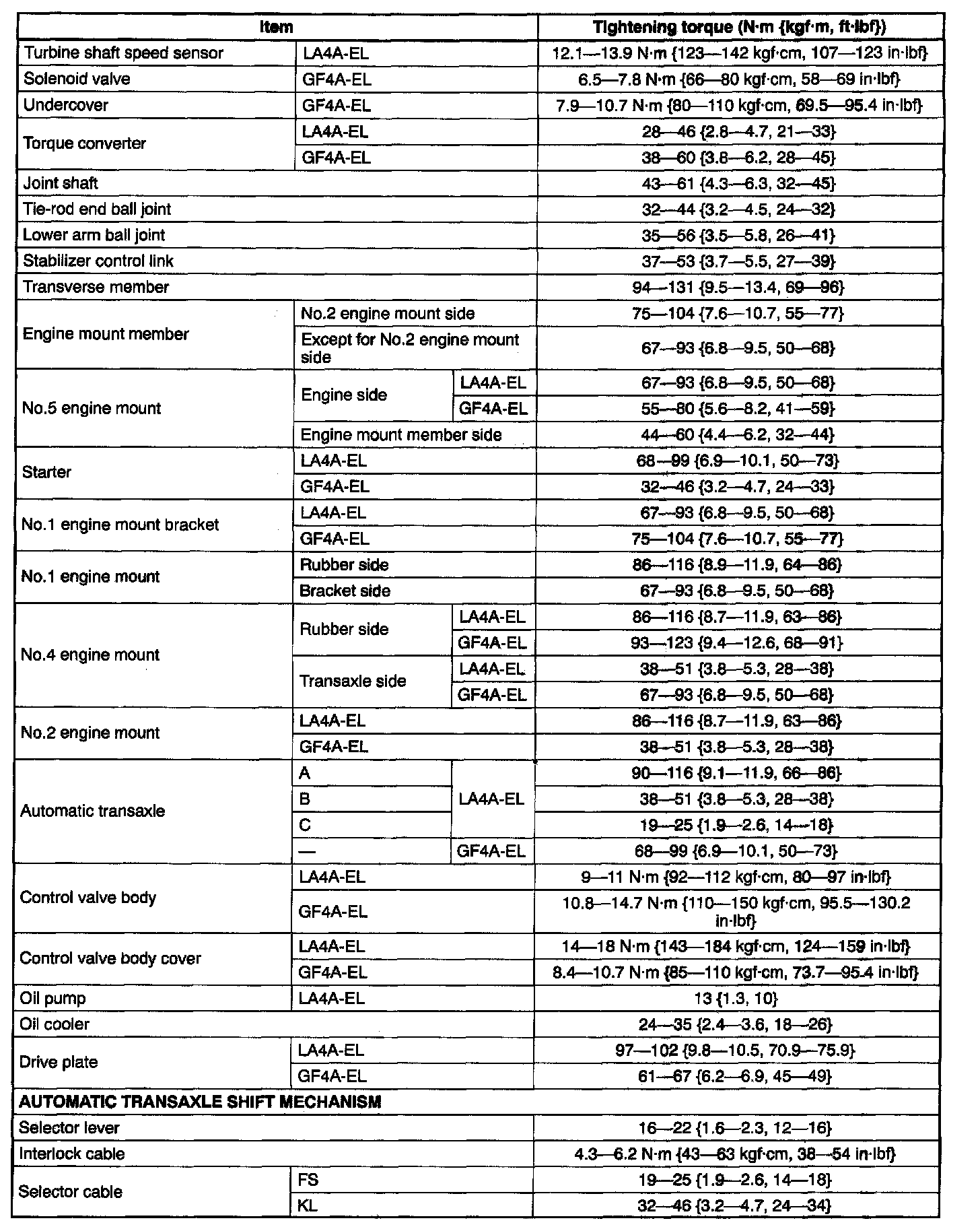

Clutch, Manual and Automatic Transaxle (Part 2 of 3)





Clutch, Manual and Automatic Transaxle (Part 3 of 3)
