DTC C1118: Torque Reduction (Request) Signal Line

Diagnostic Procedure

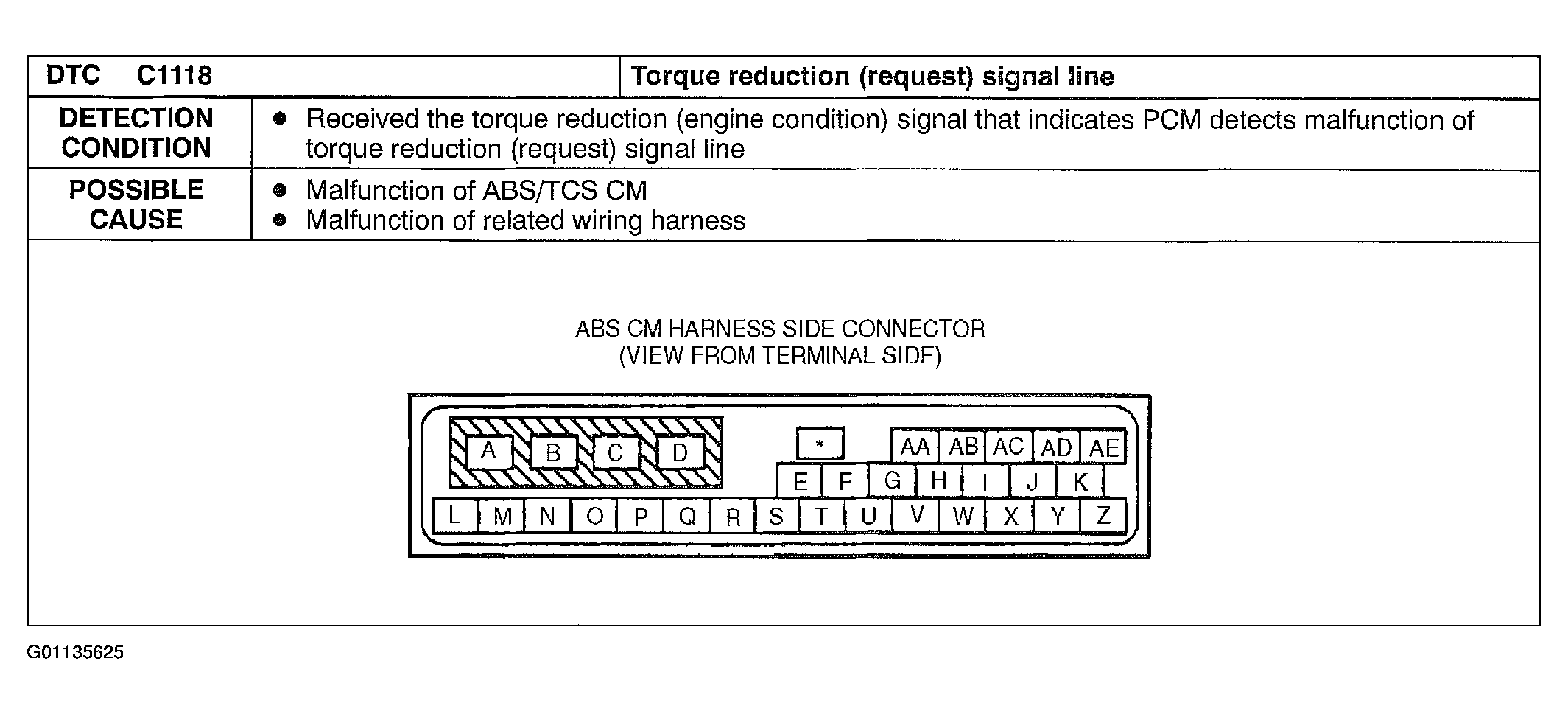

Fig 1: DTC C1118 Detection Condition & Possible Causes
G01135625Courtesy of MAZDA MOTORS CORP.

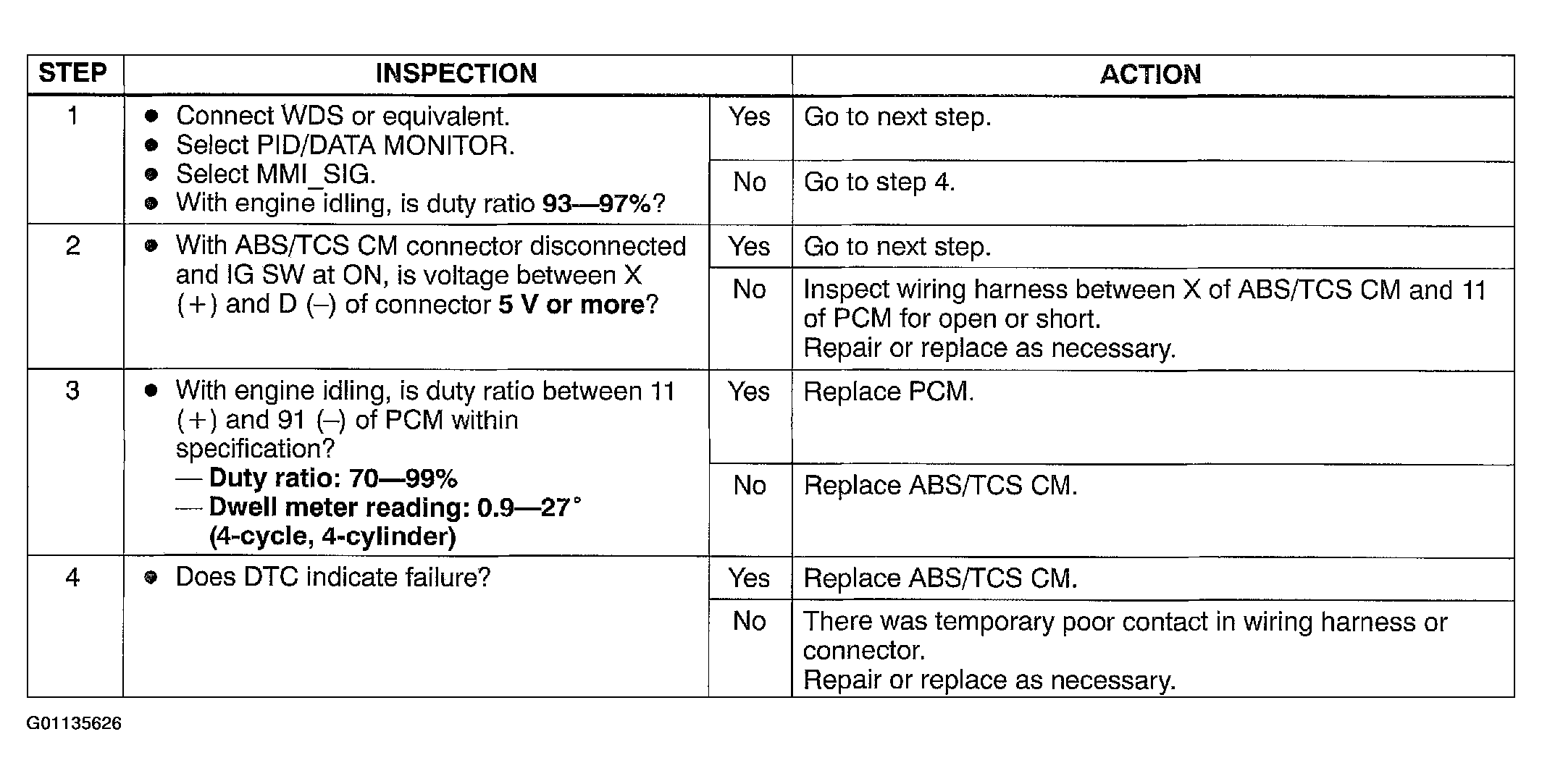

Fig 2: DTC C1118 Inspection & Action
G01135626Courtesy of MAZDA MOTORS CORP.
