Parking Brake Removal/Installation

  1. Remove the rear console.
  2. Remove the exhaust pipe insulator bolts.
  3. Remove in the order indicated in Fig 1 .
  4. Install in the reverse order of removal.
  5. Adjust the parking brake stroke.

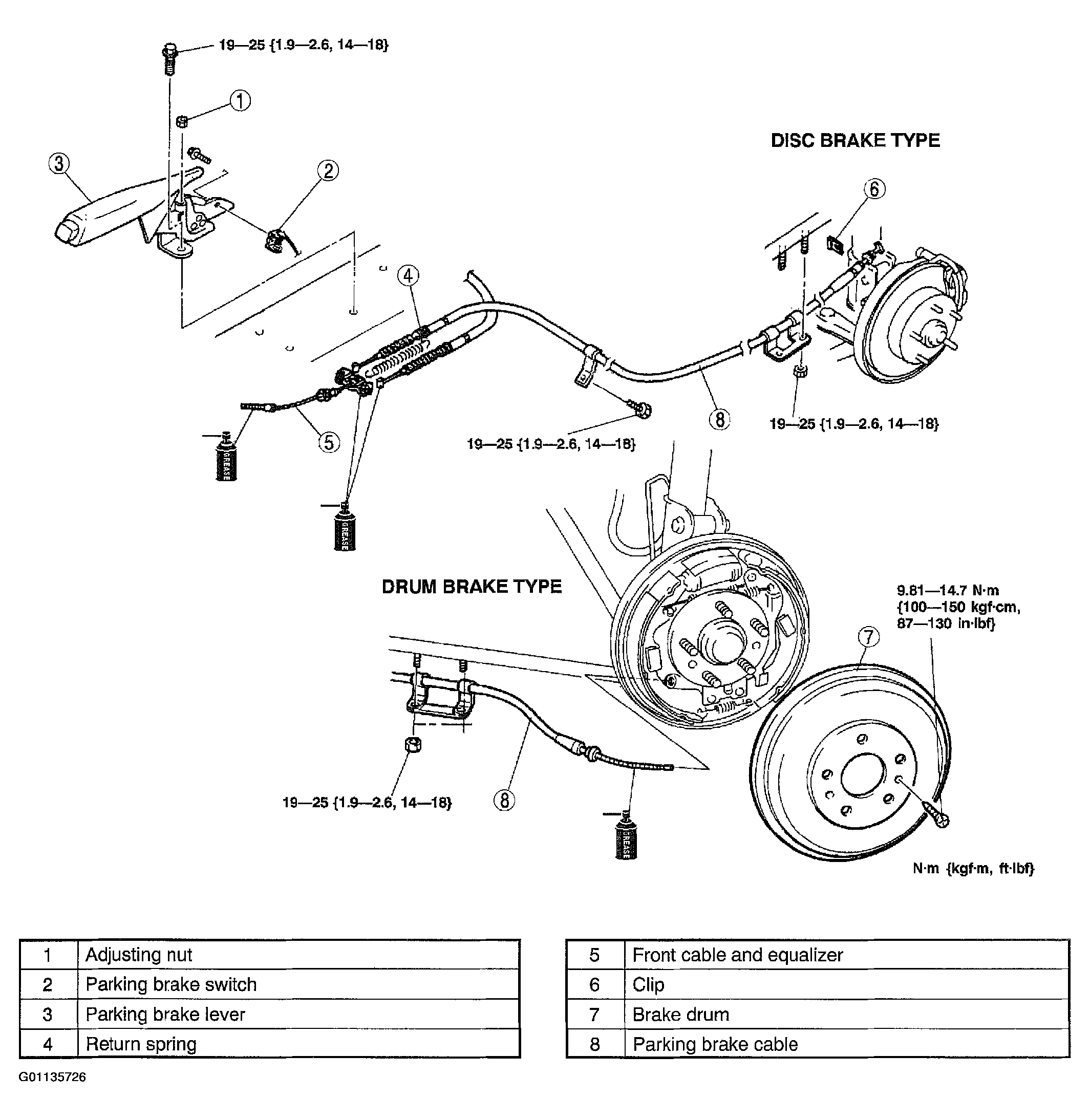

    Fig 1: Removing/Installing Parking Brake
    G01135726Courtesy of MAZDA MOTORS CORP.
