Main Switch

Disconnect the negative battery cable.
Remove the driver's side front door trim. See FRONT DOOR TRIM .
Remove in the order indicated in the illustration.

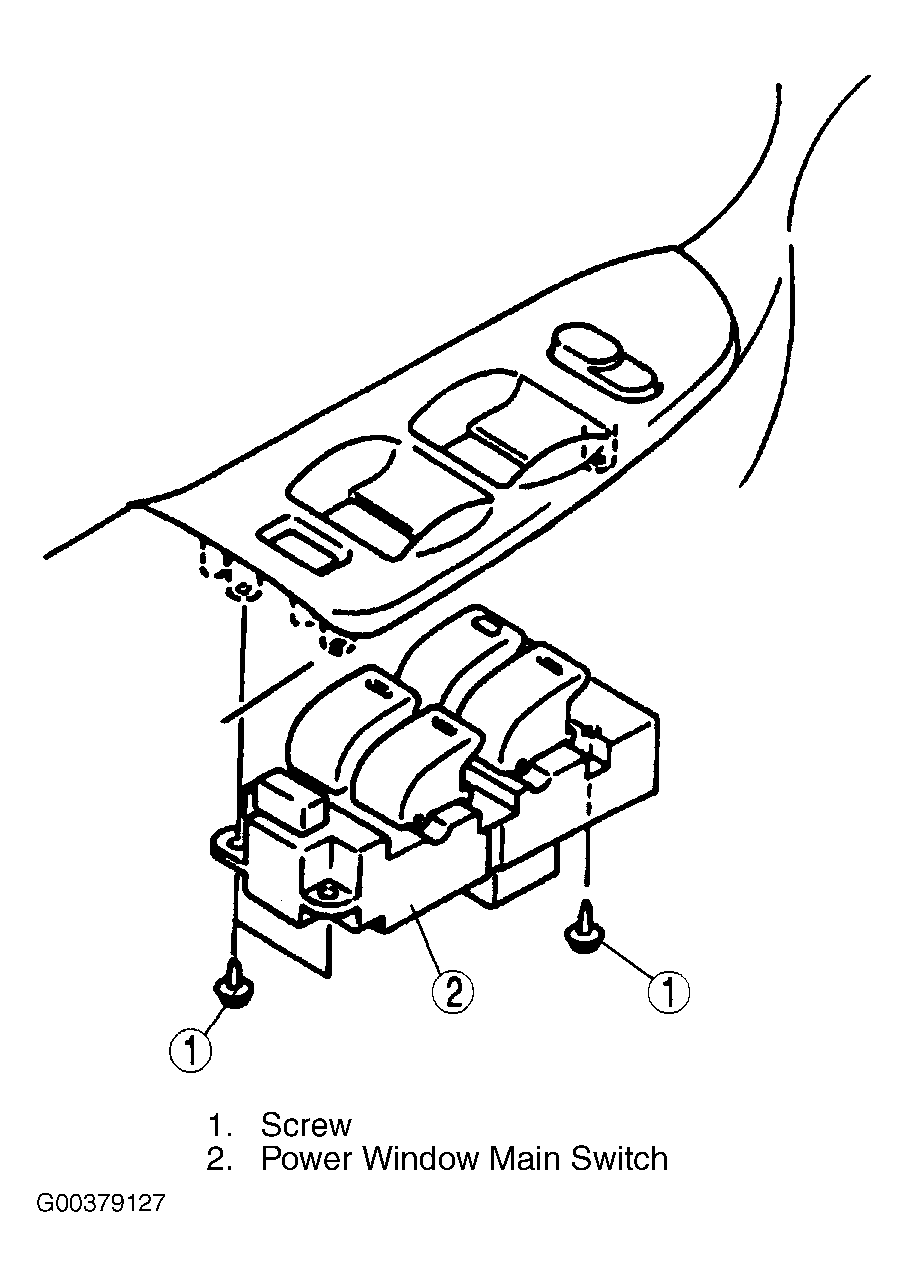

Fig 1: Removing Main Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
