Rear Power Window Regulator

  1. Remove the rear door glass. See REAR DOOR GLASS AND GUIDE  .
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the illustration.

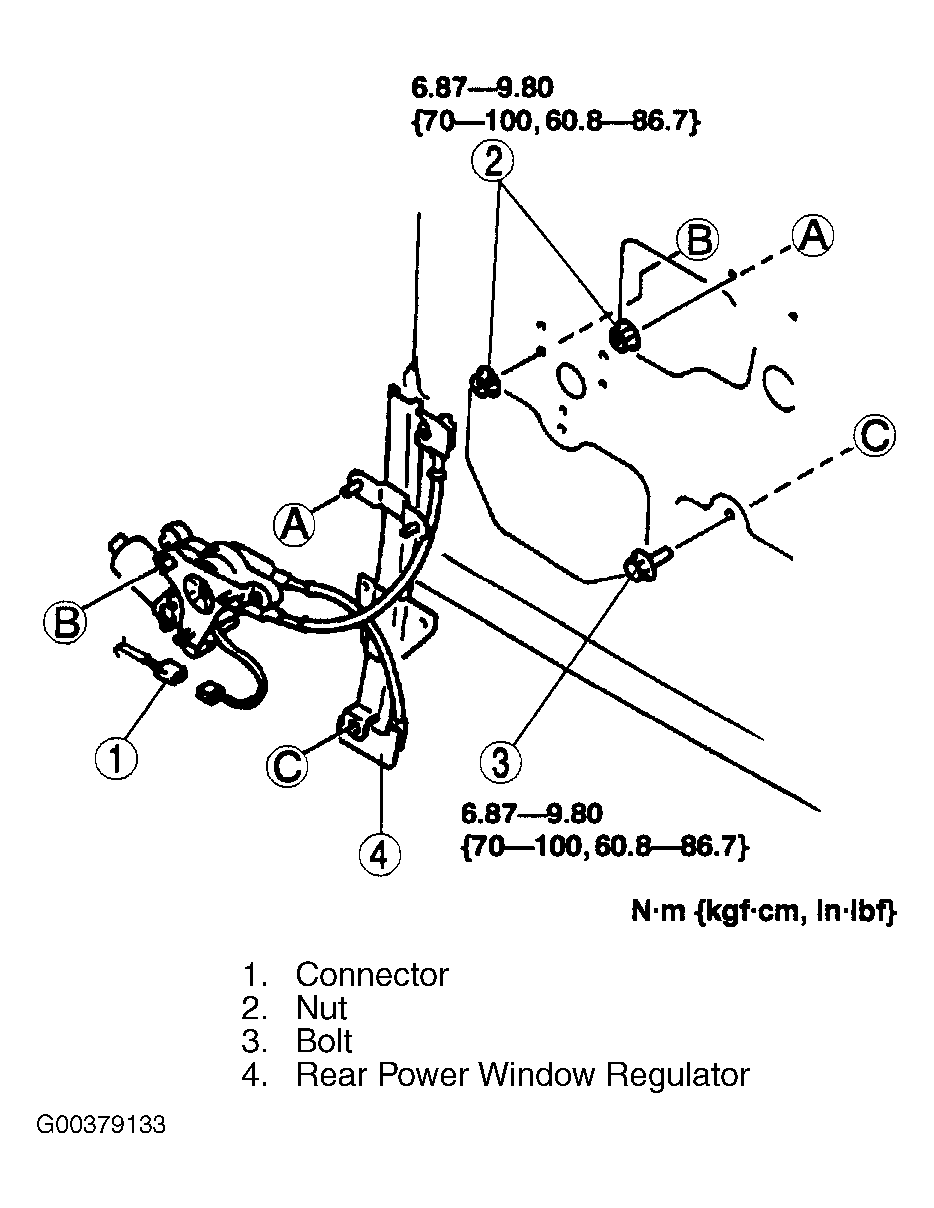

    Fig 1: Removing Rear Power Window Regulator
    G00379133Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
