Brake Pedal Removal/Installation

  1. Remove the lock unit (ATX).
  2. Remove in the order indicated in Fig 1 .
  3. Install in the reverse order of removal.

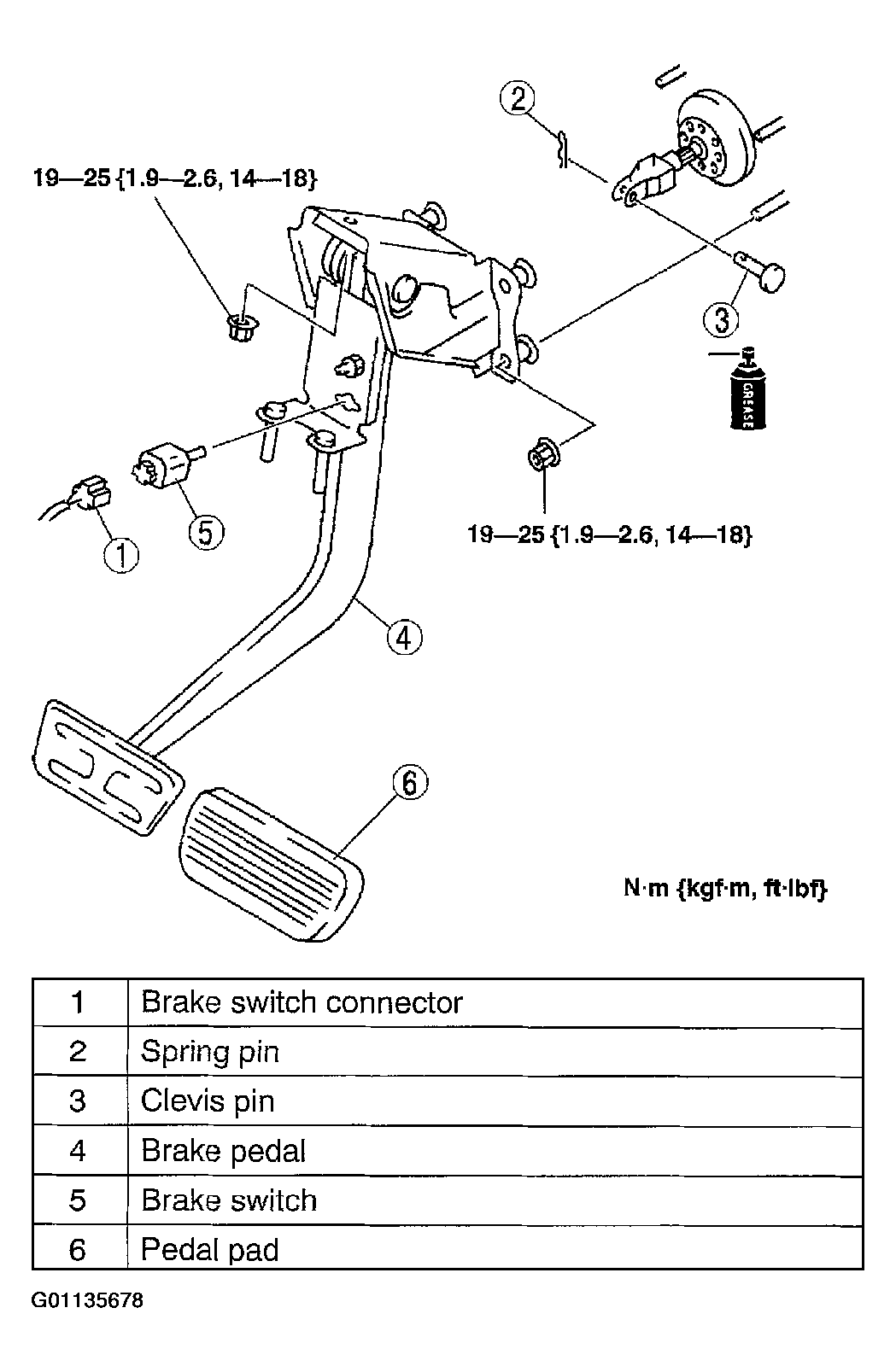

    Fig 1: Removing/Installing Brake Pedal
    G01135678Courtesy of MAZDA MOTORS CORP.
