Fluid Pressure

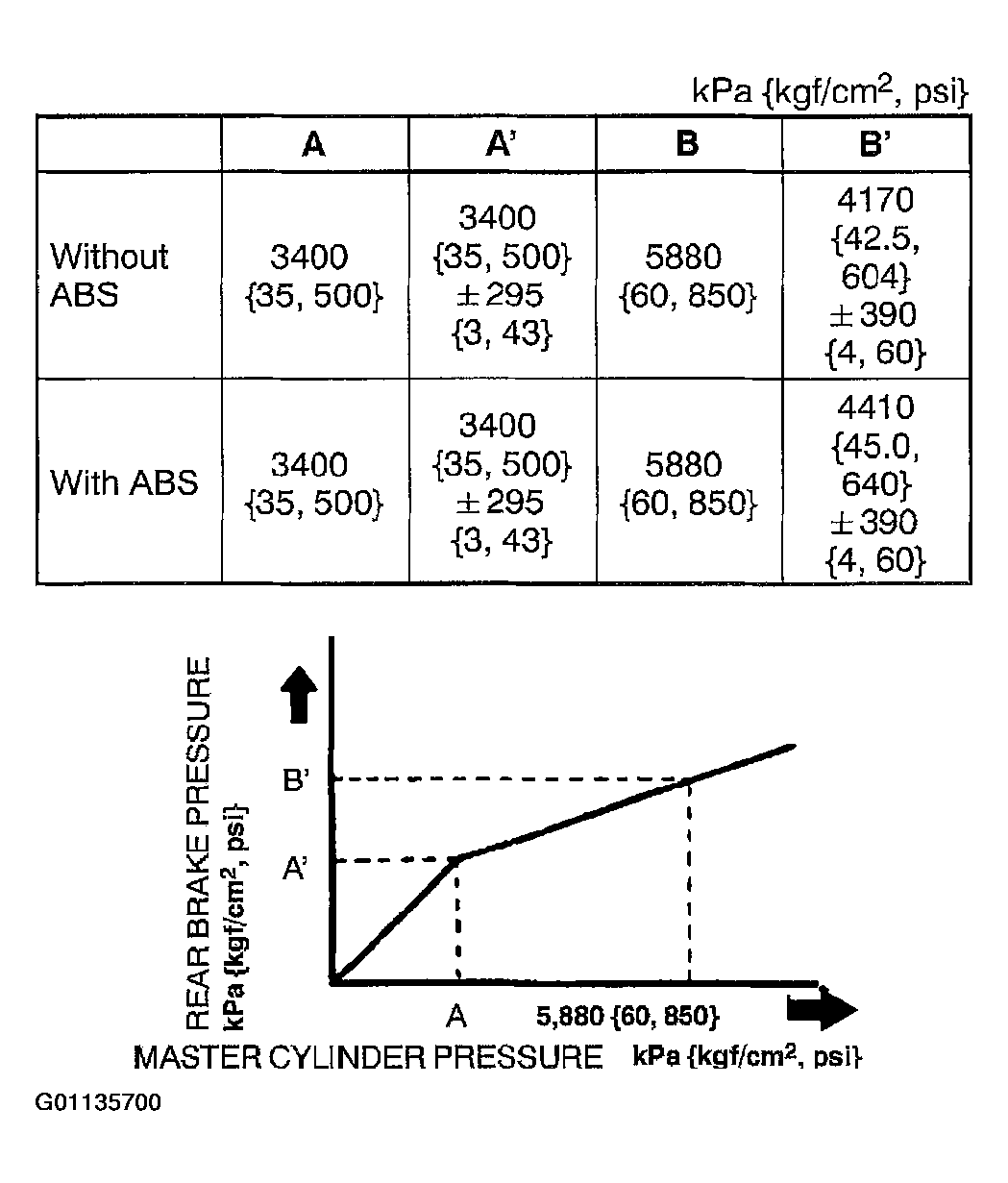

Fig 1: Fluid Pressure Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
