Front Disc Pad Replacement

  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.

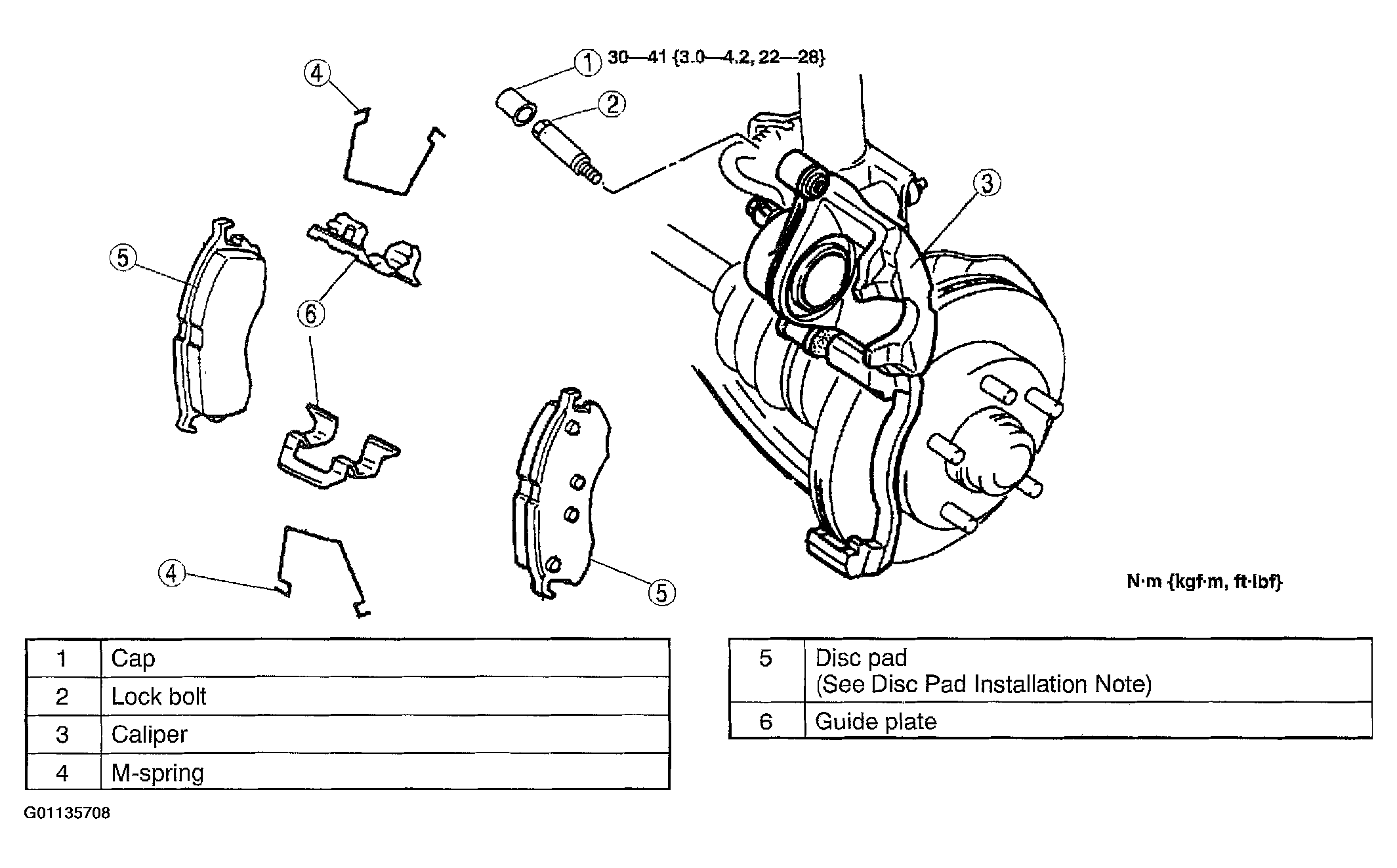

    Fig 1: Removing/Installing Front Disc Pad
    G01135708Courtesy of MAZDA MOTORS CORP.
