Suspension Technical Data

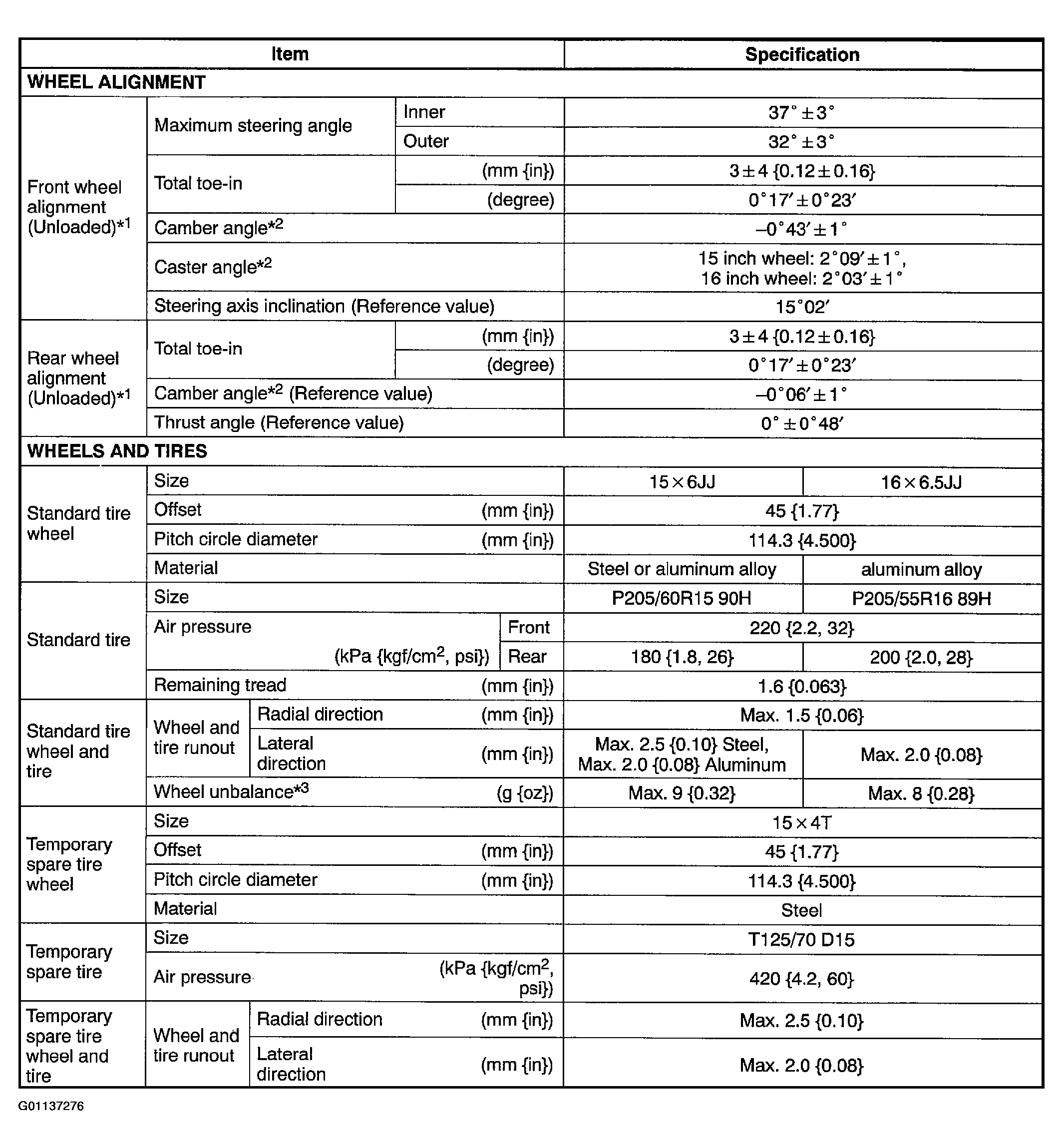

Fig 1: Suspension Technical Data (1 Of 2)
G01137276Courtesy of MAZDA MOTORS CORP.

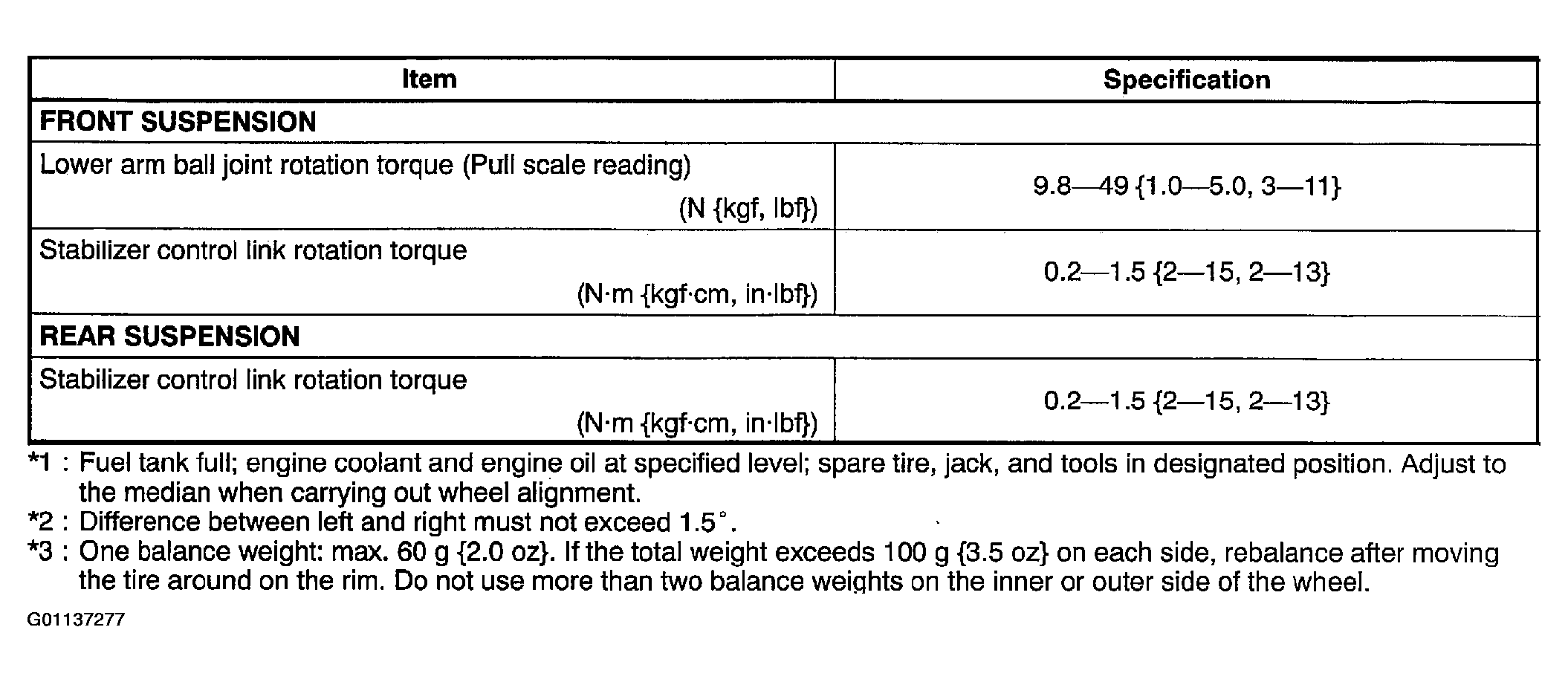

Fig 2: Suspension Technical Data (2 Of 2)
G01137277Courtesy of MAZDA MOTORS CORP.
