Cruise Control Servo: Testing and Inspection

CRUISE ACTUATOR INSPECTION

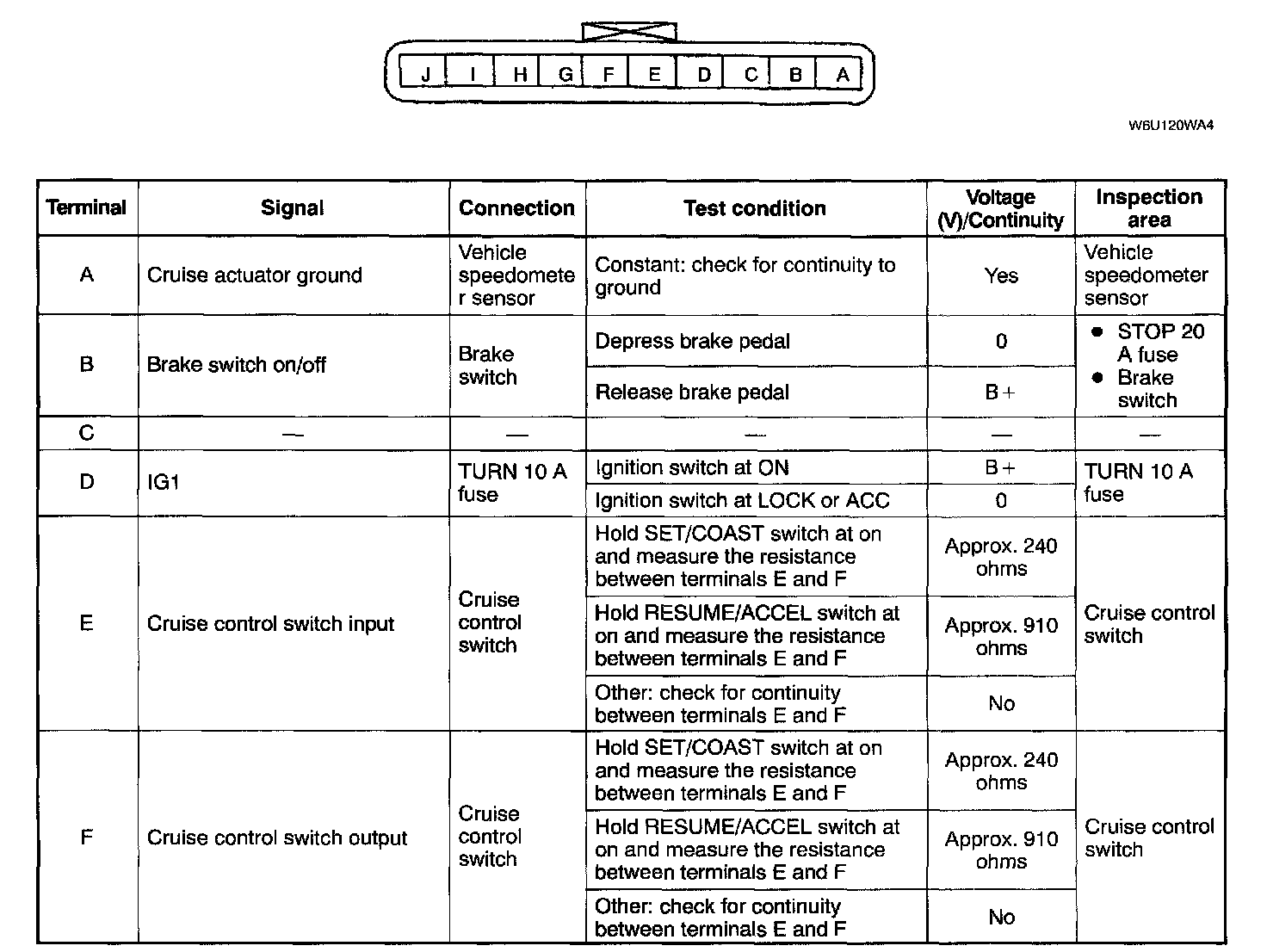

Terminal Voltage List (Reference) Part 1:

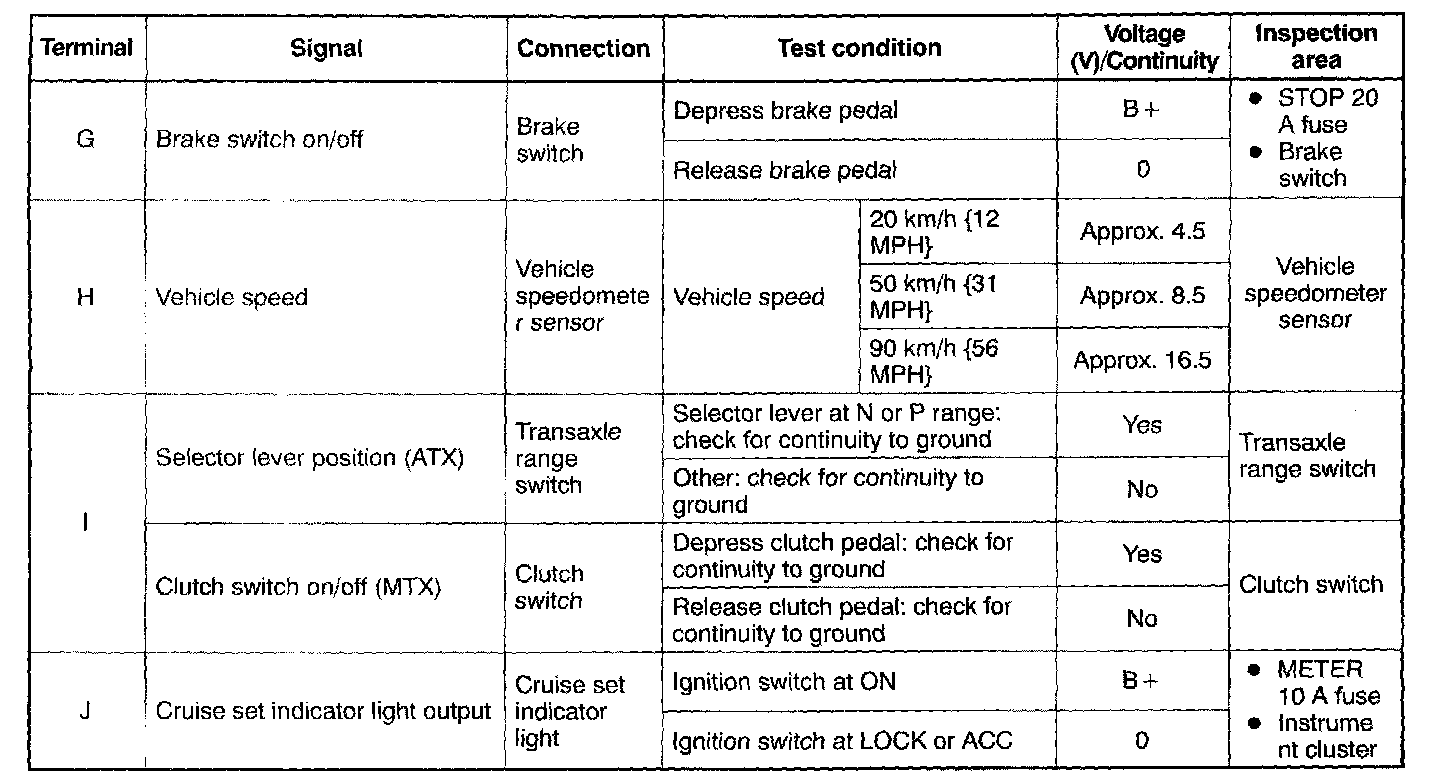

Terminal Voltage List (Reference) Part 2:

1. Measure the voltage at the cruise actuator connector terminals as indicated.
2. Disconnect the cruise actuator connector before checking for continuity at terminal A, E, F, and I.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnessers.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise actuator.
