Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Tester

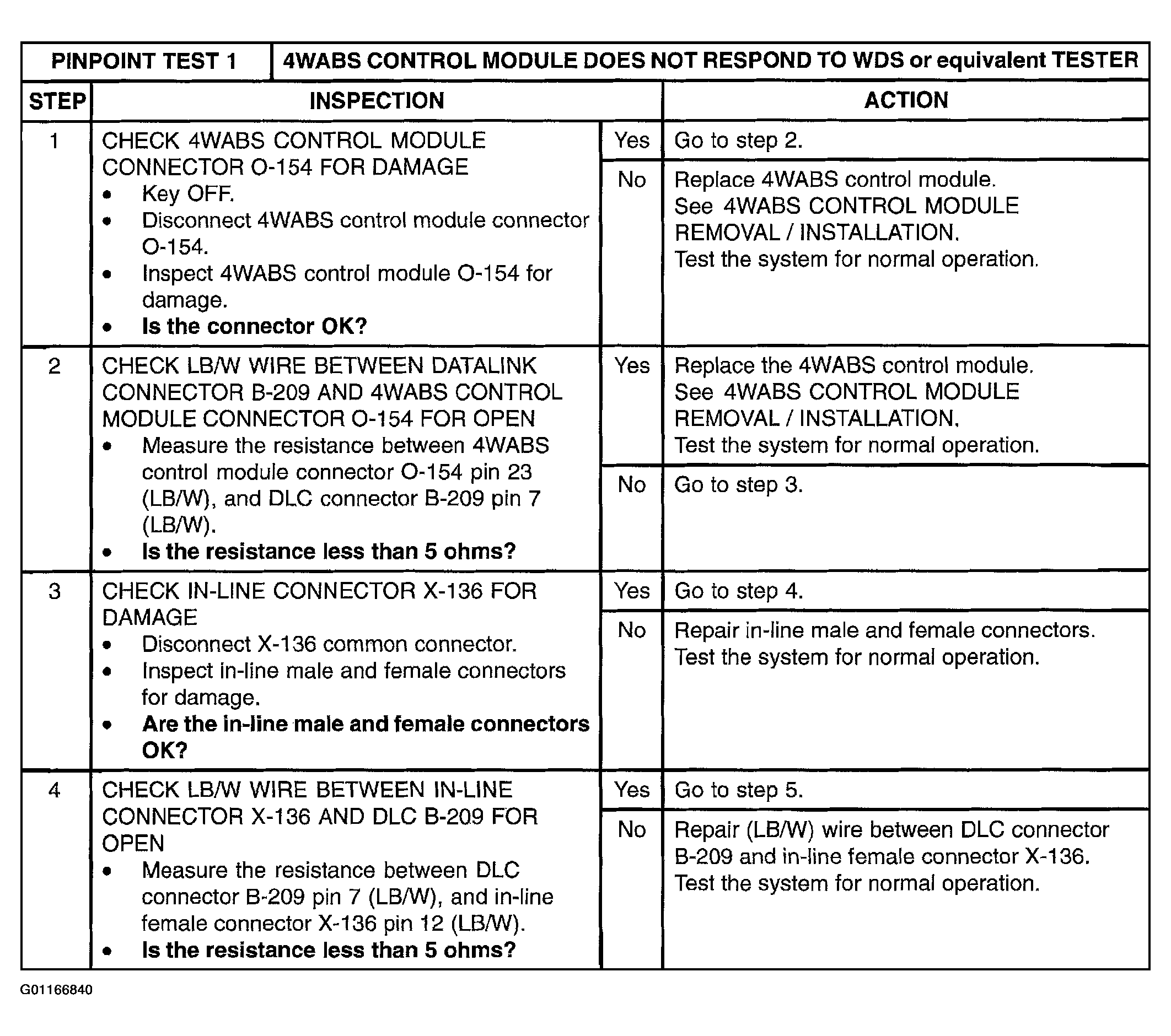

Fig 1: Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Tester (Steps 1-4)
G01166840Courtesy of MAZDA MOTORS CORP.

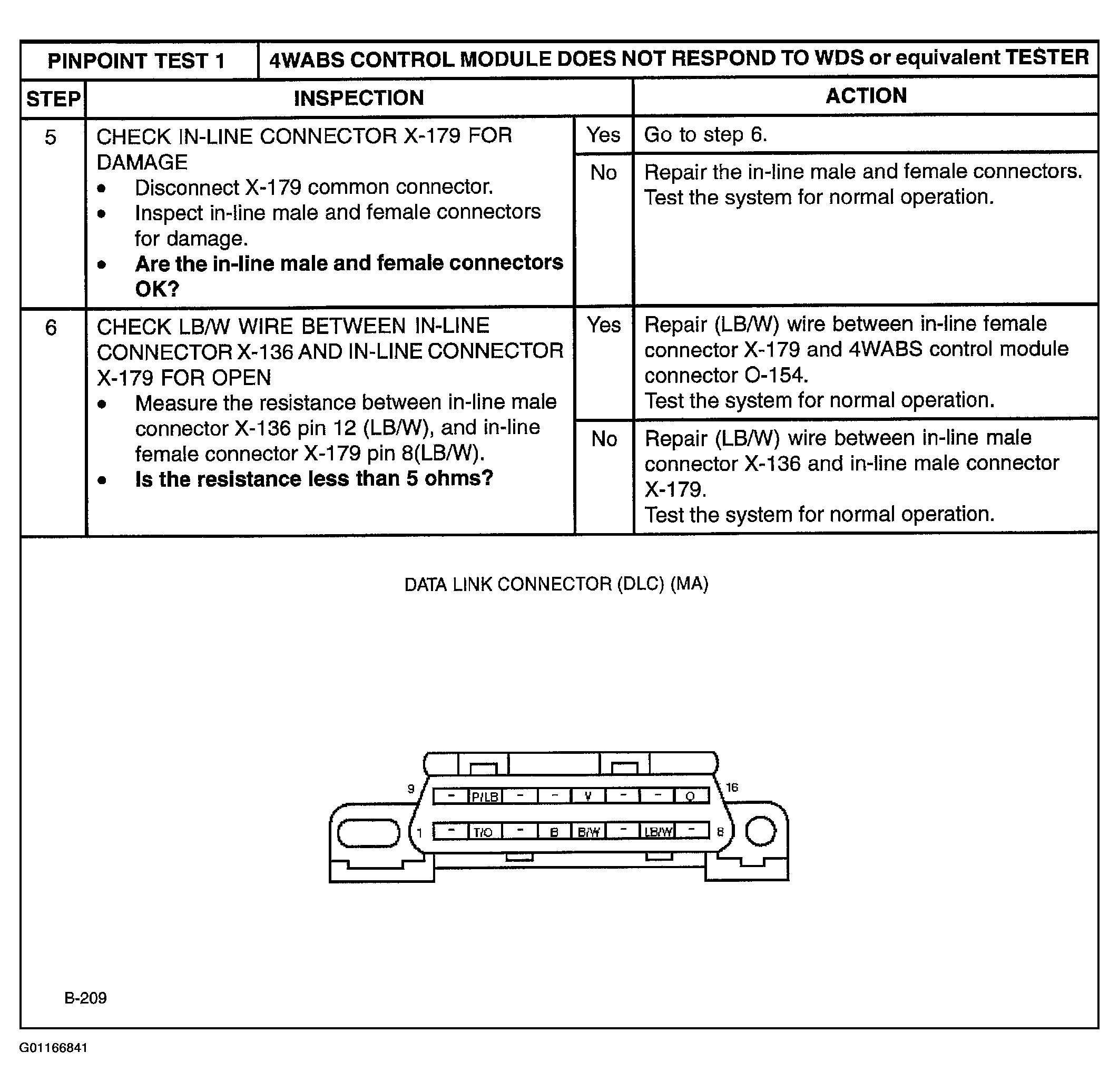

Fig 2: Pinpoint Test 1: 4WABS Control Module Does Not Respond To WDS Tester (Steps 5-6)
G01166841Courtesy of MAZDA MOTORS CORP.

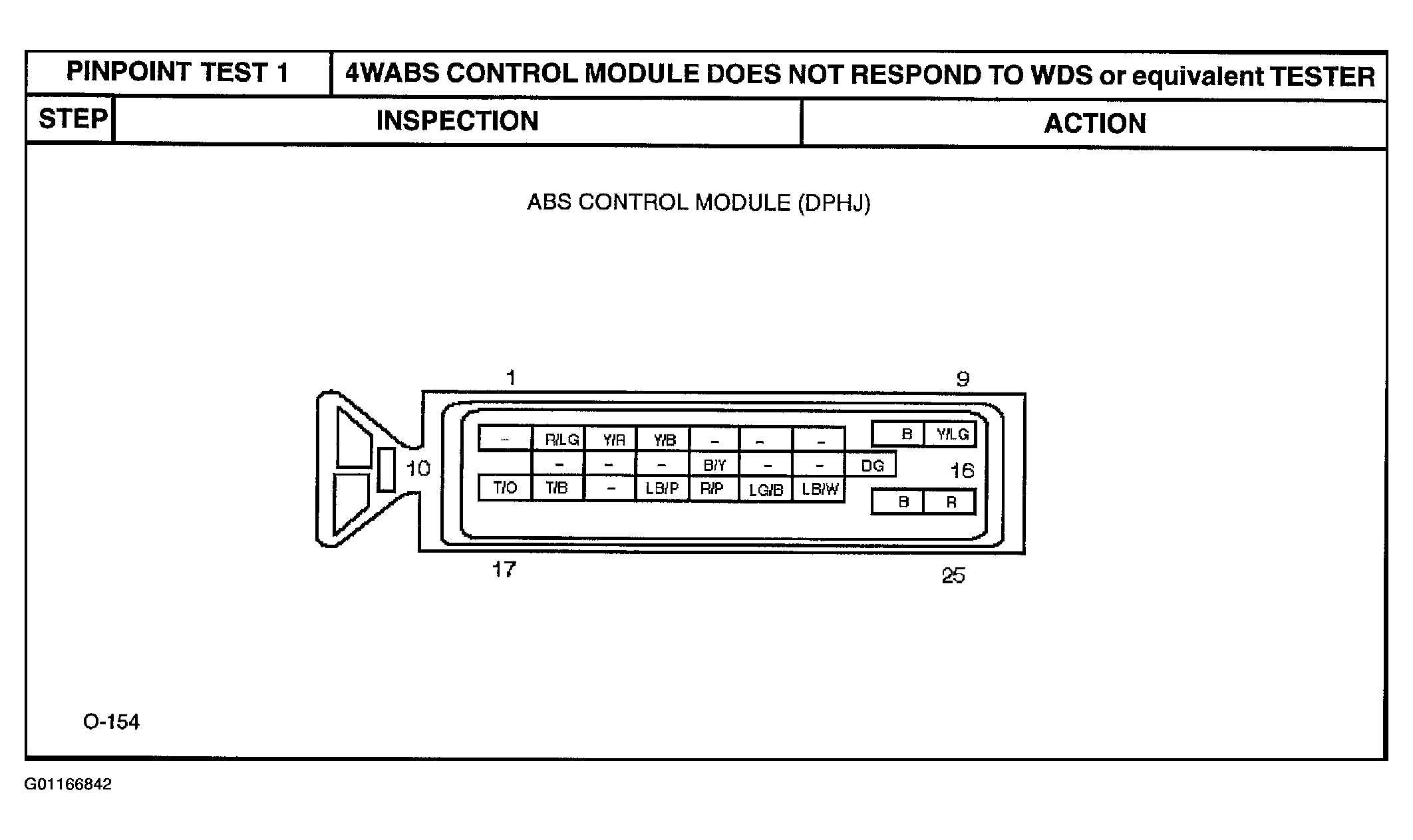

Fig 3: Pinpoint Test 1: Identifying ABS Control Module (DPHJ) Terminals
G01166842Courtesy of MAZDA MOTORS CORP.

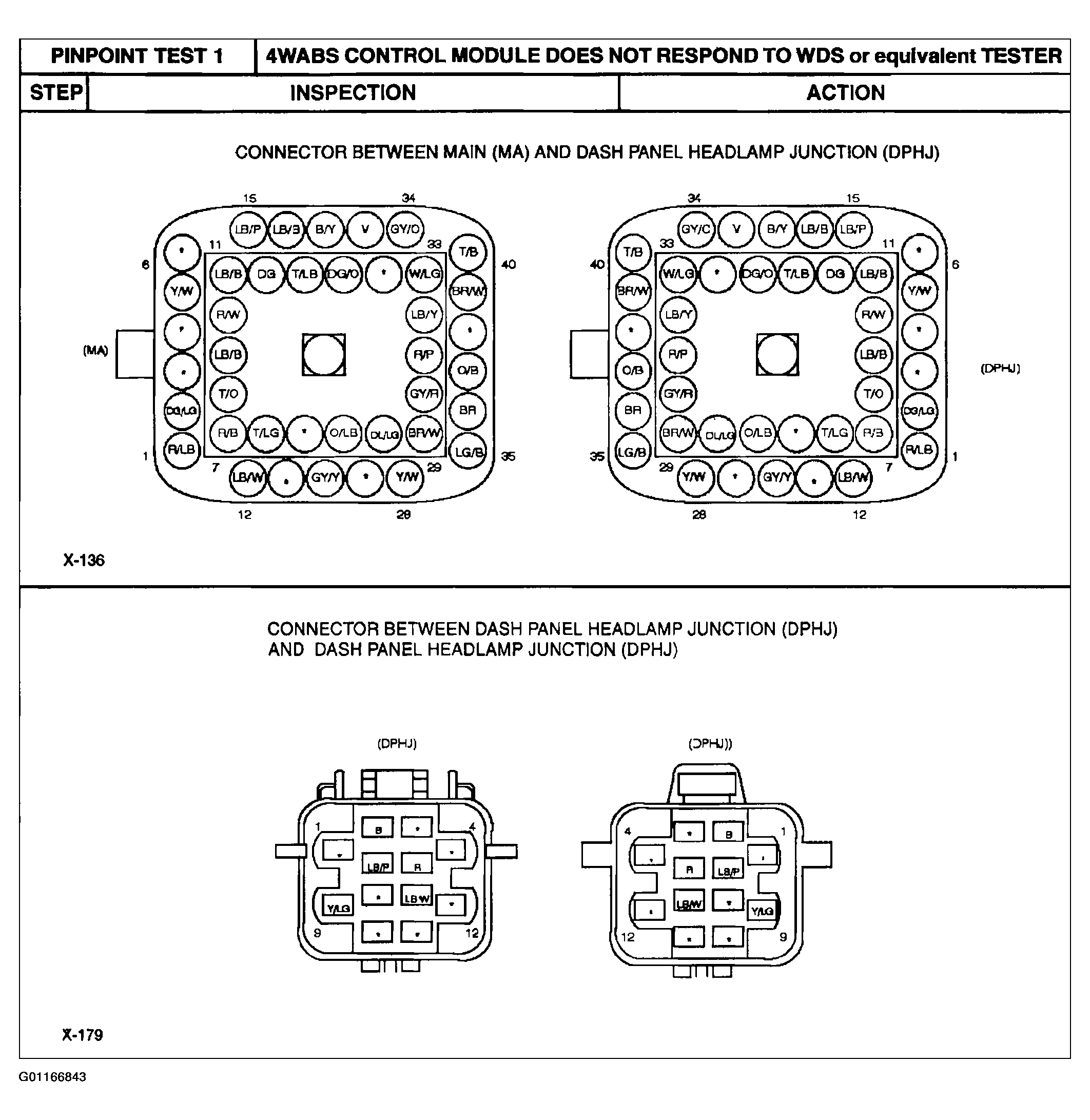

Fig 4: Pinpoint Test 1: Identifying Connectors X-136 & X-179 Terminals
G01166843Courtesy of MAZDA MOTORS CORP.
