Liftgate Side Trim Removal/Installation
- Remove the liftgate upper trim.
- Remove the fastener.

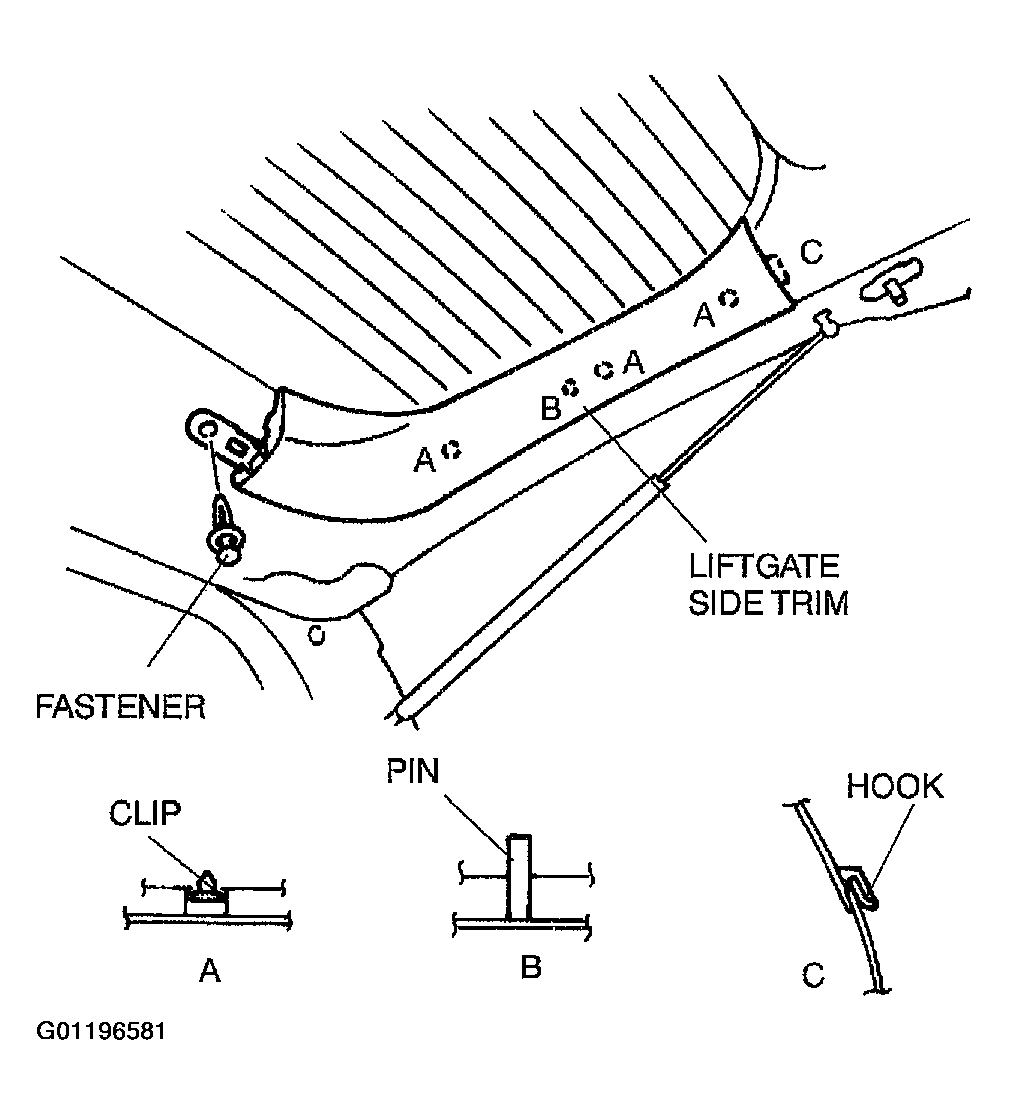

- Pull the liftgate side trim forward to disengage clips A and pin B from the body.
- Pull the liftgate side trim upward, then disengage hook C from the liftgate lower trim, and remove the liftgate side trim.
- Install in the reverse order of removal.
