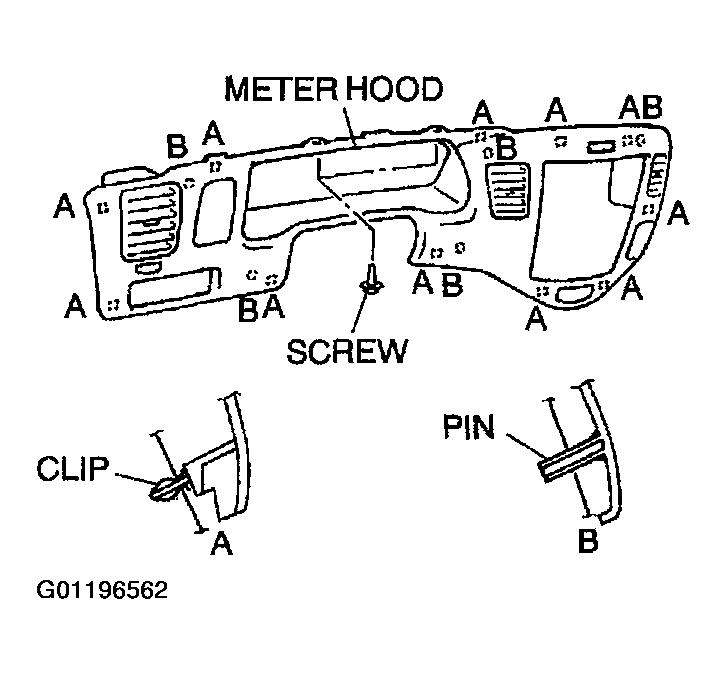

Meter Hood Removal/Installation
- Remove the screws.
- Pull the meter hood toward you, then disengage clips A and pins B from the dashboard, and remove the meter hood.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
