Coil Installation Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hook 1 to the steering lock.
  2. Install the hook 2 and hook 3 to the steering lock.

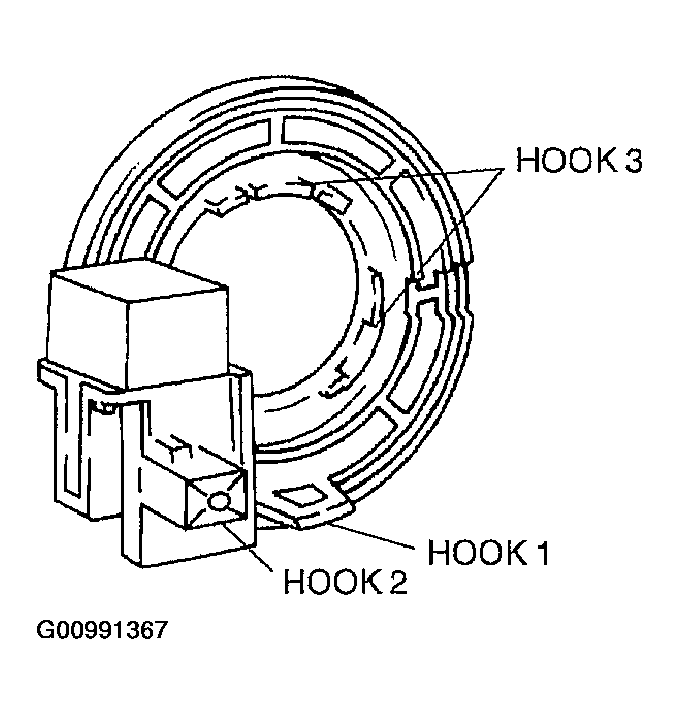

    Fig 1: Locating Steering Lock Hooks
    G00991367Courtesy of MAZDA MOTORS CORP.
