Steering Shaft Installation Note

CAUTION: Do not apply a shock in the axial direction of the shaft.
  1. Tighten bolt A.
  2. Tighten bolt B from the left side temporarily.
  3. Tighten bolt C.
  4. Tighten bolt B.
  5. Tighten nut D.

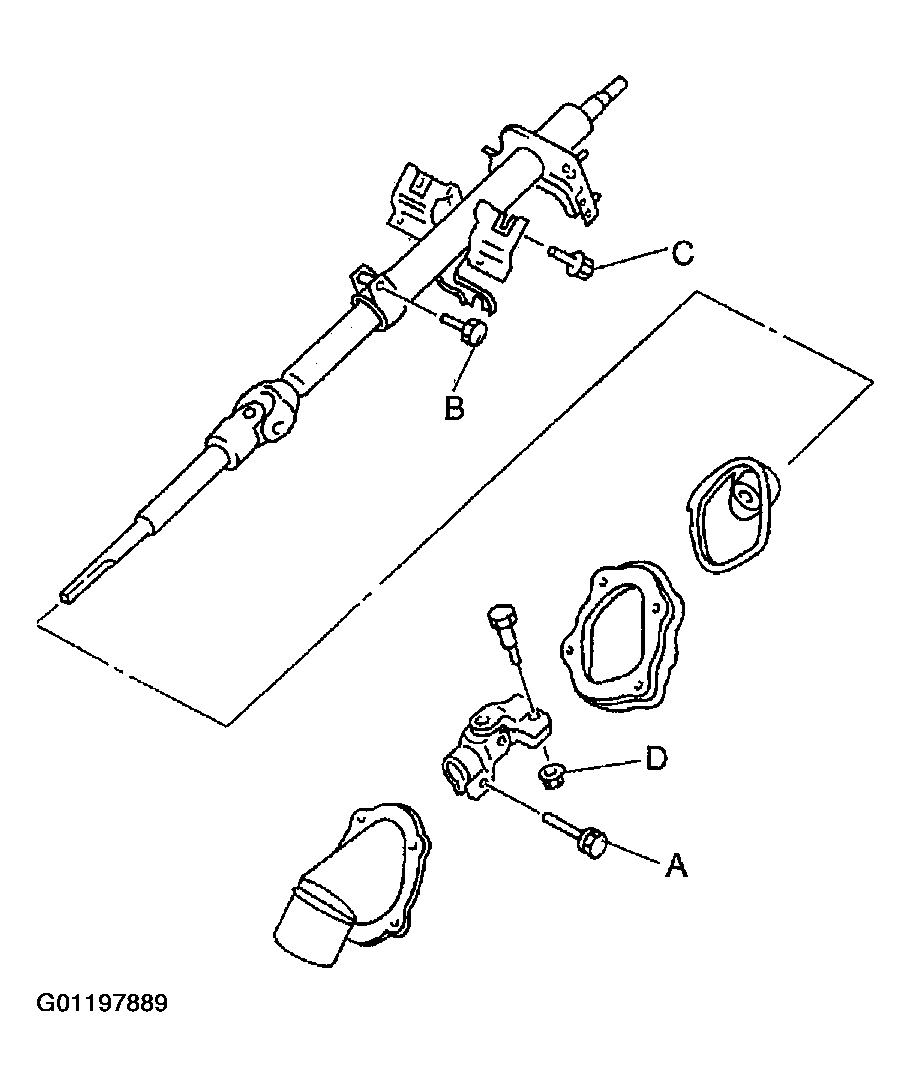

    Fig 1: Identifying Steering Column Bolts
    G01197889Courtesy of MAZDA MOTORS CORP.
