Component Locations

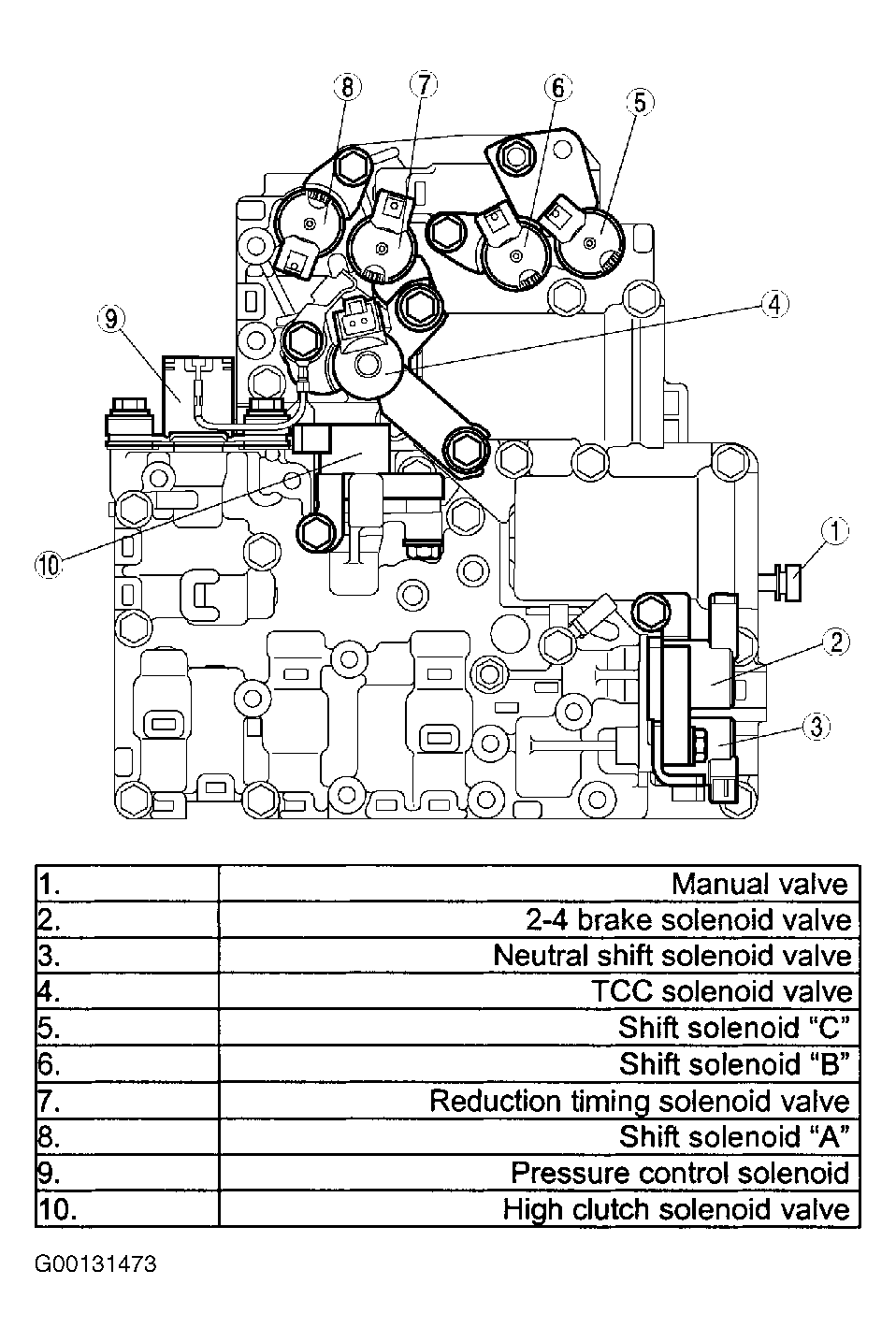

Fig 1: Locating Transaxle Solenoids

G00131473

Courtesy of MAZDA MOTORS CORP.

Fig 2: Locating Transaxle Connectors No. 1 & 2

G00131467

Courtesy of MAZDA MOTORS CORP.

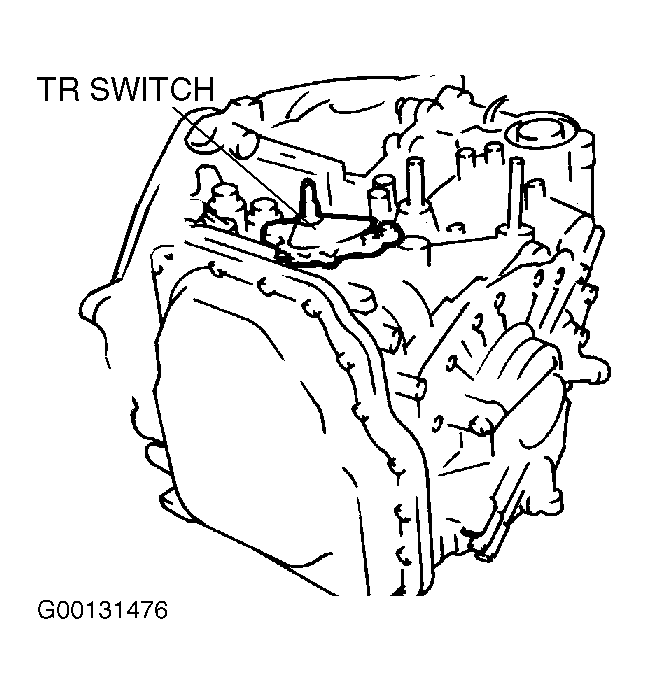

Fig 3: Locating Transaxle Range Switch

G00131476

Courtesy of MAZDA MOTORS CORP.
