Transaxle Range Switch
CAUTION:
Water or foreign objects entering the harness connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

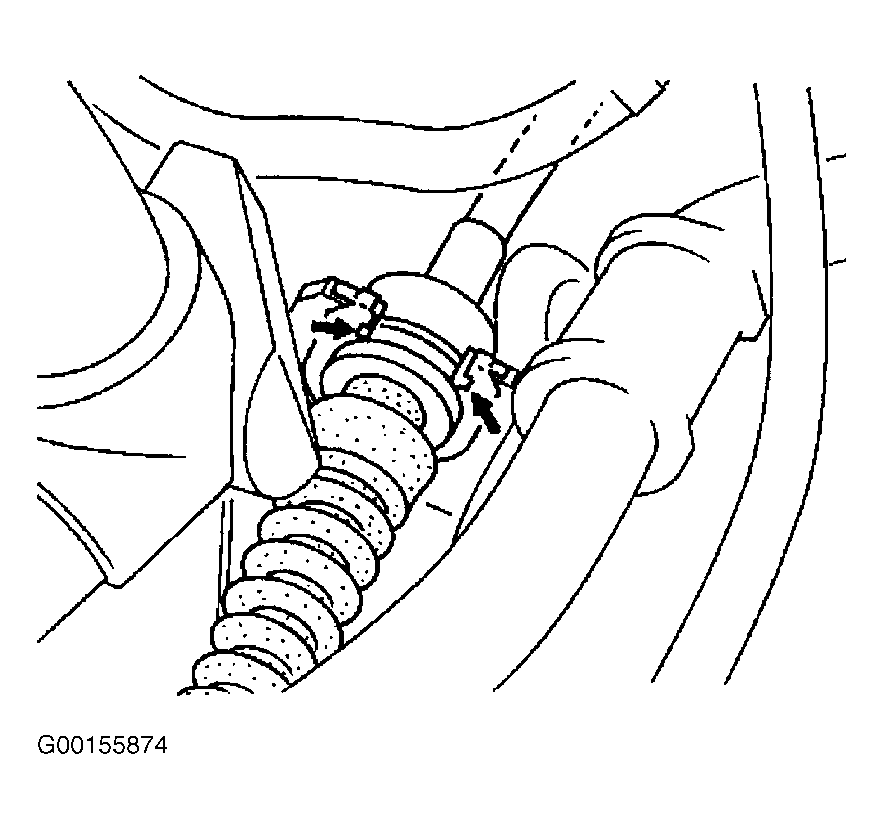

- Disconnect the Transaxle Range (TR) switch harness connector. Remove the spring clip and disconnect the shift cable from the TR switch. See Fig 1 .

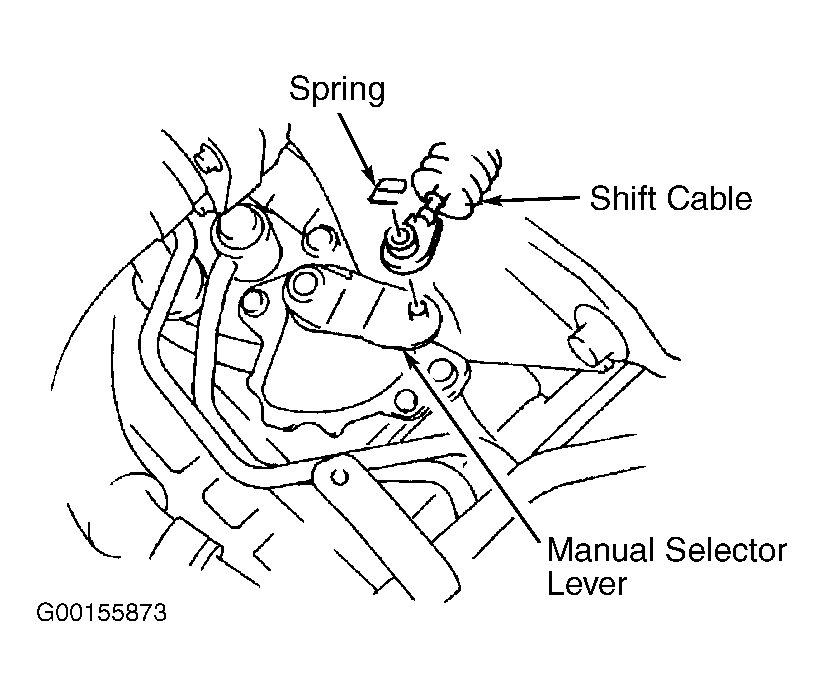

- Press the hooks of the clips, and remove the shift cable clips and shift cable together from the shift cable bracket. See Fig 2 . Rotate the gearshift lever to the right fully, then return 2 notches to set the Neutral position. Loosen the TR switch mounting bolts.
- Using the SST, and by turning the TR switch, adjust the positions of the manual selector lever and the TR switch neutral hole. See Fig 3 . Tighten the TR switch mounting bolts to specification. See TORQUE SPECIFICATIONS .

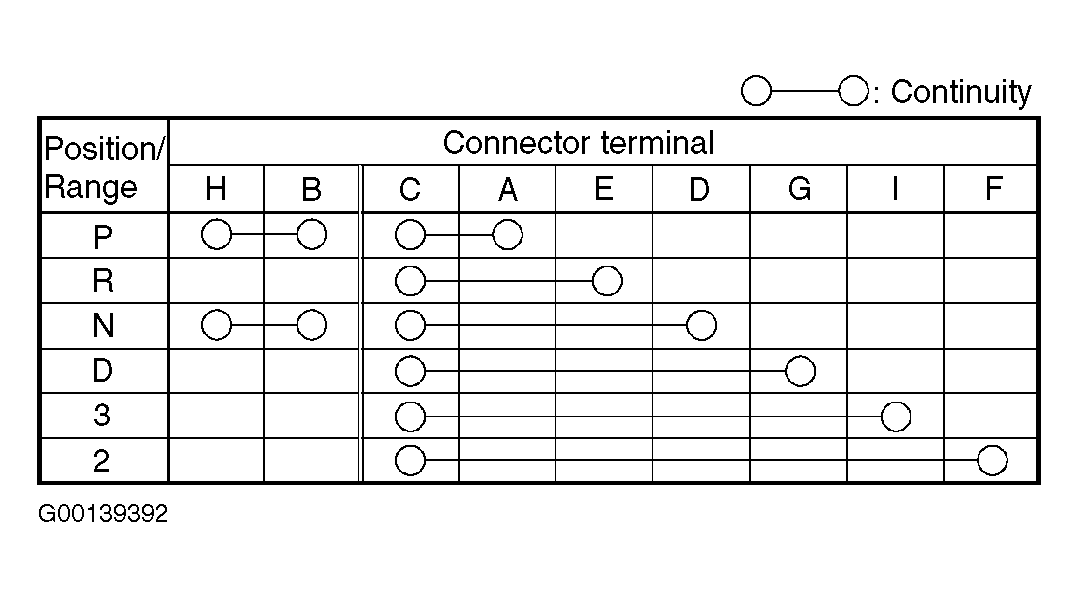

- Remove the SST and inspect for continuity at the TR switch. See Fig 4 and Fig 5 . Connect the TR switch harness connector. Connect the shift cable and install a new spring clip. Inspect operation of the TR switch.
NOTE:
Do not reuse the clip when any of the hooks are deformed.
CAUTION:
Improper adjustment of the TR switch will cause abnormal operation of the transaxle. Be sure to use the Special Service Tool (SST 49-L019-013), to adjust the TR switch correctly.
