Rear Door Glass And Guide Removal/Installation

Lower or raise the rear door glass so that the distance from the top of the rear door glass at the rear end to the upper part of the front belt line molding is 260 mm {10 in}.
Disconnect the negative battery cable.
Remove the sliding door trim. See SLIDING DOOR TRIM REMOVAL/INSTALLATION .
Remove the rear belt line molding. See REAR BELT LINE MOLDING REMOVAL/INSTALLATION .
Remove in the order indicated in the illustration.

Fig 1: Raising Window To Set Height (Rear Window)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

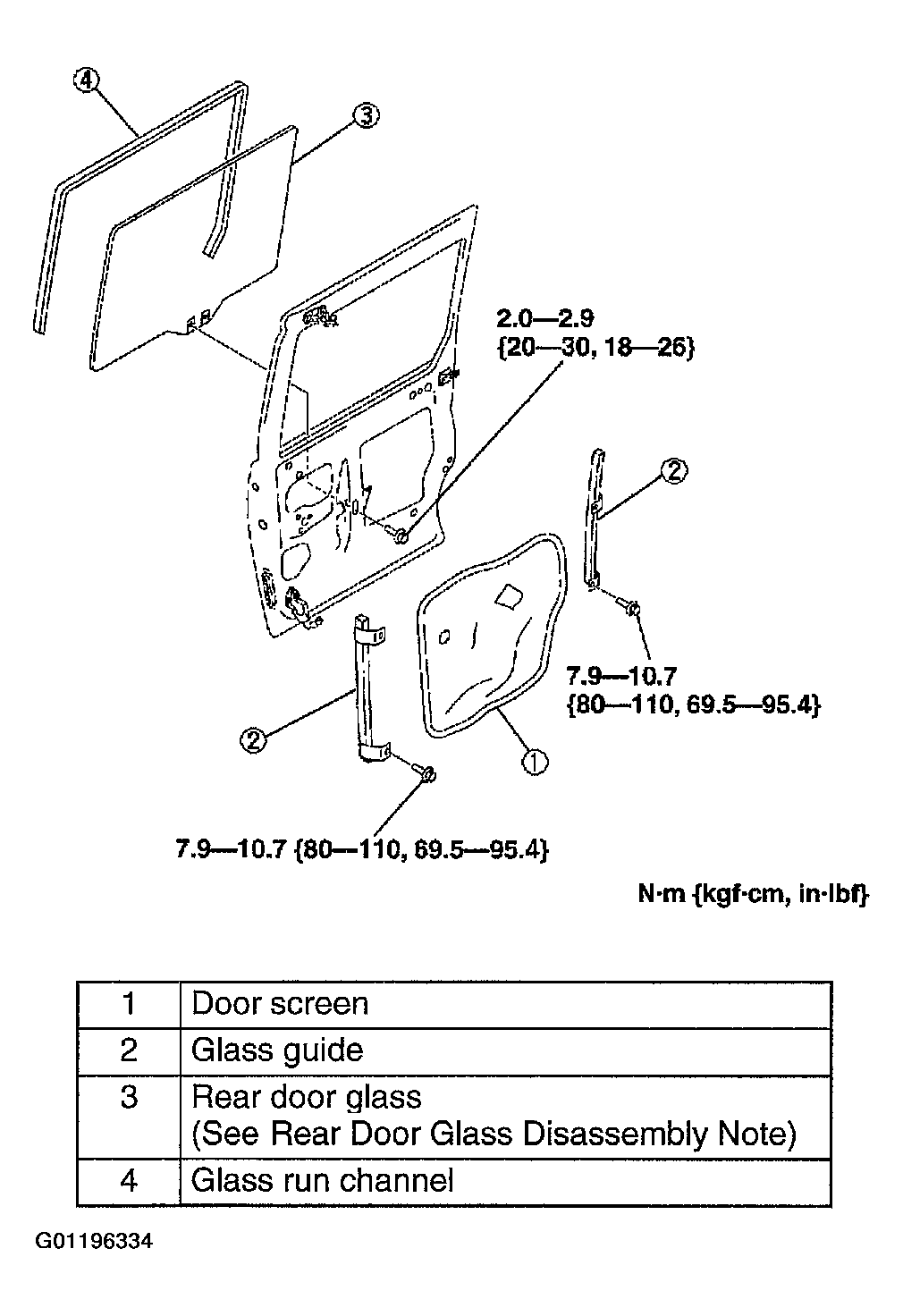

Fig 2: Removing Rear Door Glass And Guide

Courtesy of MAZDA MOTORS CORP.
