Steering Technical Data
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Steering Technical Data

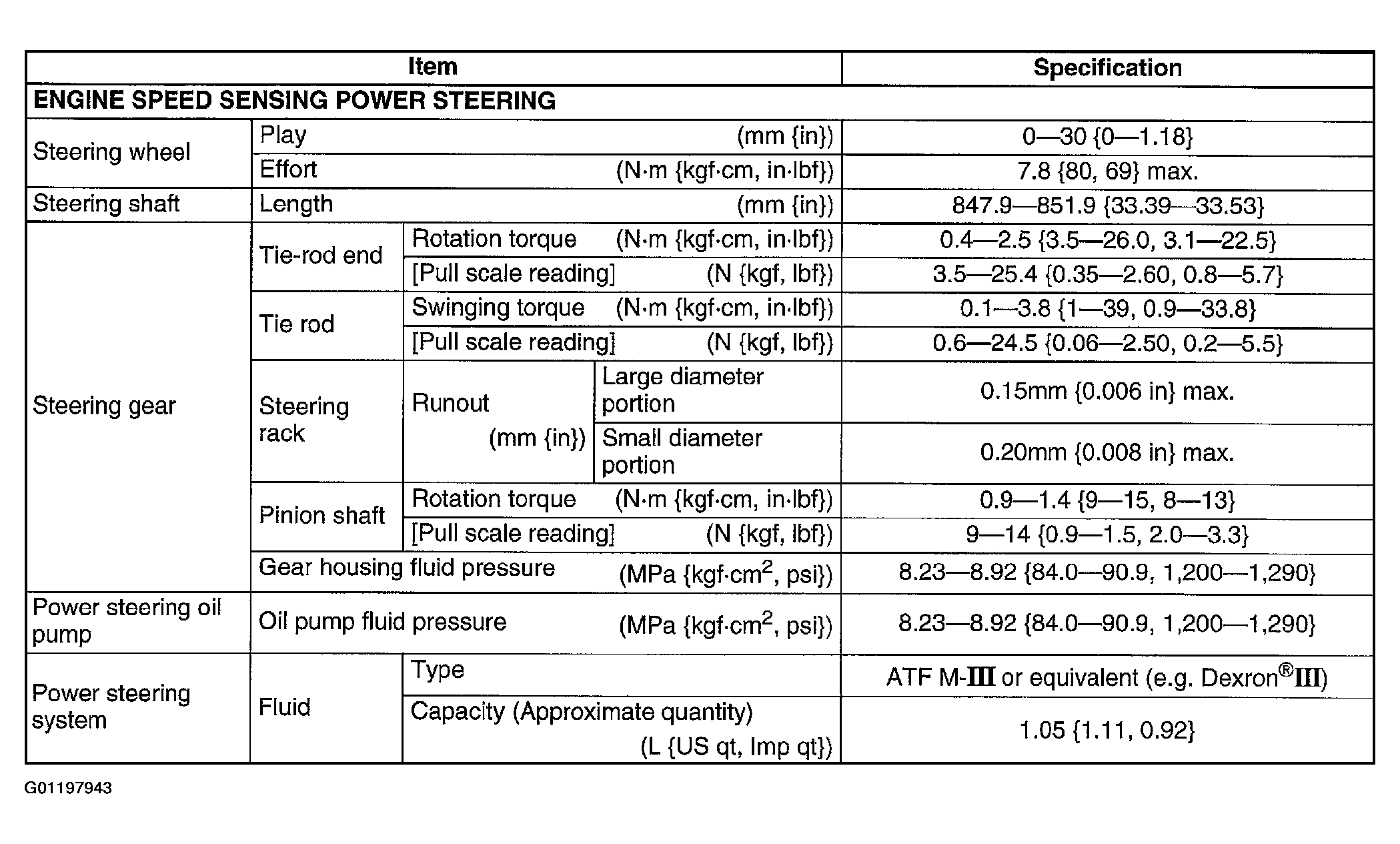

Fig 1: Steering Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
