Jacking Position

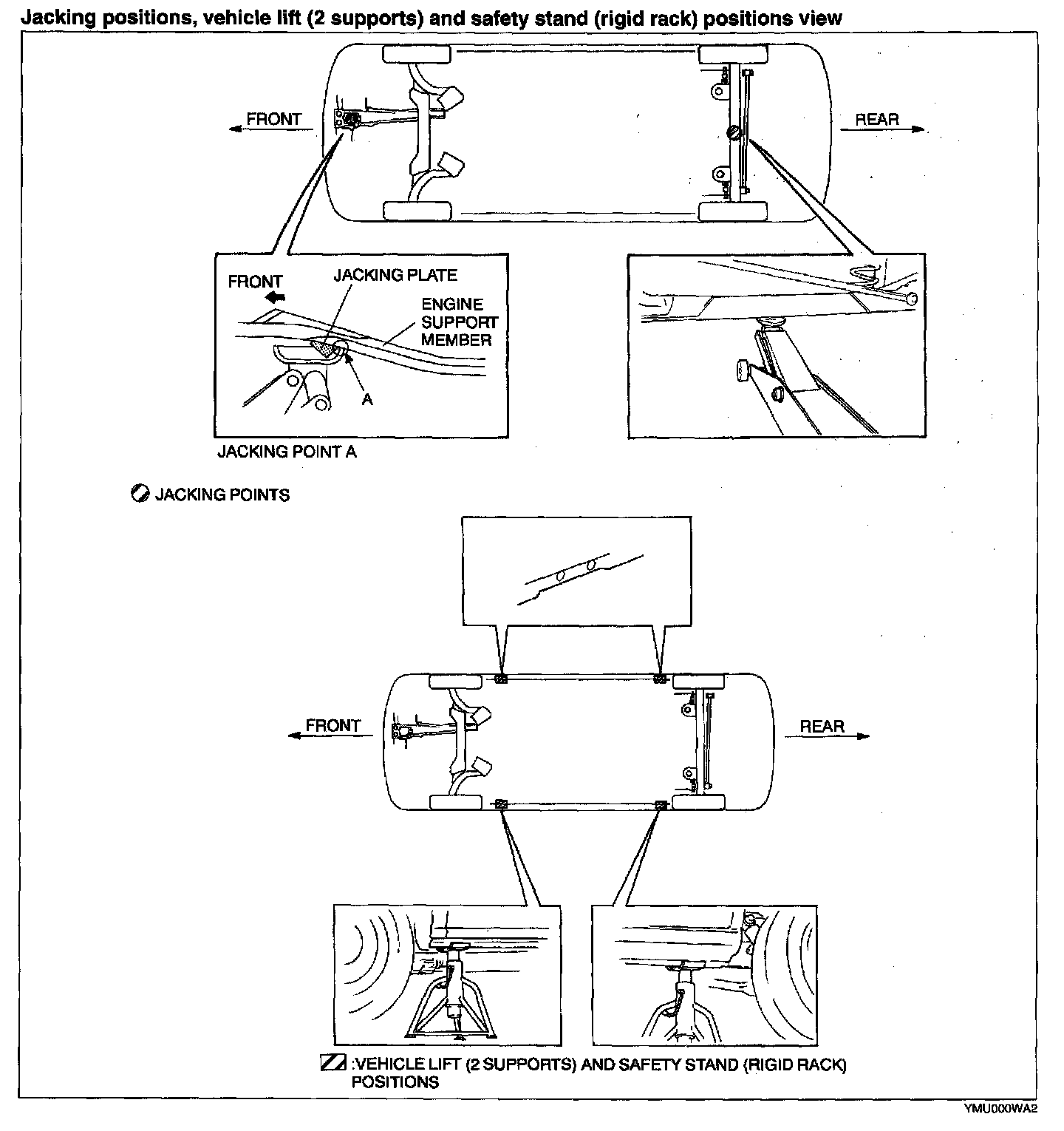

Jacking positions, vehicle lift (2 supports) and safety stand (rigid rack) positions view

JACKING POSITIONS

WARNING: Improperly jacking a vehicle is dangerous. The vehicle can slip off the Jack and cause serious injury. Use only the correct front and rear Jacking points and block the wheels.

- Use safety stands to support the vehicle after it has been lifted.

Front
- At the jacking plate of the engine support member.

Rear
- At the center of torsion beam axle.
