Cruise Control Main Switch Inspection

  1. Remove the cruise control main switch. See CRUISE CONTROL MAIN SWITCH REMOVAL/INSTALLATION  .
  2. Inspect for continuity between the cruise control main switch terminals using an ohmmeter.

    If not as specified, replace the cruise control main switch.

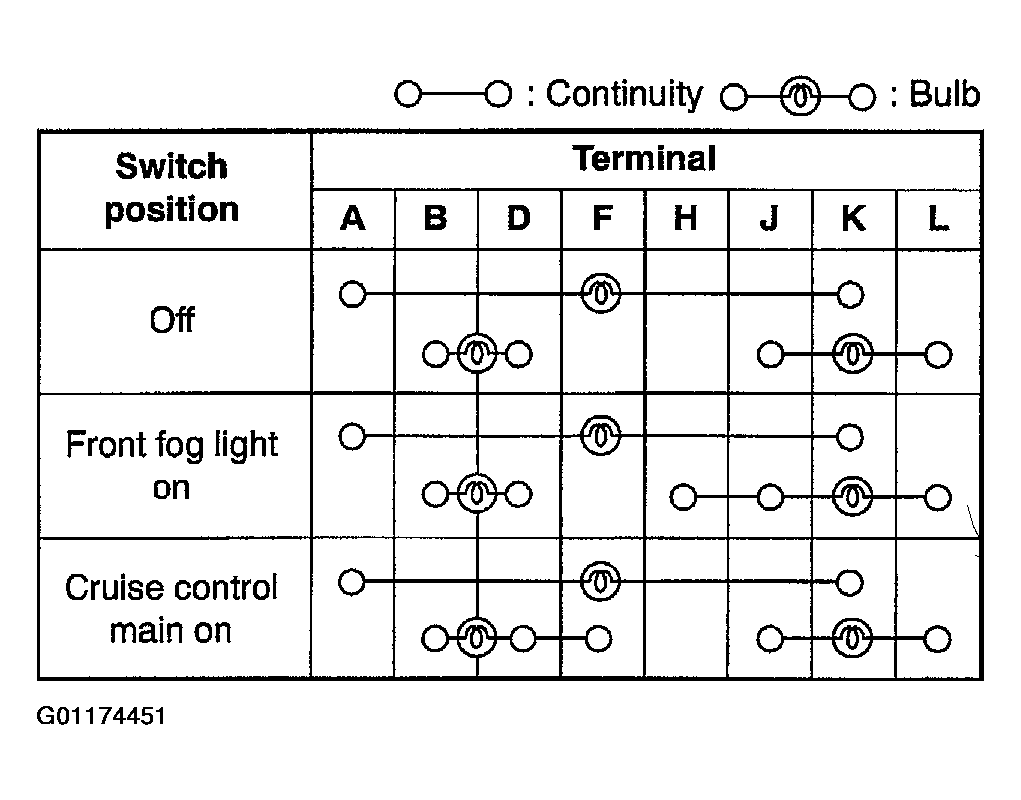

    Fig 1: Inspecting Cruise Control Main Switch (1 Of 2)
    G01174451Courtesy of MAZDA MOTORS CORP.
    Fig 2: Inspecting Cruise Control Main Switch (2 Of 2)
    G01174452Courtesy of MAZDA MOTORS CORP.
