Spring Installation Note

  1. Place the clutch pedal component in a vise.
  2. Install the spring onto the clutch pedal as shown in the figure.
  3. Adjust the clutch pedal height and free play after installation.

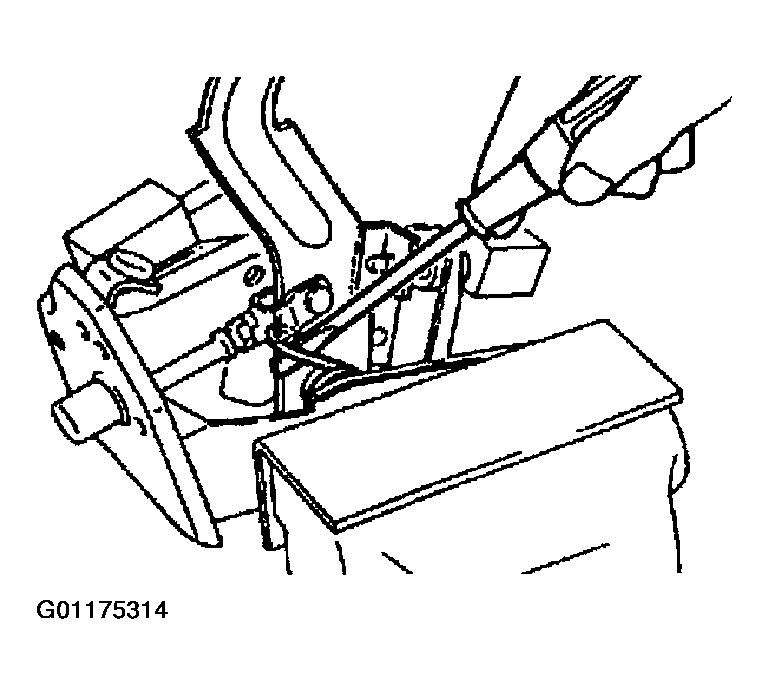

    Fig 1: Installing Spring
    G01175314Courtesy of MAZDA MOTORS CORP.
