Instrument Cluster Disassembly/Assembly

CAUTION:

If the instrument cluster is dropped or the print plate is damaged, the system will not operate properly and it may become the cause of trouble or malfunctions.

Disassemble in the order indicated in the illustrations.

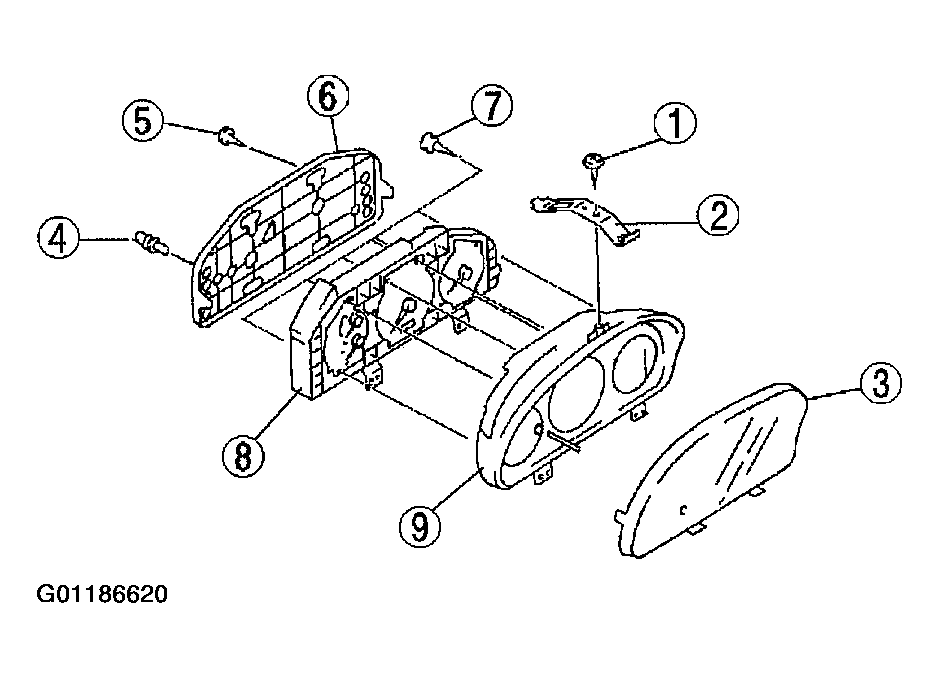

Fig 1: Disassembling/Assembling Instrument Cluster (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Disassembling/Assembling Instrument Cluster (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
