Exhaust System Removal/Installation: Notes

WARNING: Engine and exhaust system can cause serious burn. Turn off the engine and wait until it and the exhaust system are cool before removing the exhaust system.
  1. Disconnect the battery negative cable.
  2. Remove in the order indicated in the illustration. Refer to REMOVAL NOTE .

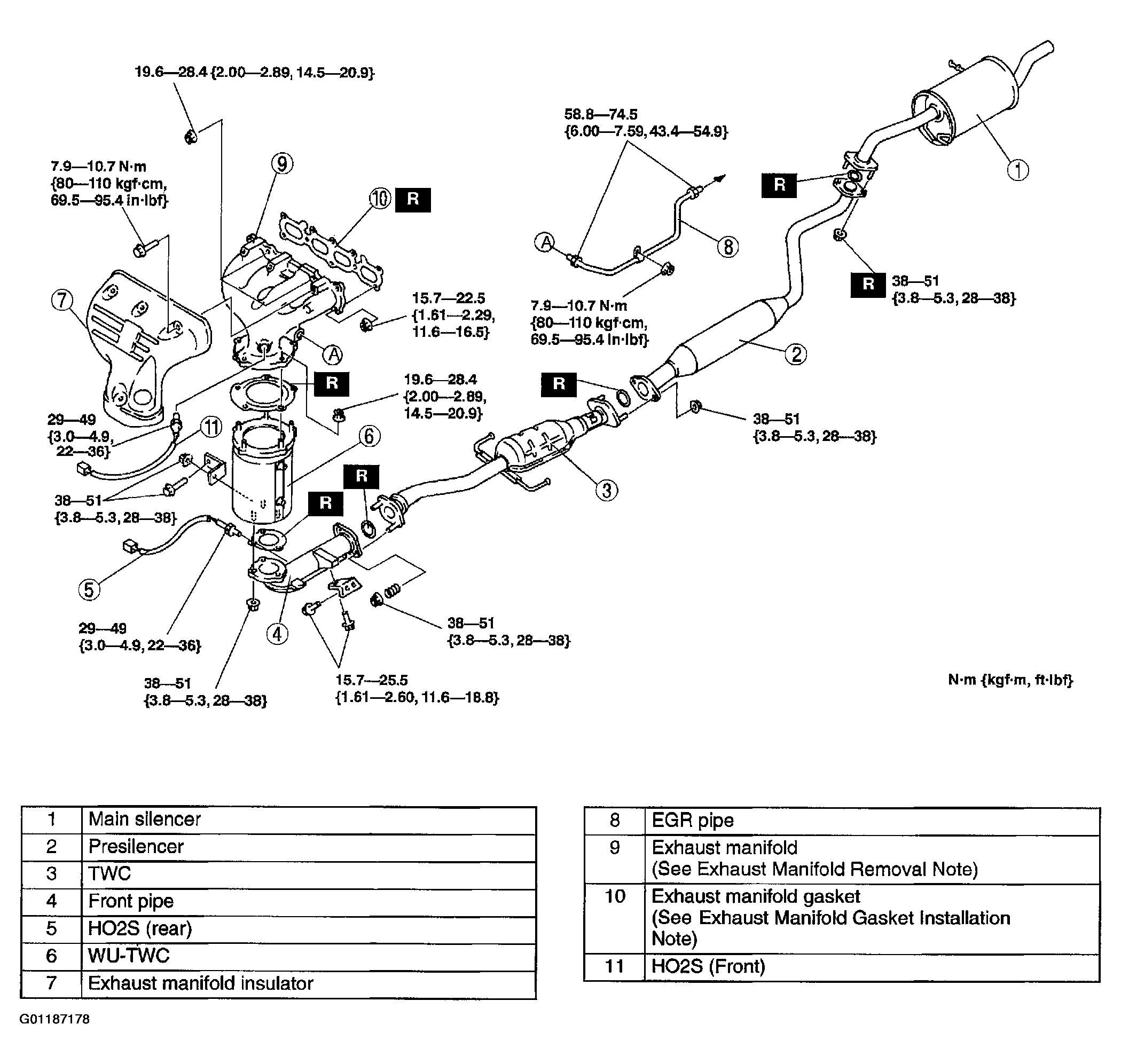

    Fig 1: Removing/Installing Exhaust System
    G01187178Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal. Refer to INSTALLATION NOTE .
