Front Strut Bar: Removal/Installation

  1. Remove in the order indicated in the illustration.

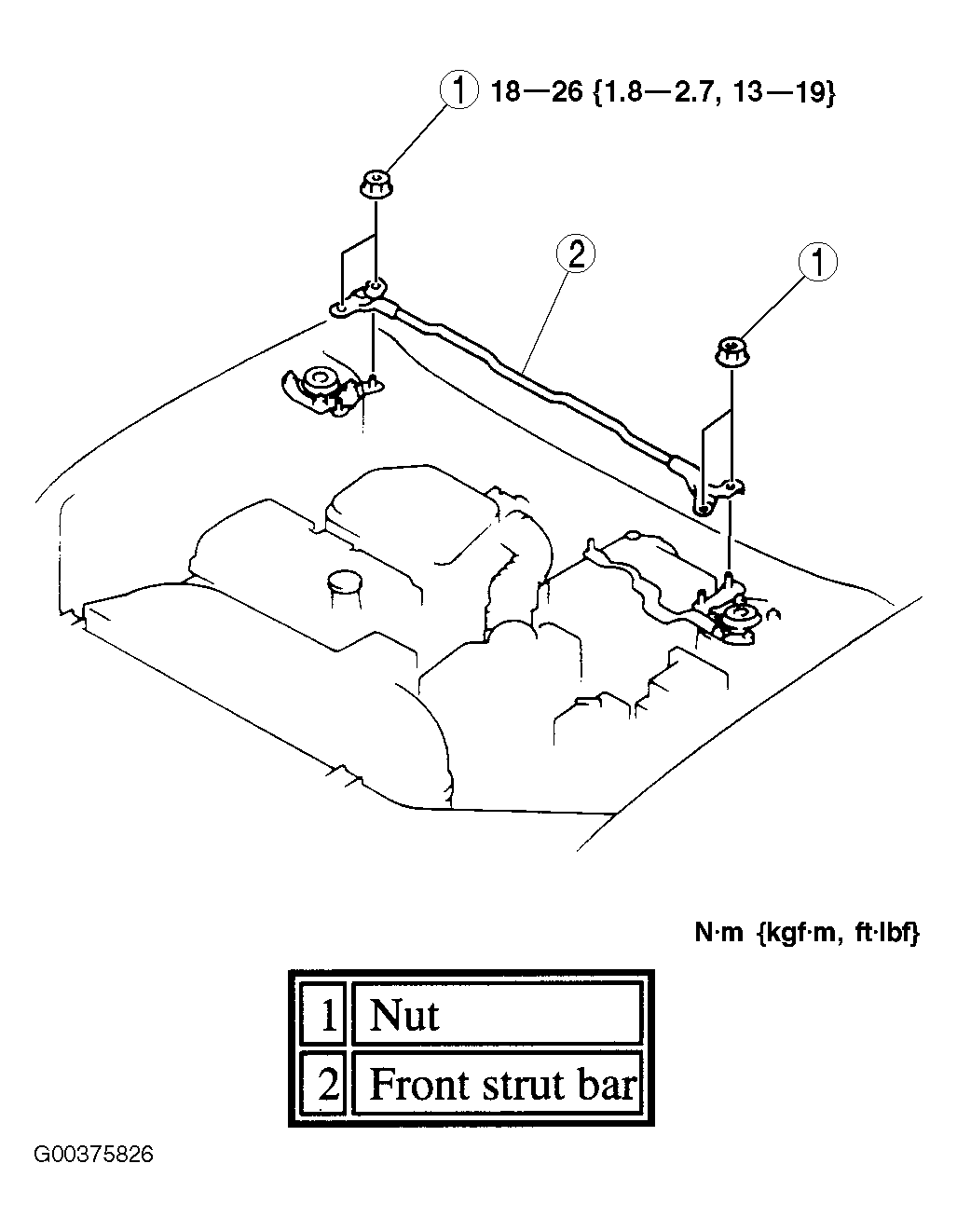

    Fig 1: Removing Front Strut Bar
    G00375826Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
