Buckle Switch Connector Installation Note

Be sure to pass the harness connector of the buckle switch under the slide connecting wire before connecting it to the buckle switch connector (vehicle-side harness connector).

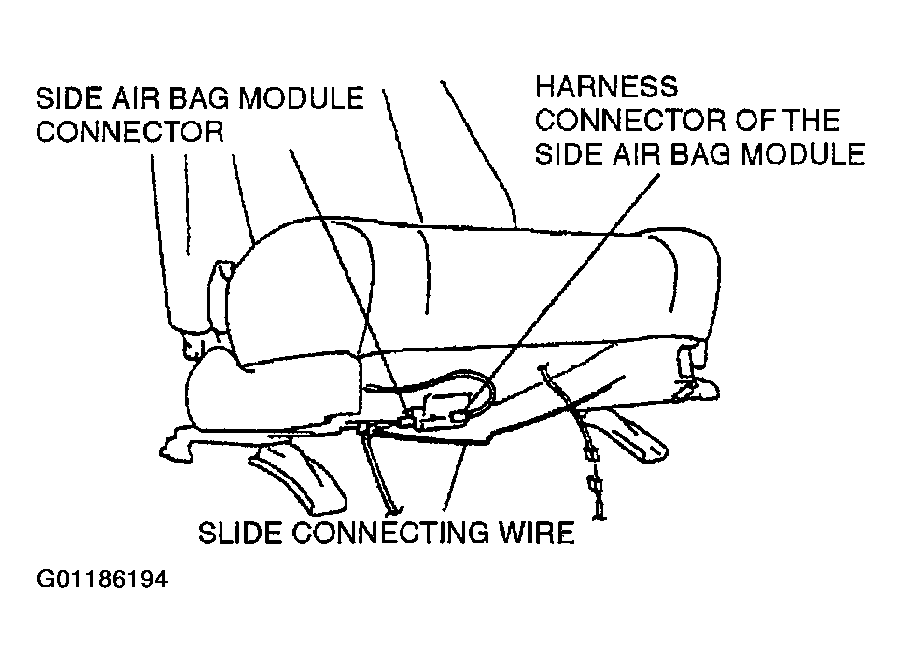

Fig 1: Identifying Side Air Bag Module Connector

Courtesy of MAZDA MOTORS CORP.
