Radiator Removal/Installation

  1. Disconnect the negative battery cable.
  2. Drain the engine coolant.
  3. Remove the fresh air duct.
  4. Remove in the order indicated in the illustration.

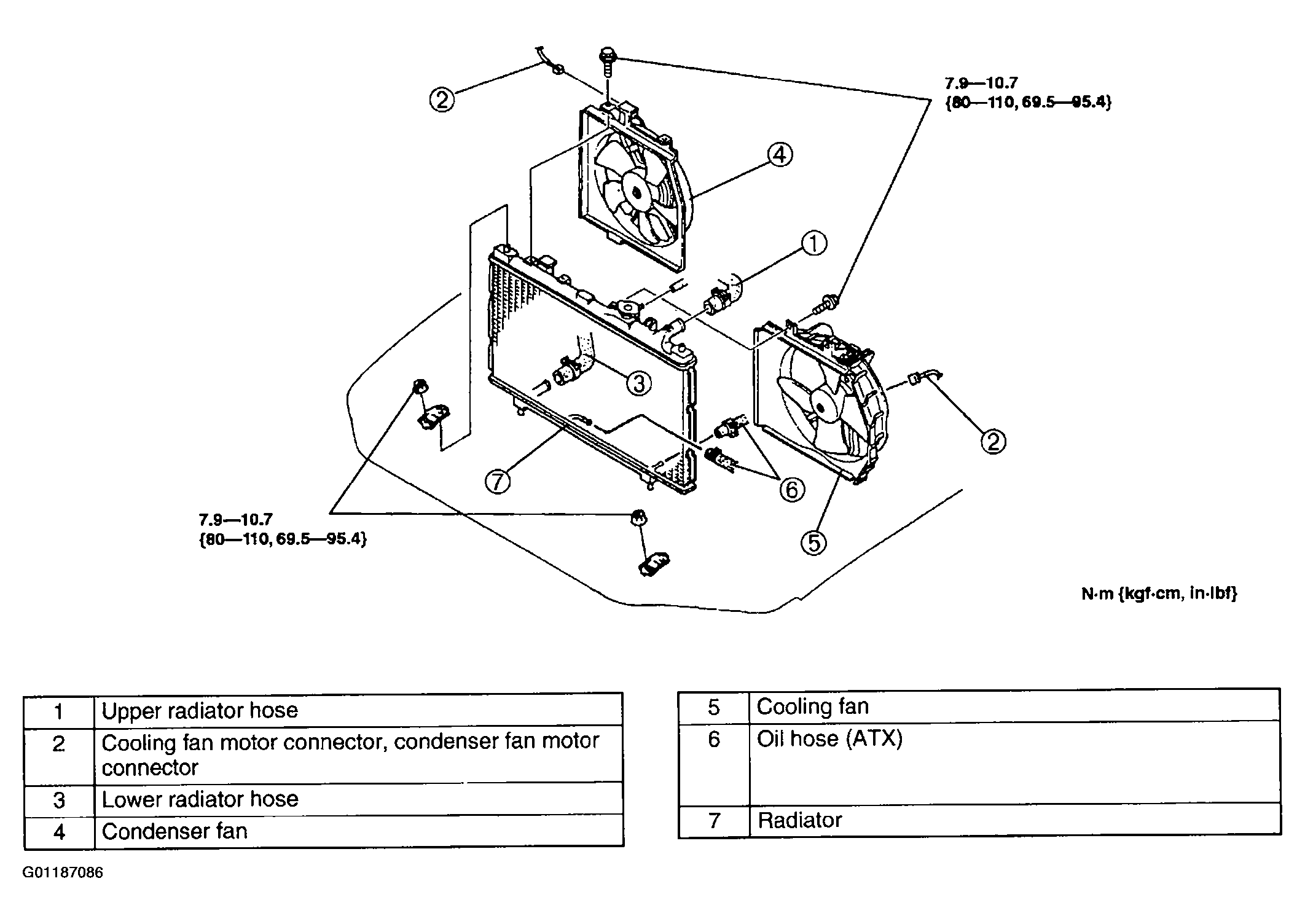

    Fig 1: Removing/Installing Radiator & Cooling Fans
    G01187086Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
