WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

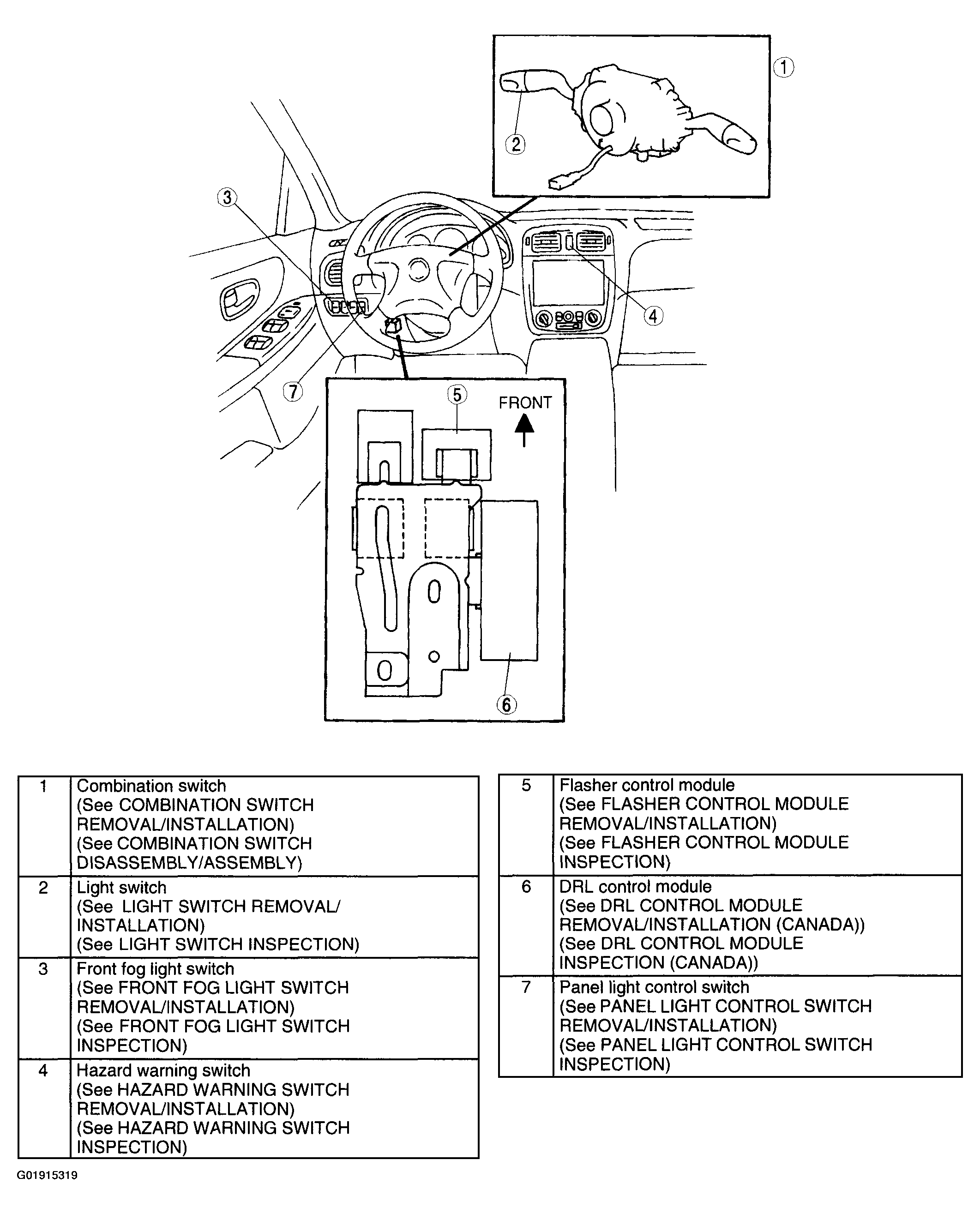

Fig 1: Lighting Systems Components Location Index (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

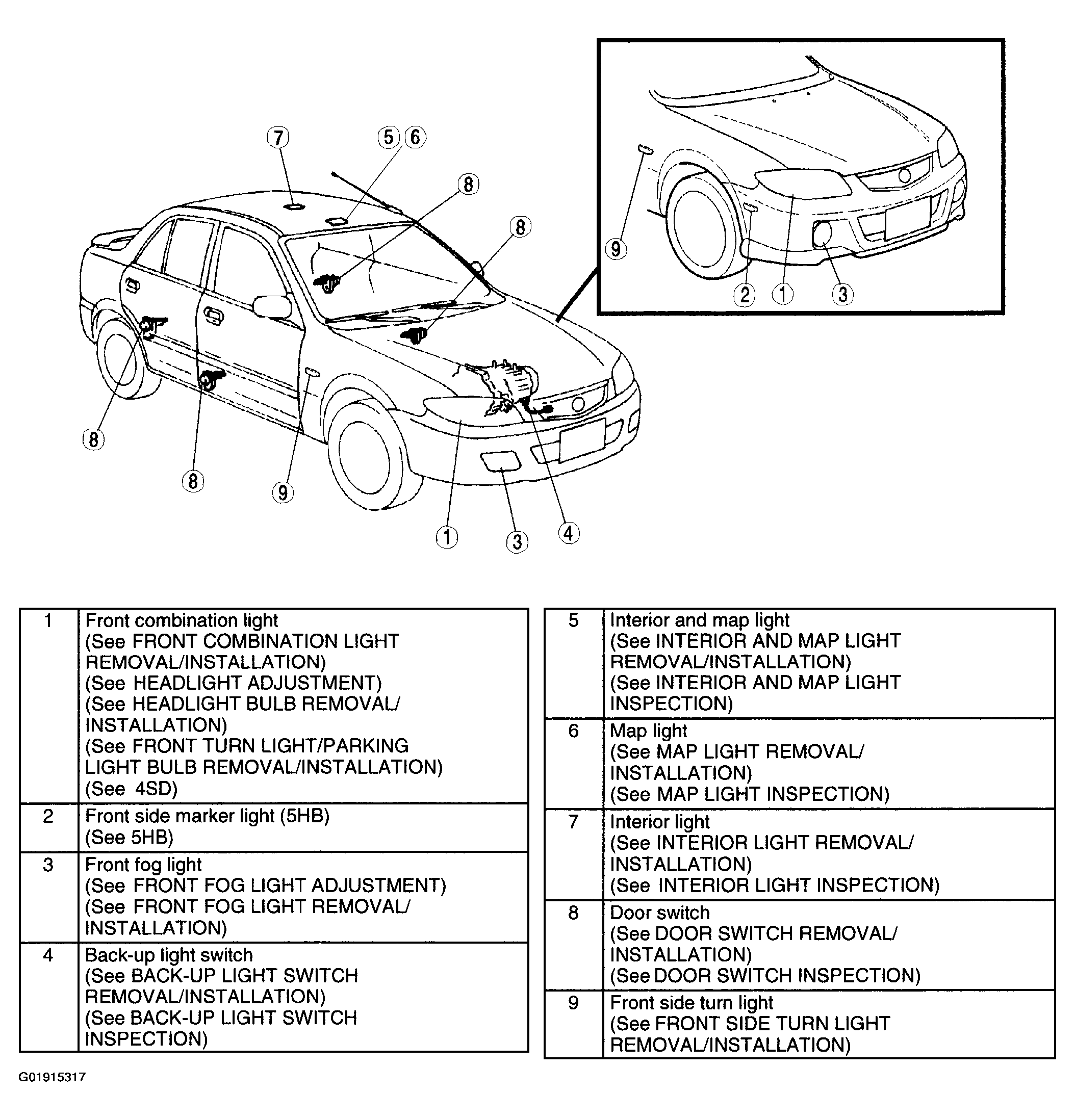

Fig 2: Lighting Systems Components Location Index (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

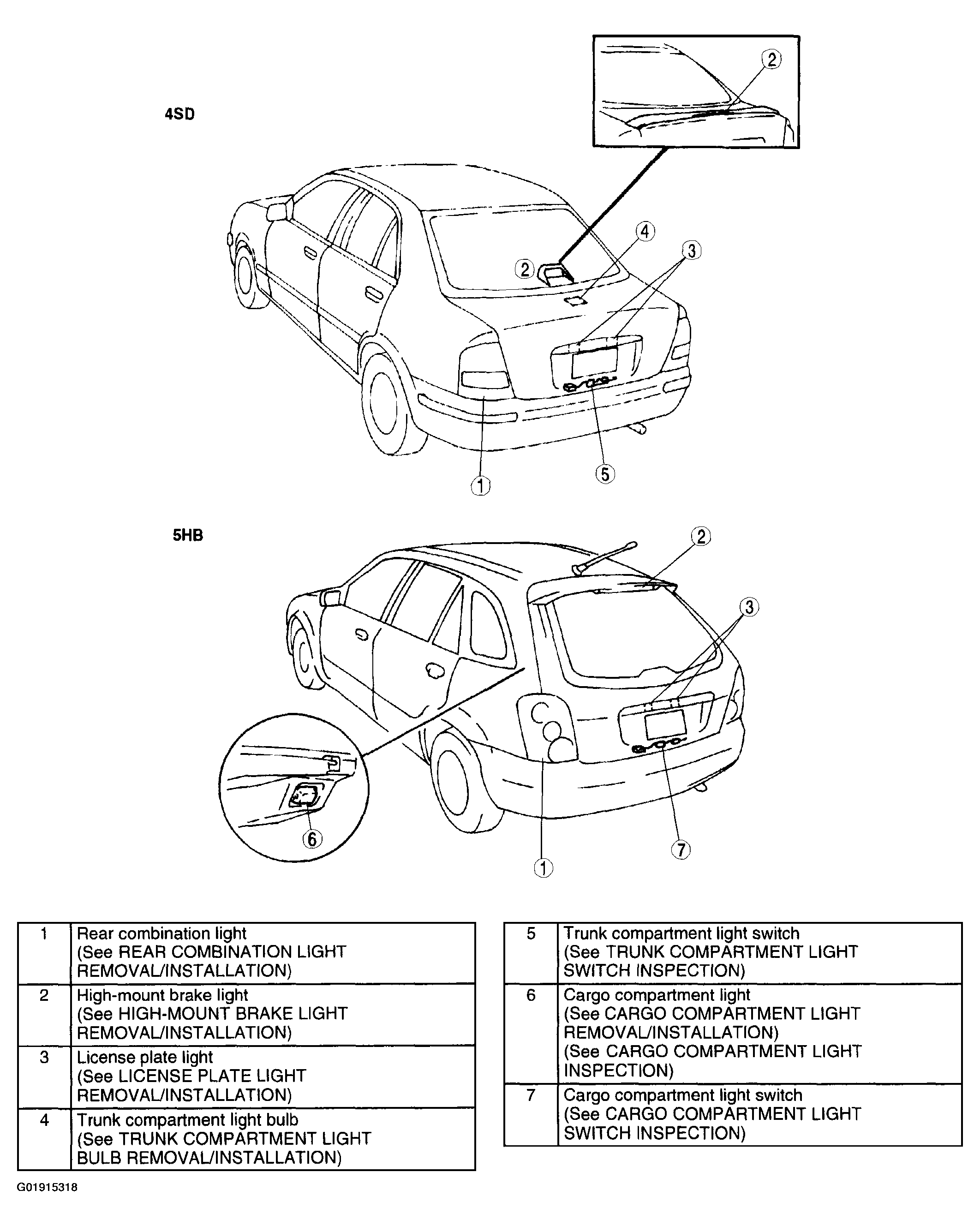

Fig 3: Lighting Systems Components Location Index (3 Of 3)
