Connector Locations

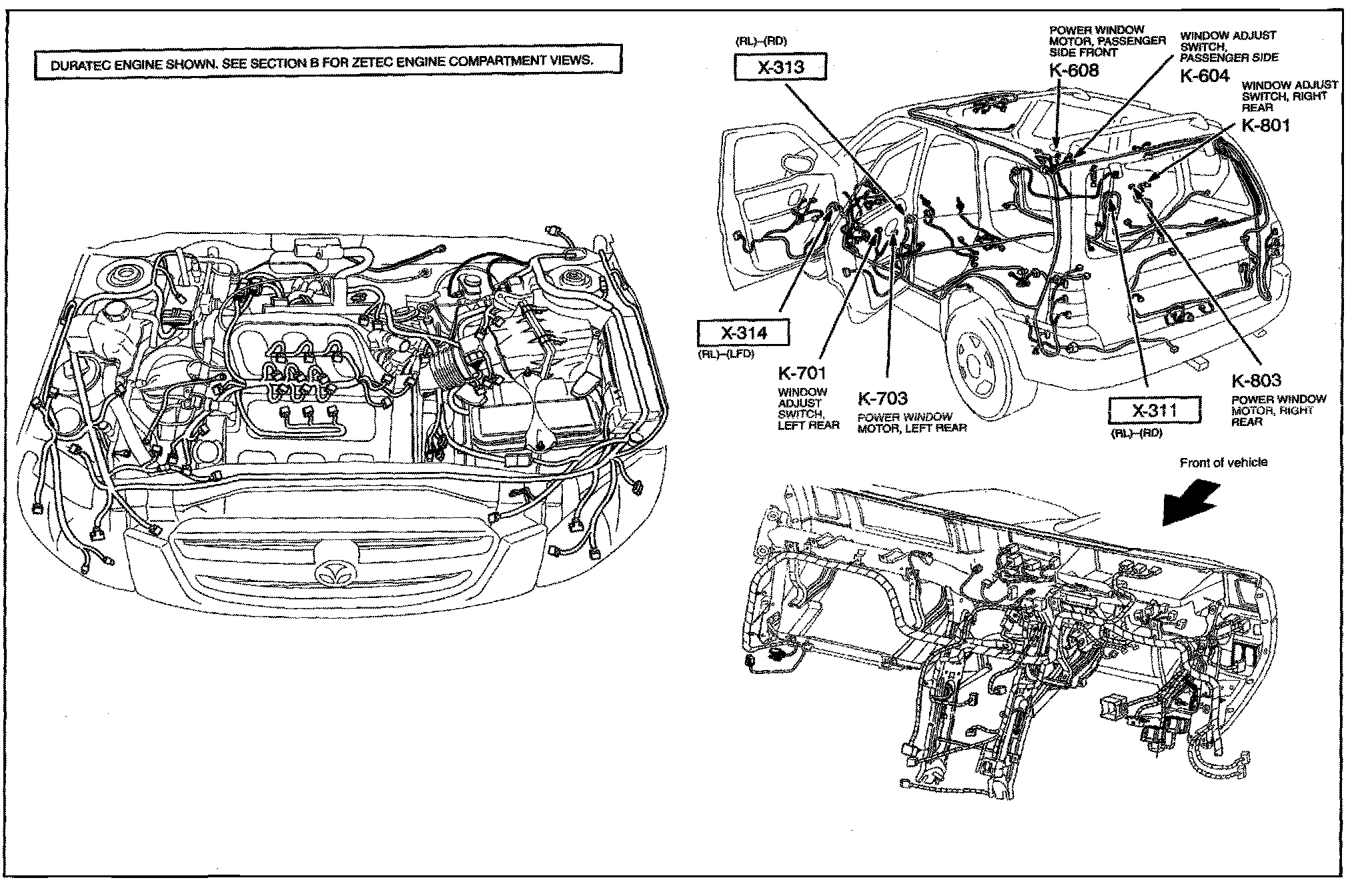

K-1a - Power Windows Harness/Connector Symbols:

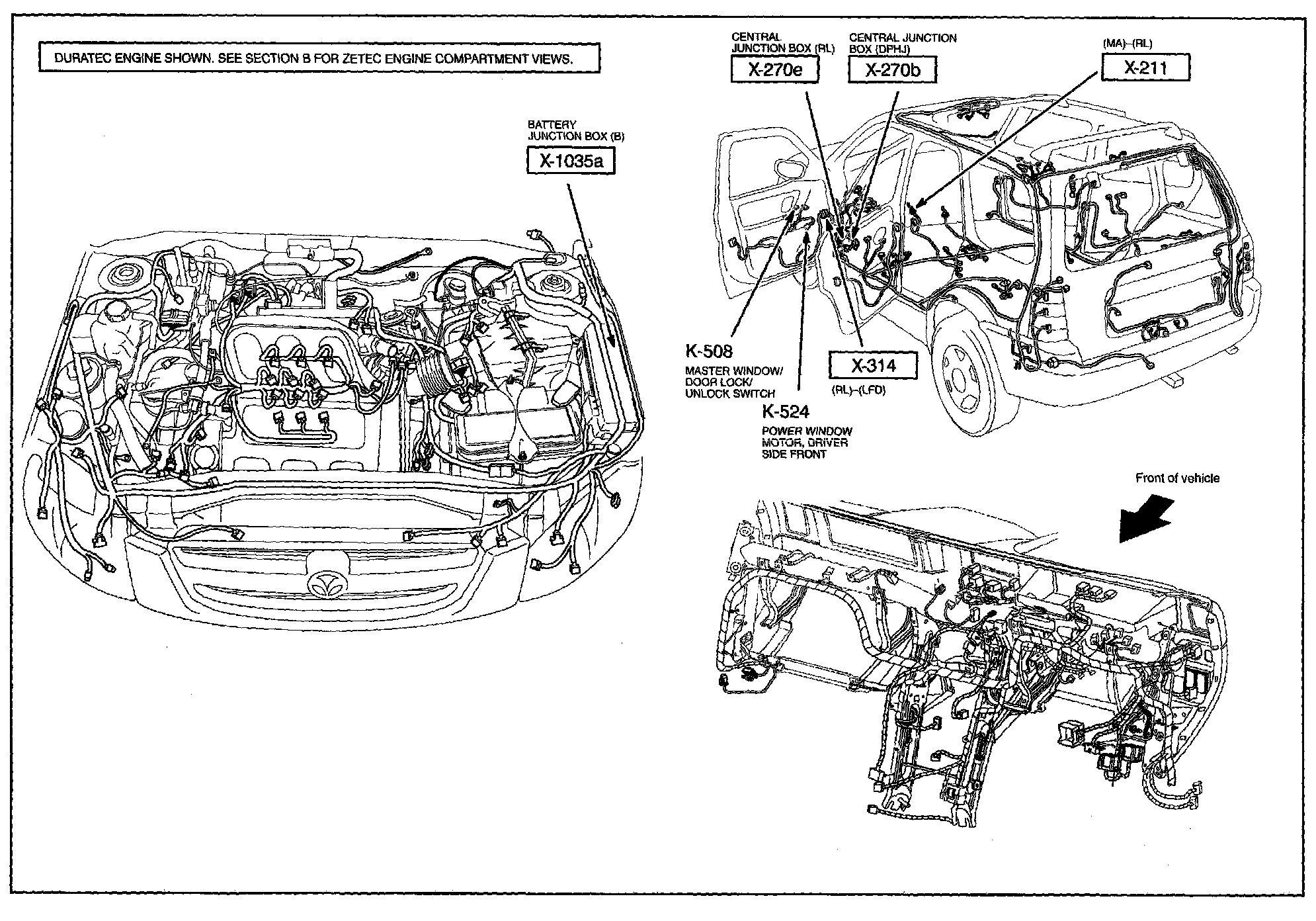

K-1b - Power Windows Harness/Connector Symbols:
