Connector Locations

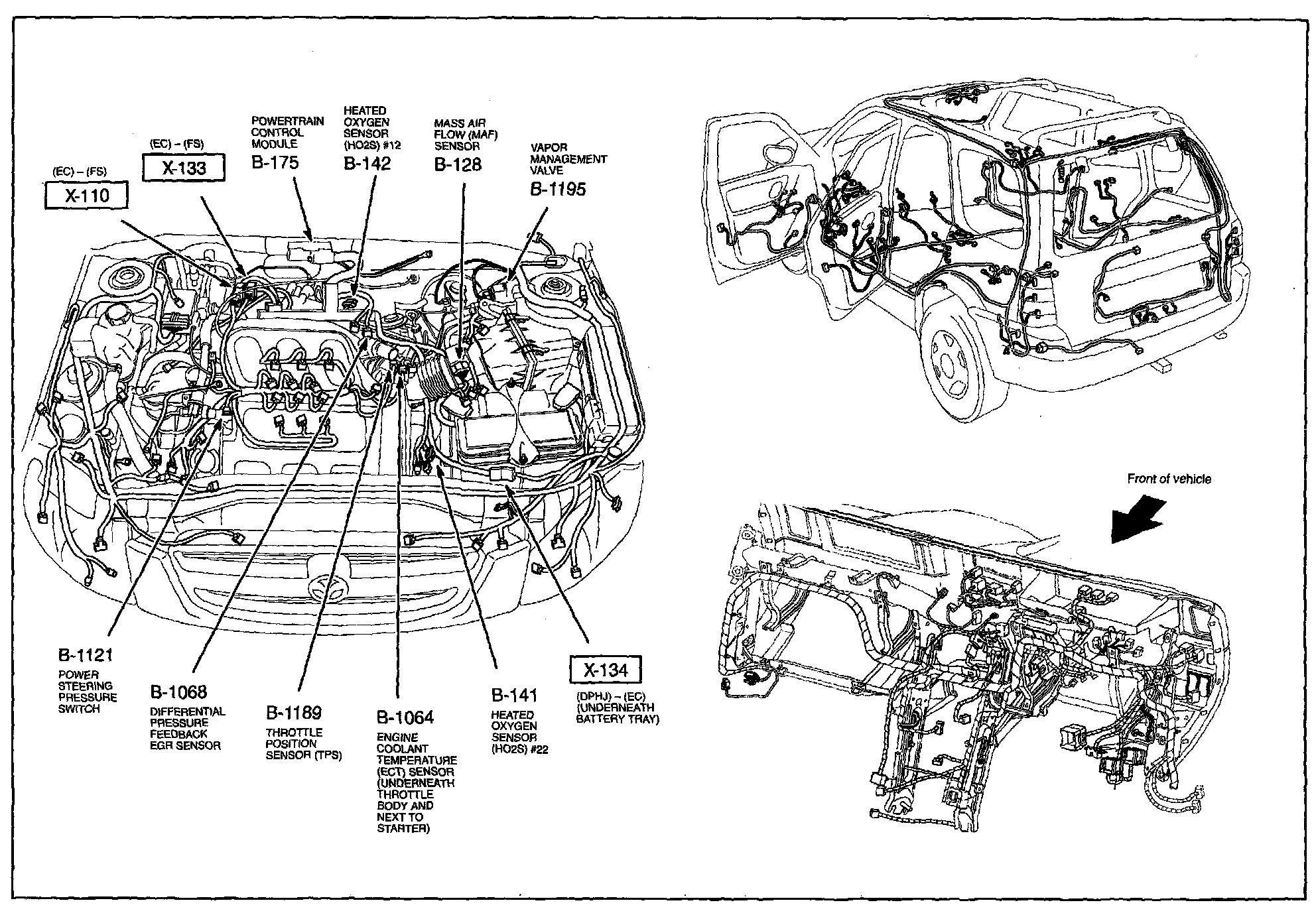

B-2a - Engine Control System Harness/Connector Symbols:

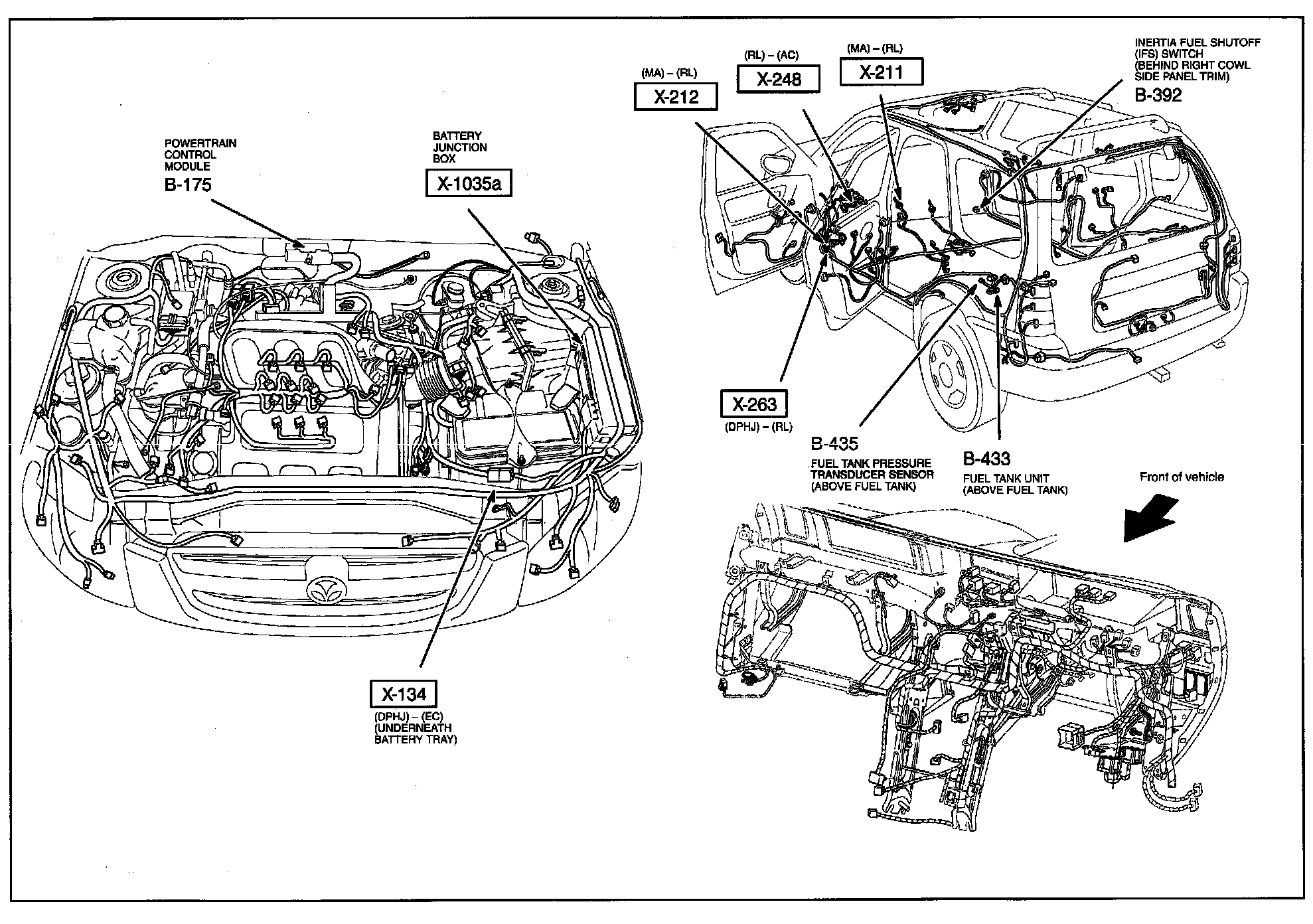

B-2b - Engine Control System Harness/Connector Symbols:

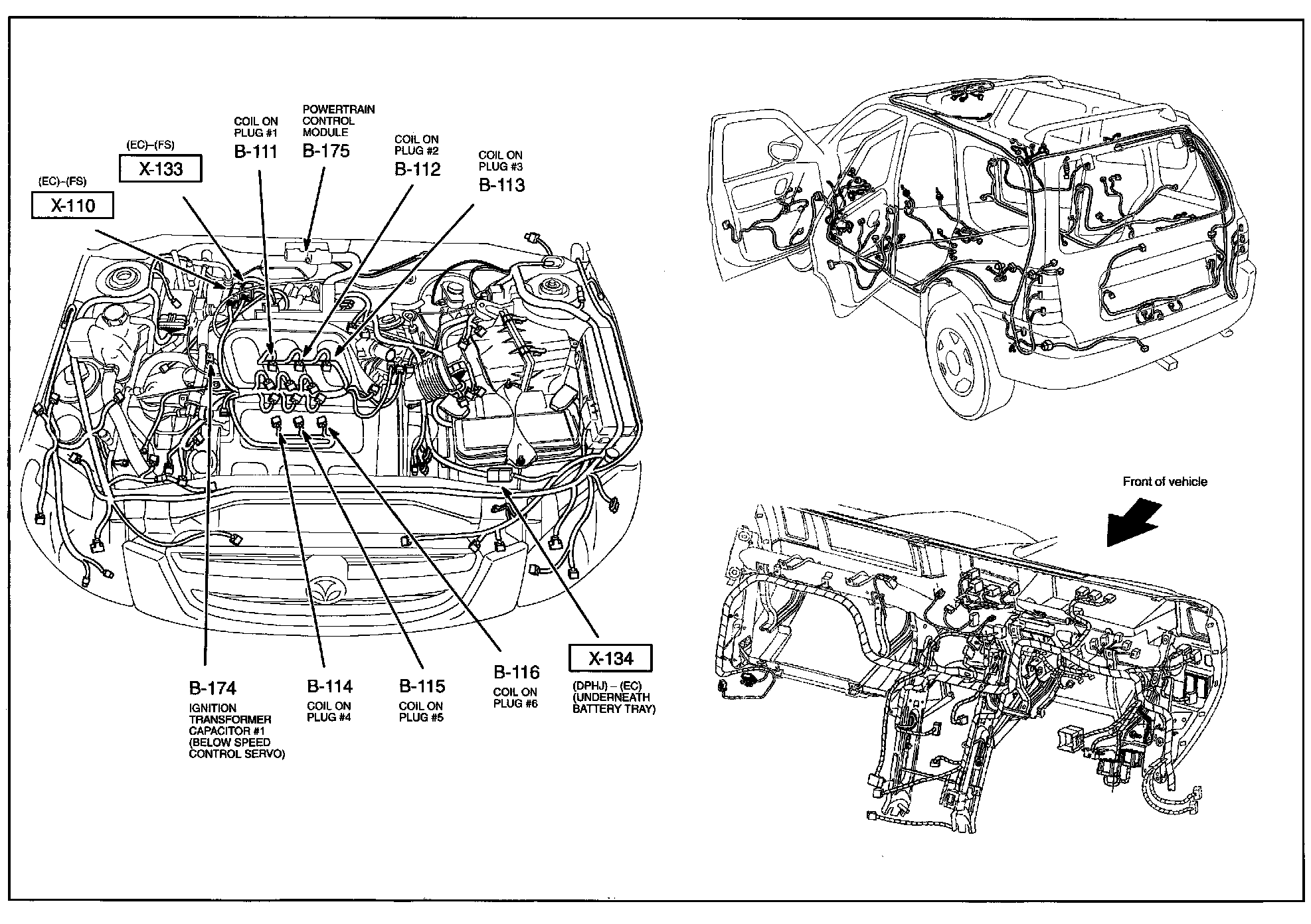

B-2c - Engine Control System Harness/Connector Symbols:

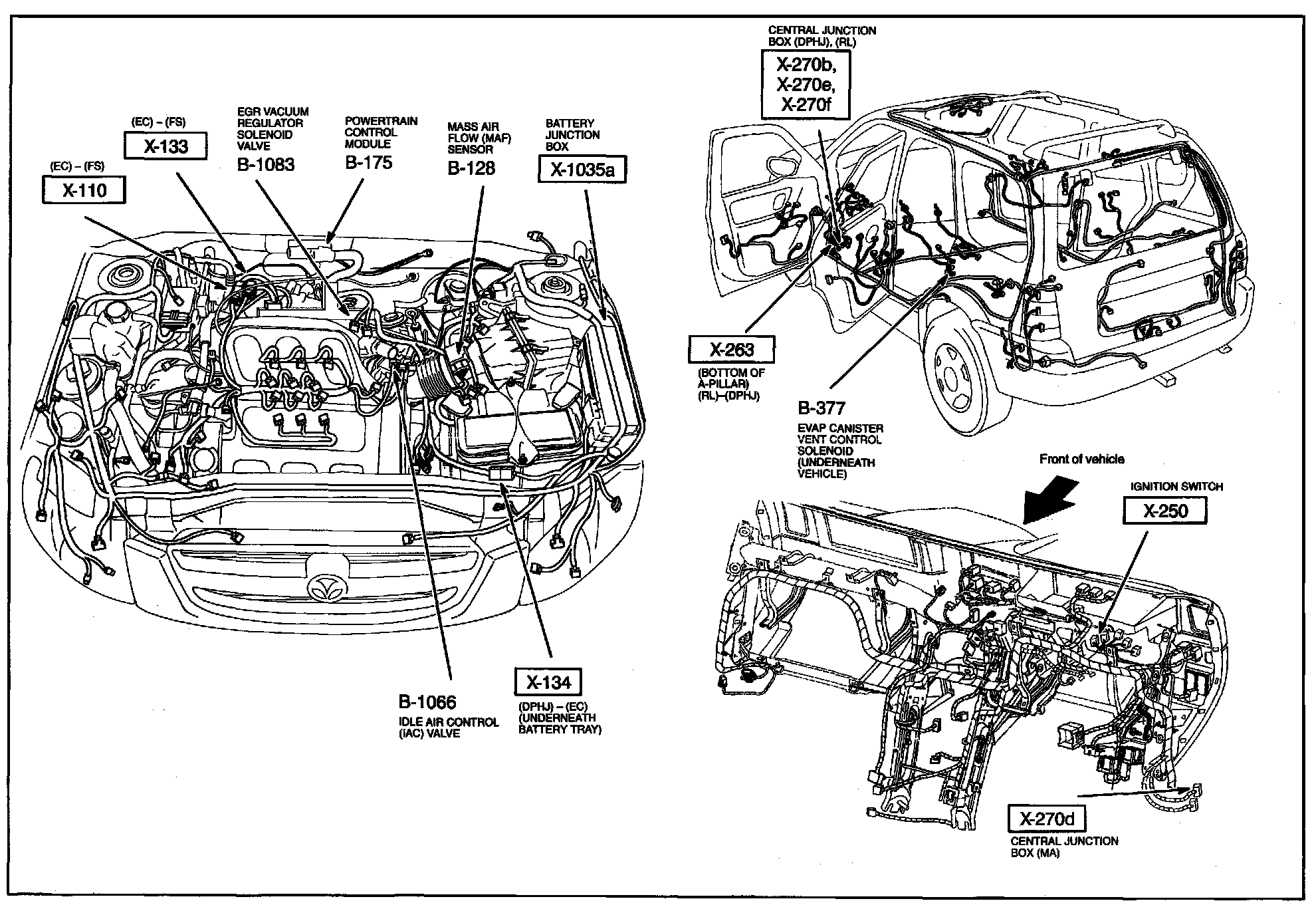

B-2d - Engine Control System Harness/Connector Symbols:

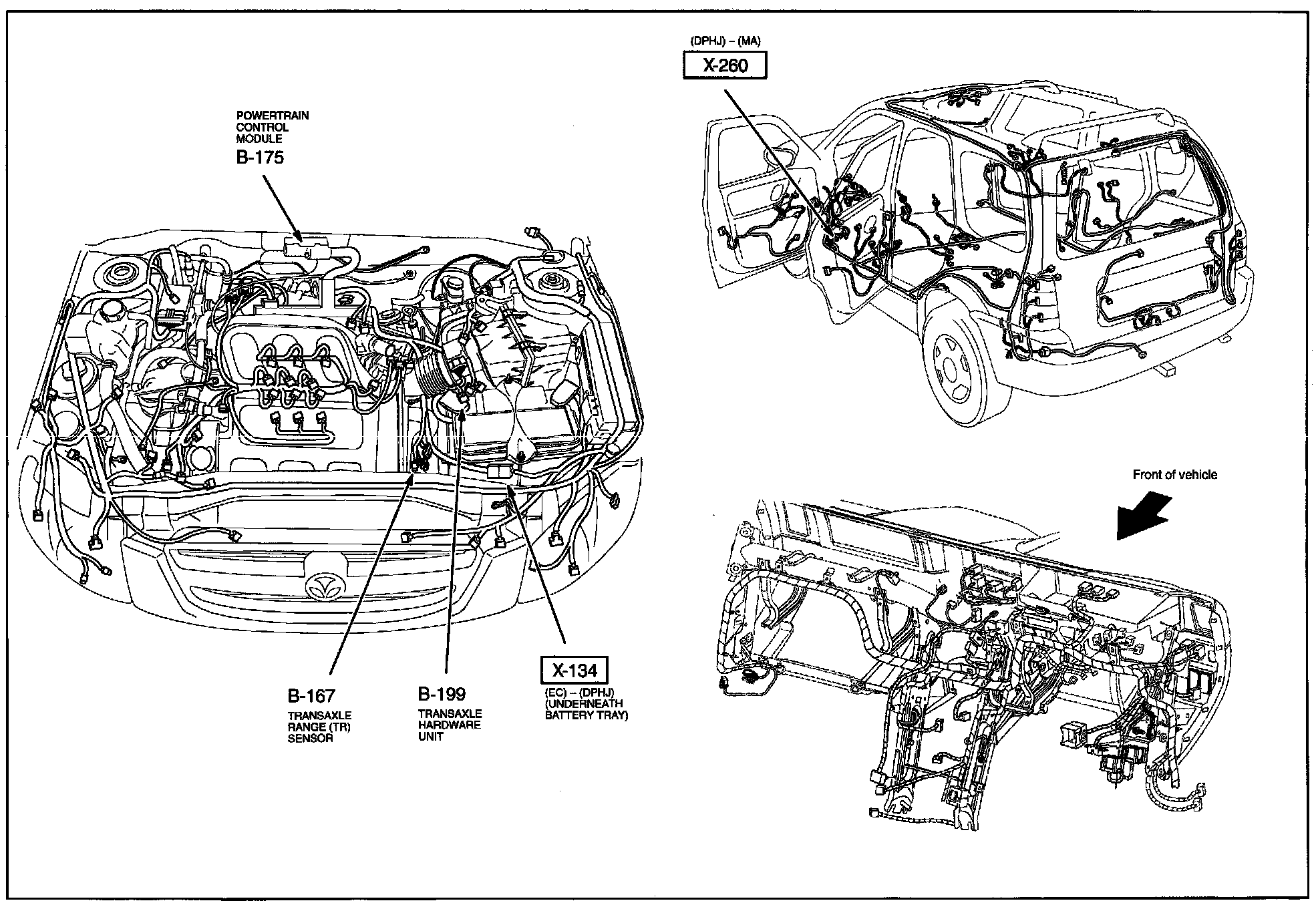

B-2e - Engine Control System Harness/Connector Symbols:

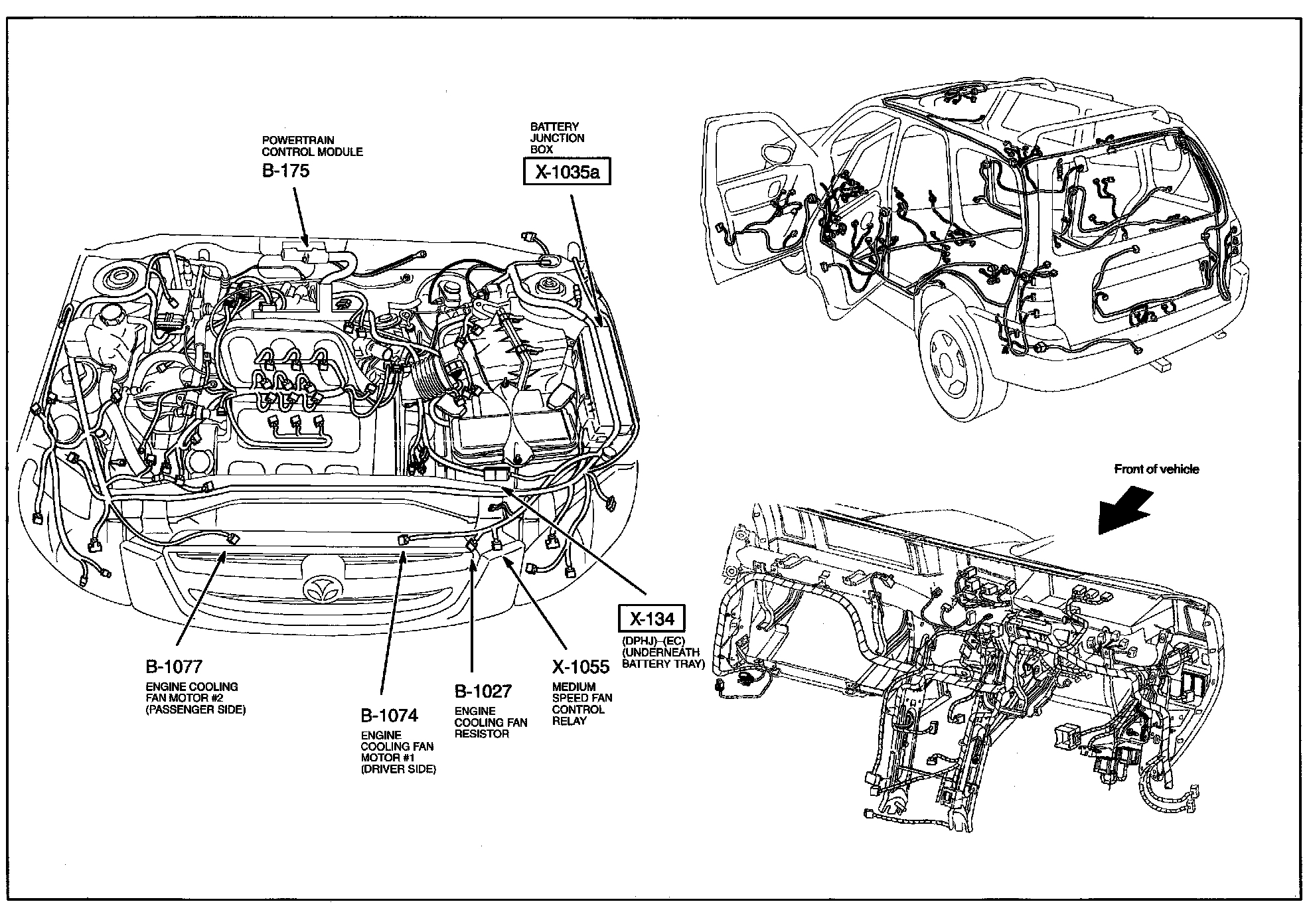

B-2f - Engine Control System Harness/Connector Symbols:

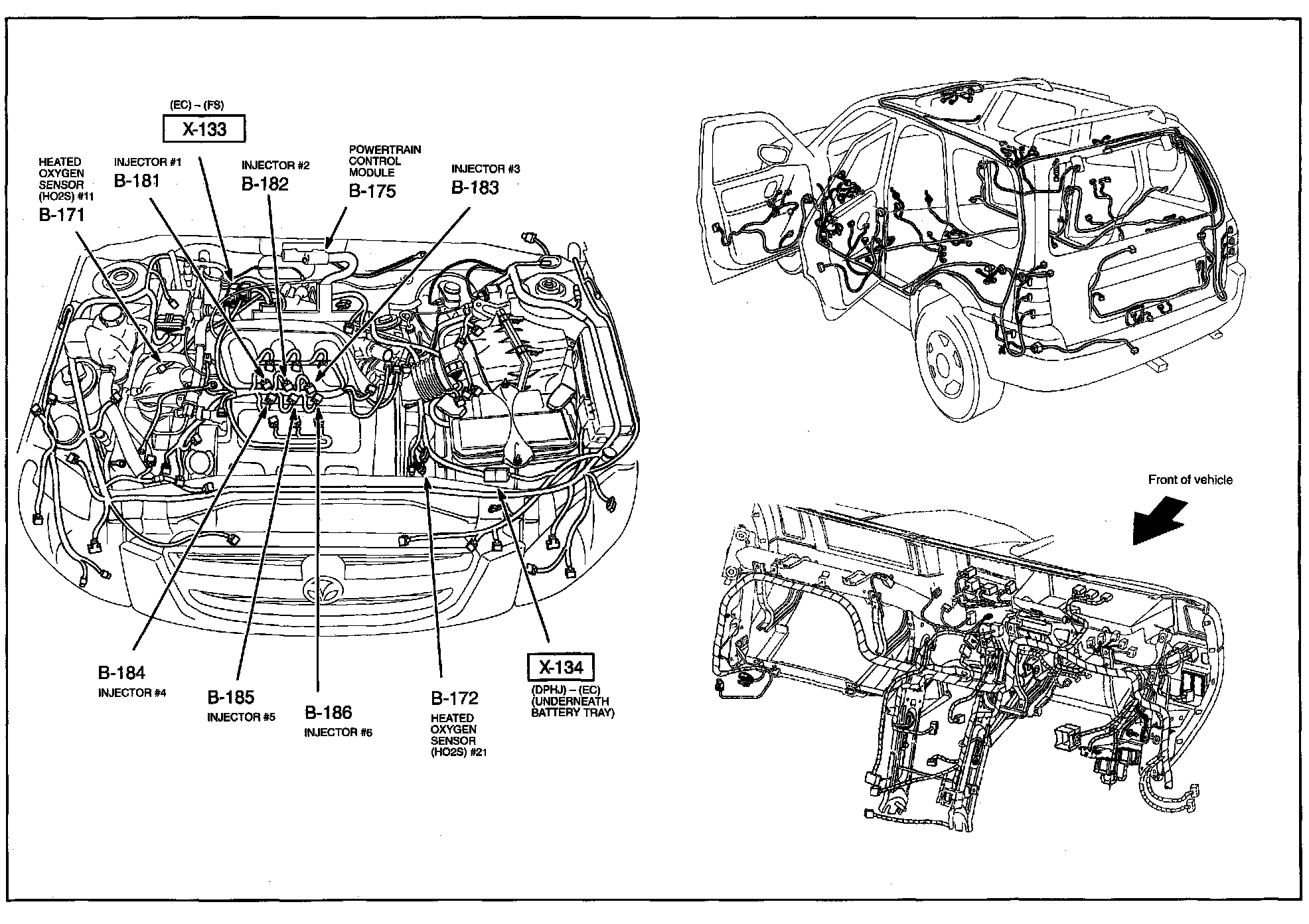

B-2g - Engine Control System Harness/Connector Symbols:

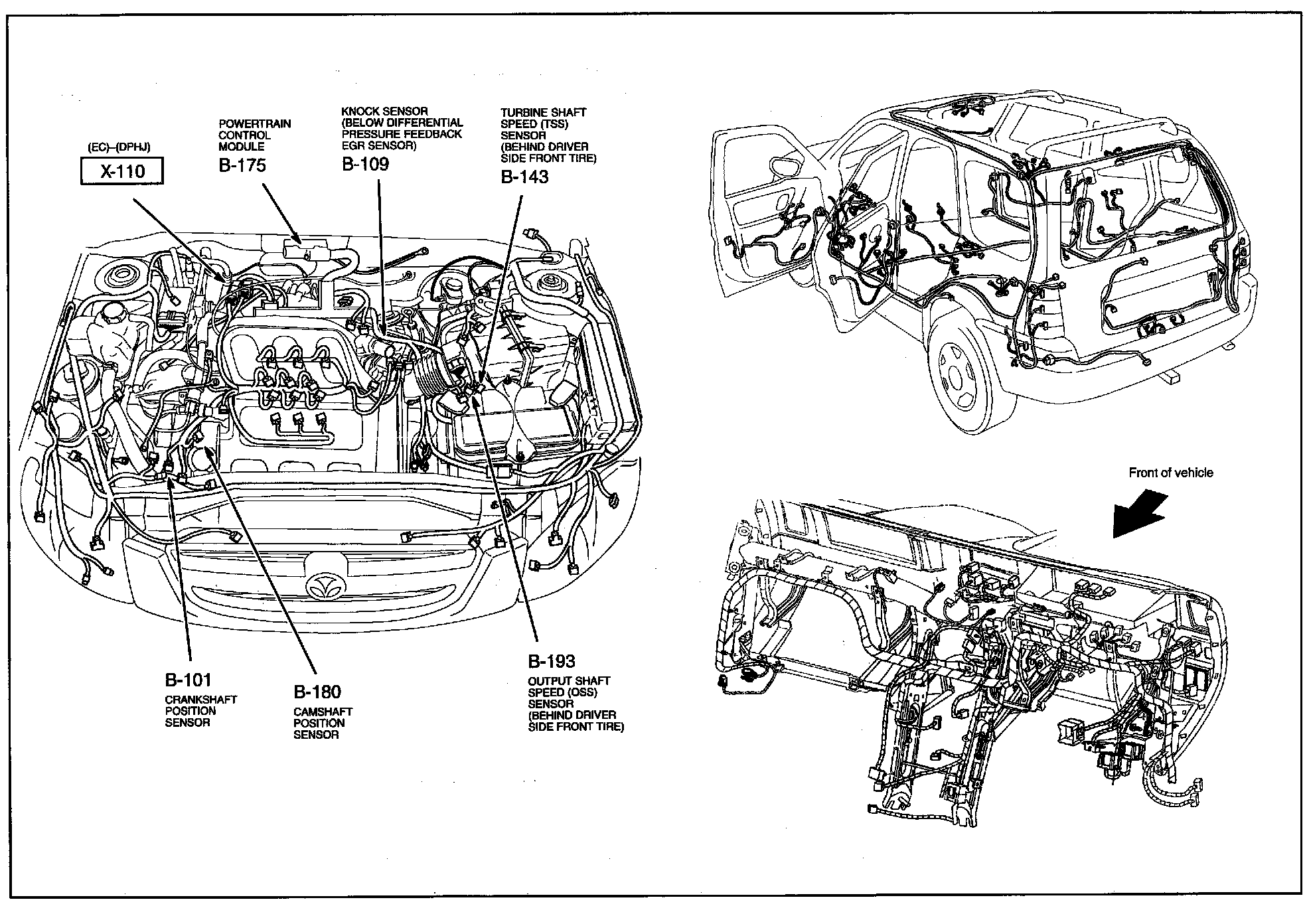

B-2h - Engine Control System Harness/Connector Symbols:
