Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship

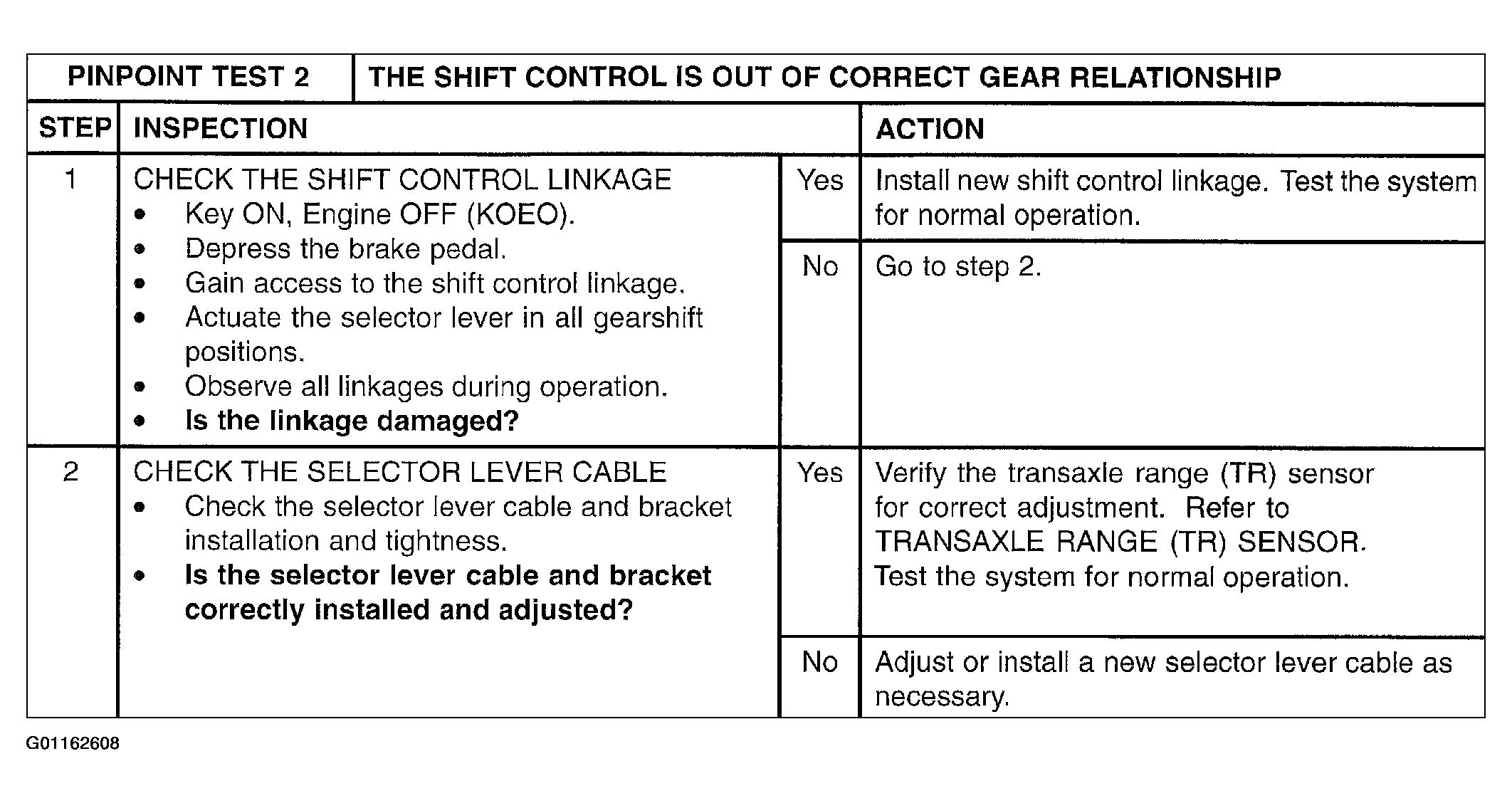

Fig 1: Pinpoint Test 2: The Shift Control Is Out Of Correct Gear Relationship
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
