Theft-Deterrent System

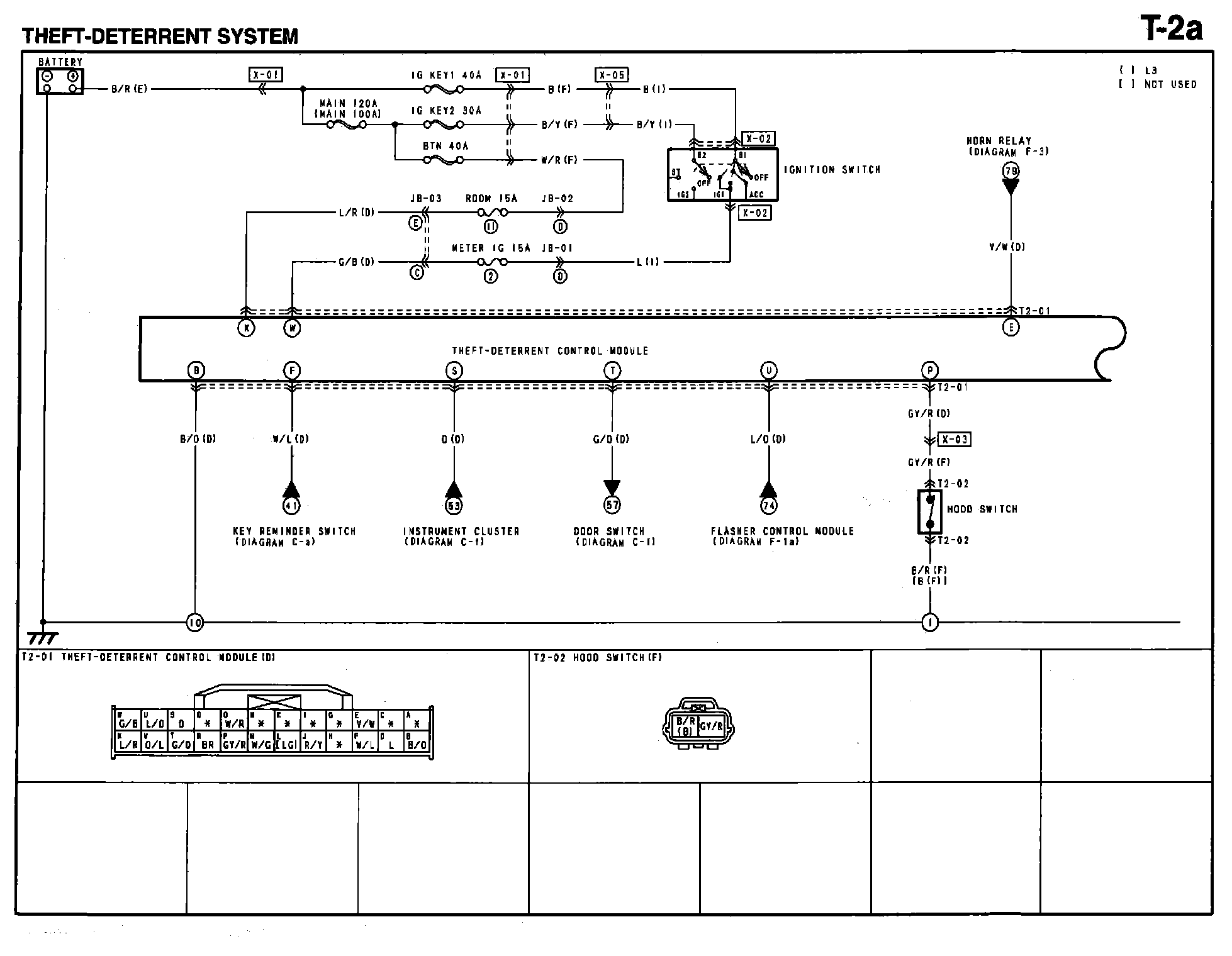

Diagram T-2a:
Routing View T-2a:

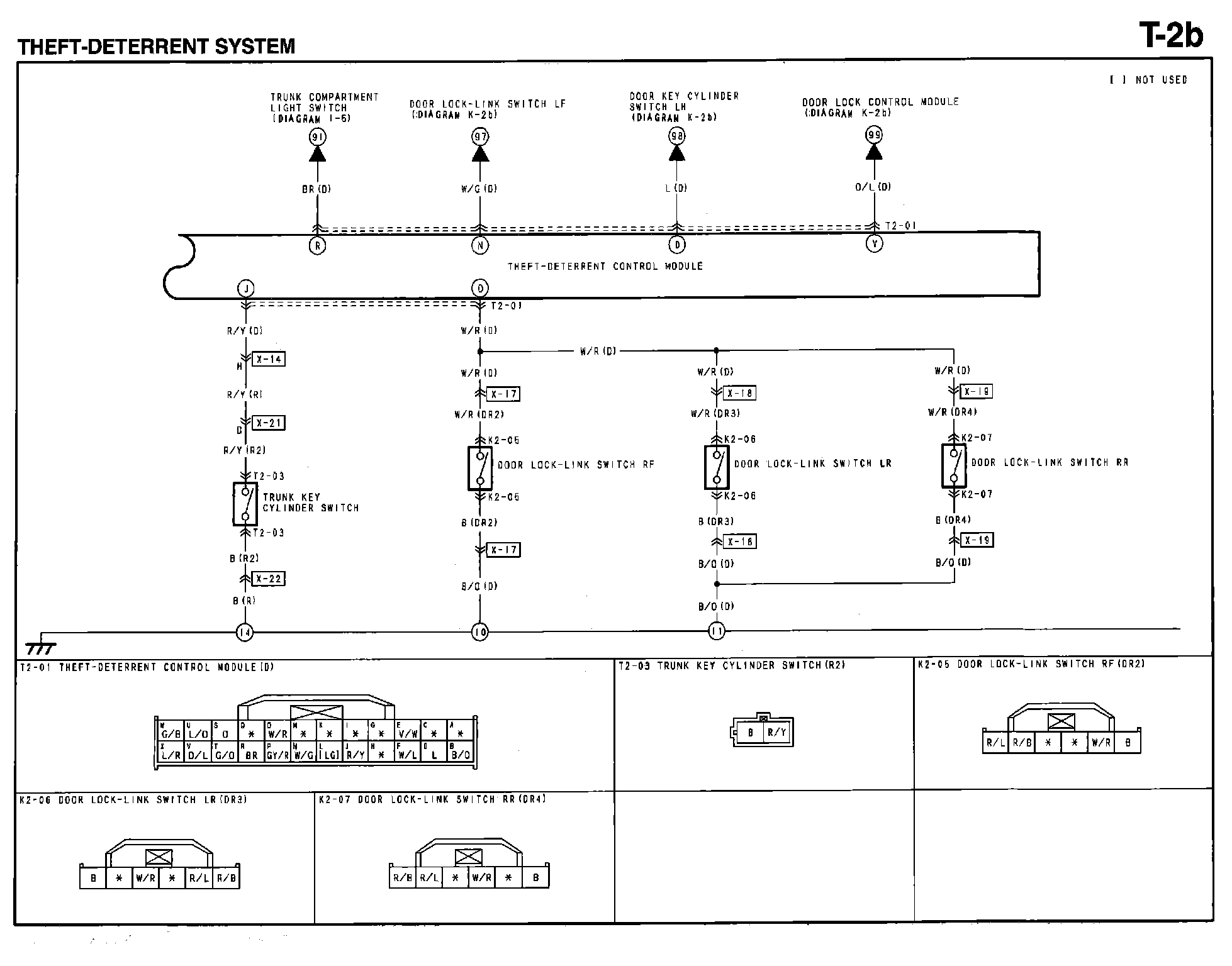

Diagram T-2b:
Routing View T-2b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
