Cabin Air Filter / Purifier: Service and Repair

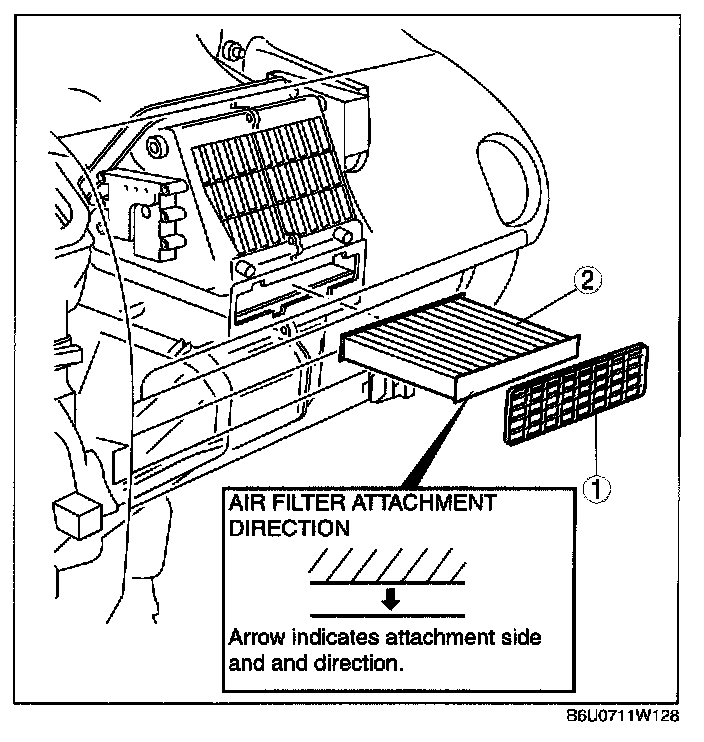

AIR FILTER REMOVAL/INSTALLATION

1. Remove the glove compartment.







2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
