Starter Removal/Installation

STARTER REMOVAL/INSTALLATION

WARNING: When the battery cables are connected, touching the vehicle body with starter terminal B generates sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.

1. Disconnect the negative battery cable.
2. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
3. Remove the under cover.
4. Remove the clutch release cylinder.

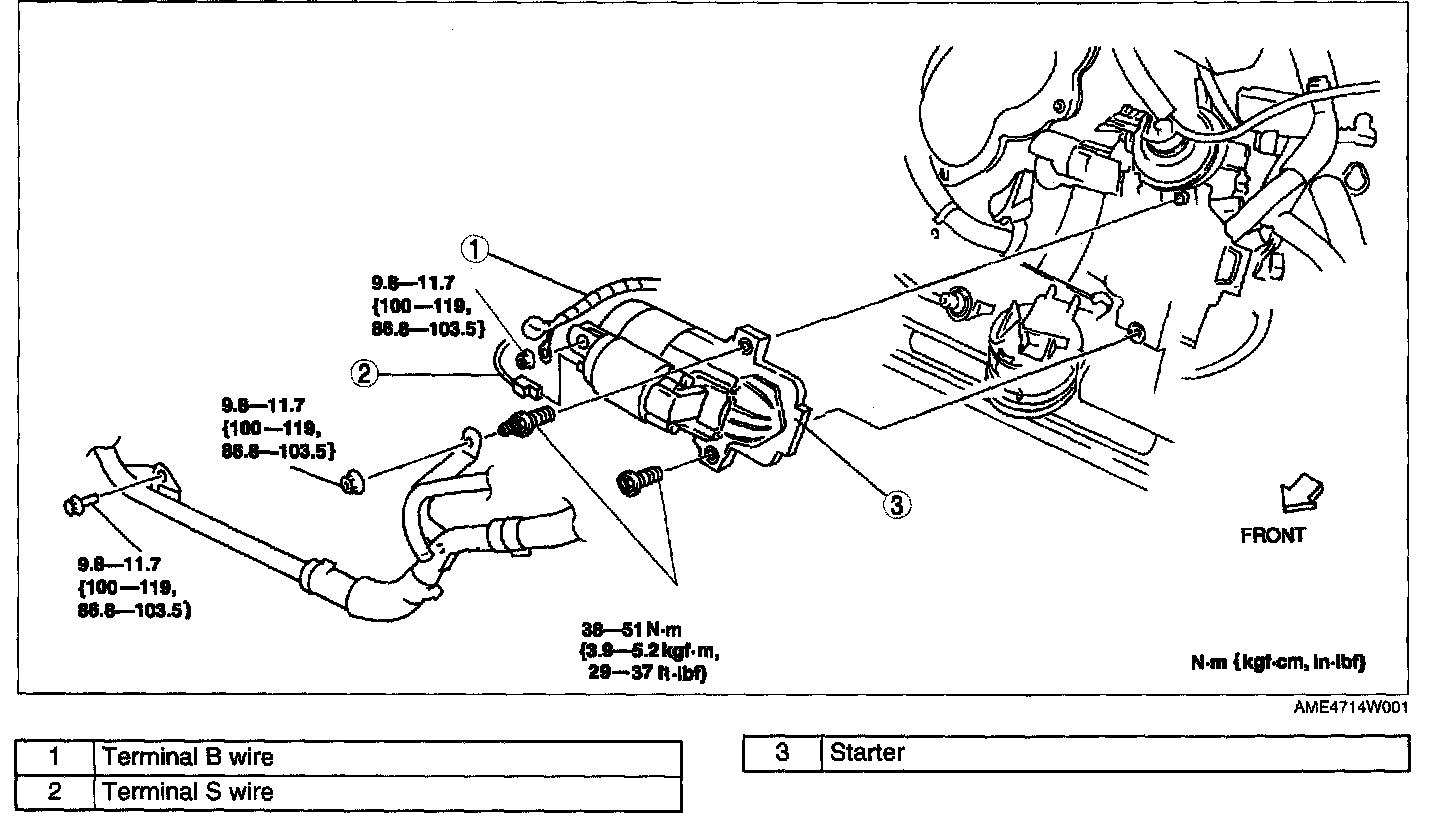

5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
