3RD Gear Assembly Note

3rd Gear Assembly Note

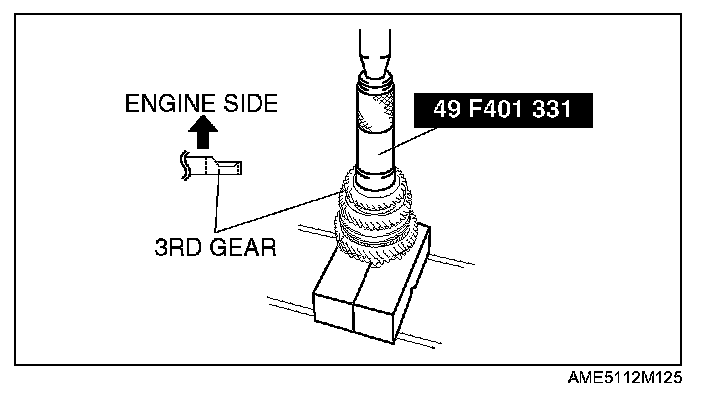

1. Place a new 3rd gear in the direction as shown in the figure.





2. Install the 3rd gear using the SST.
