Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Keyless Entry System Wiring Diagram

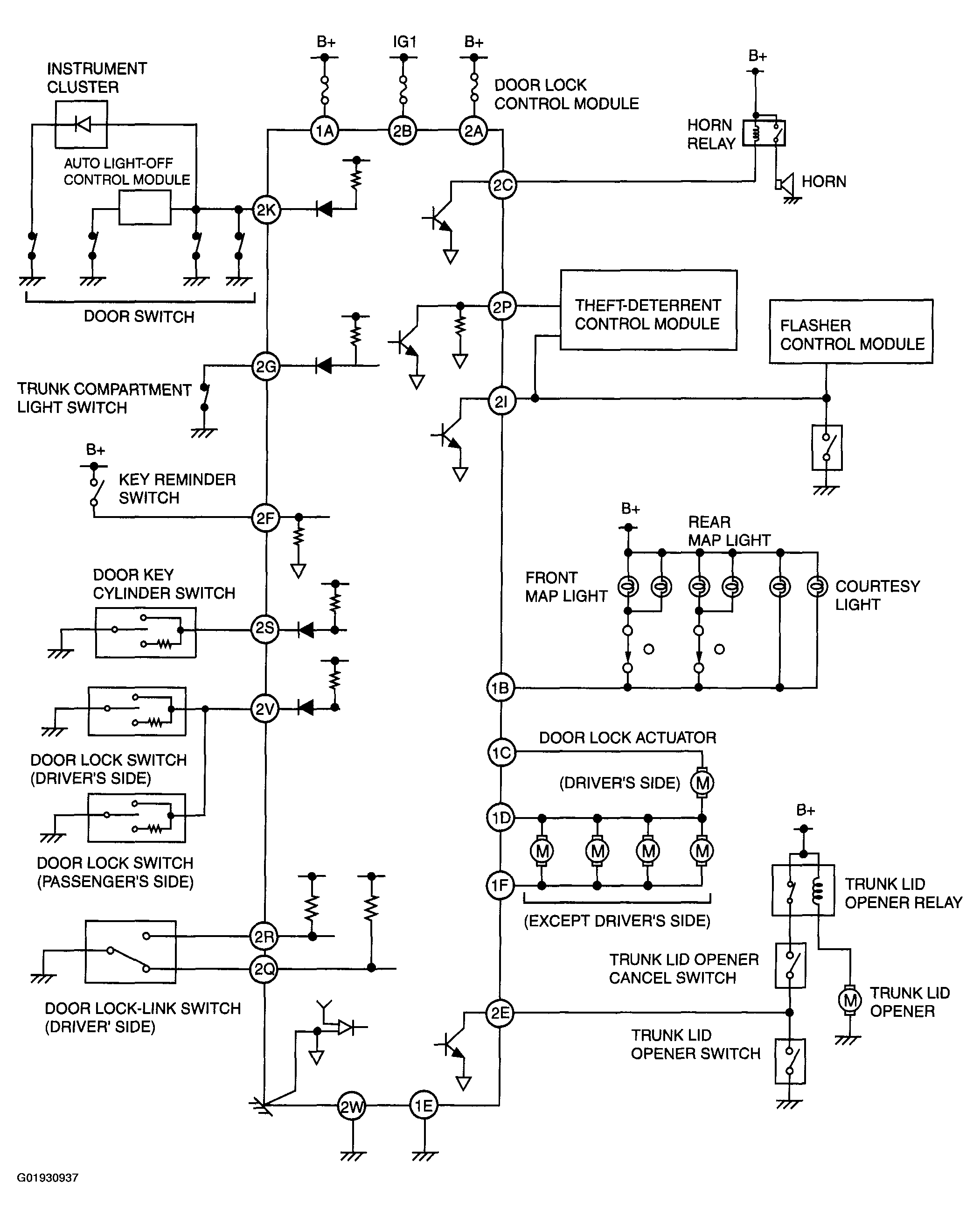

Fig 1: Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
