Manual Transaxle Installation Note

Set the transaxle on a jack and lift into place.

Fig 1: Installing Transaxle
Courtesy of MAZDA MOTORS CORP.
Install the transaxle mounting bolts.
Install the stud of the No.4 engine mount.
1. Tightening torque
2. 27.4-40.2 N.m {2.8-4.0 kgf.m, 20.2-29.6 ft.lbf}

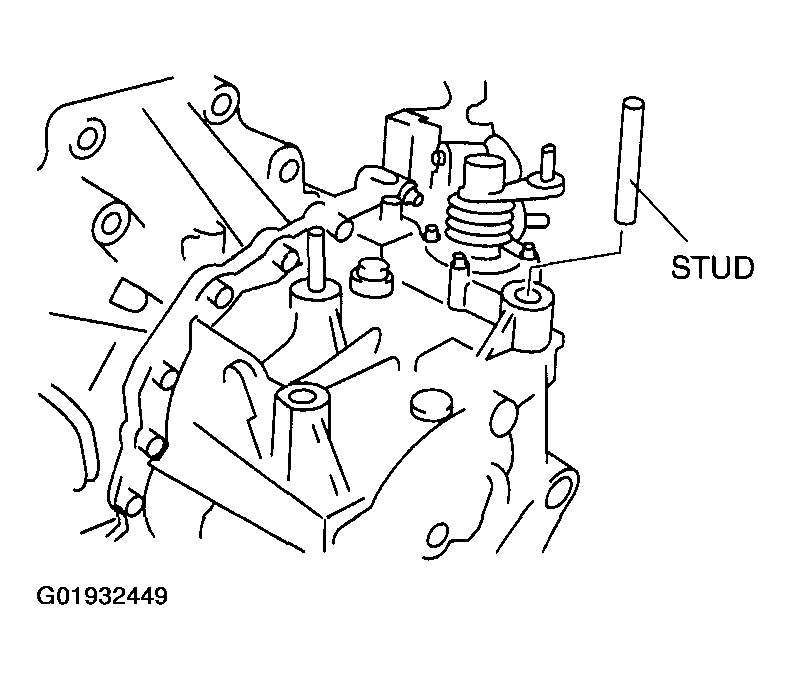

Fig 2: Installing Stud Of No.4 Engine Mount
Courtesy of MAZDA MOTORS CORP.
Tighten the SST (49 E017 5A0)so that the engine is located at the specified position.
