3RD/4TH Clutch Hub Set Assembly Note

NOTE:
  • Align the synchronizer ring grooves with the synchronizer key during assembly.
  1. Install the 3rd/4th clutch hub set using the SSTs  .

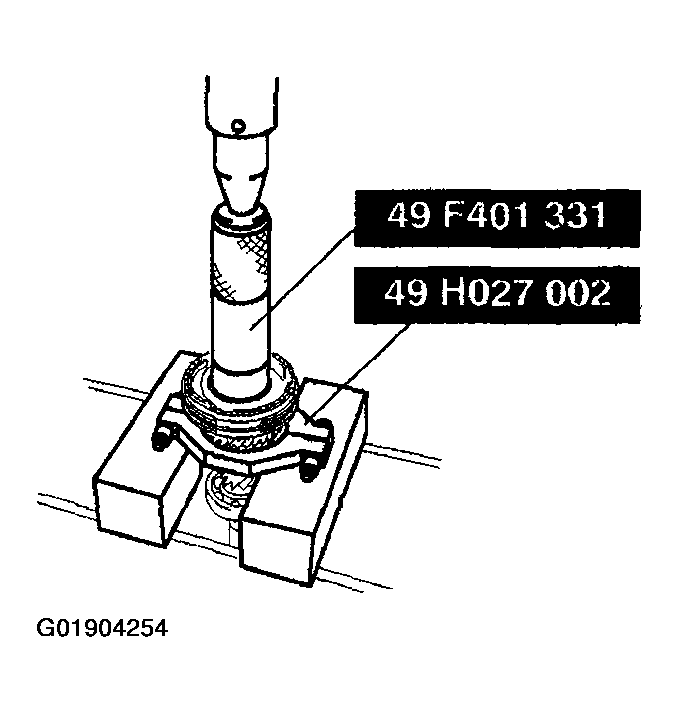

Fig 1: Installing 3rd/4th Clutch Hub Set
G01904254Courtesy of MAZDA MOTORS CORP.
