5TH Bushing Assembly Note
Install a new 5th bushing using the
SSTs
.

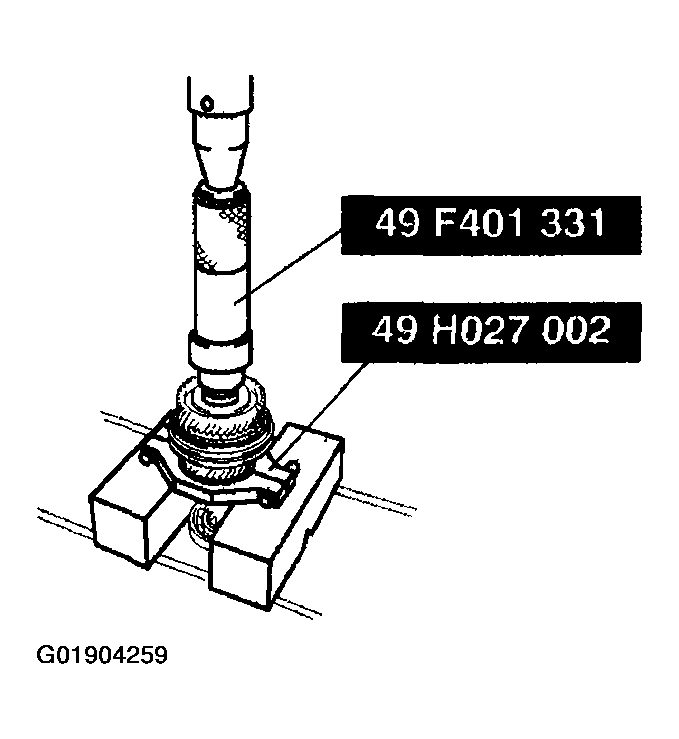

Fig 1: Installing 5th Bushing
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
