1ST/2ND Clutch Hub Set Assembly Note

    NOTE:
    • Align the synchronizer ring grooves with the synchronizer key during assembly.
  1. Install the 1st/2nd clutch hub set using the SSTs  .

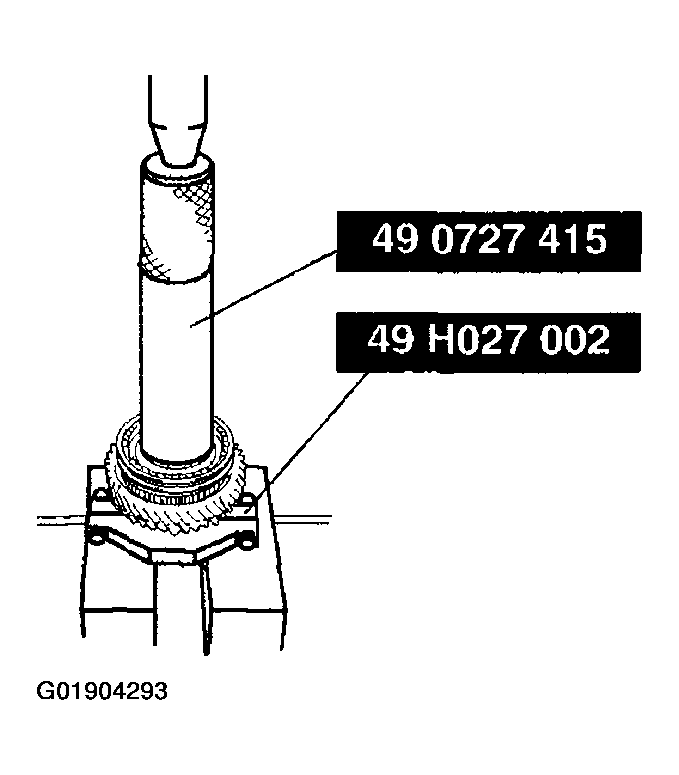

Fig 1: Installing 1st/2nd Clutch Hub Set
G01904293Courtesy of MAZDA MOTORS CORP.
